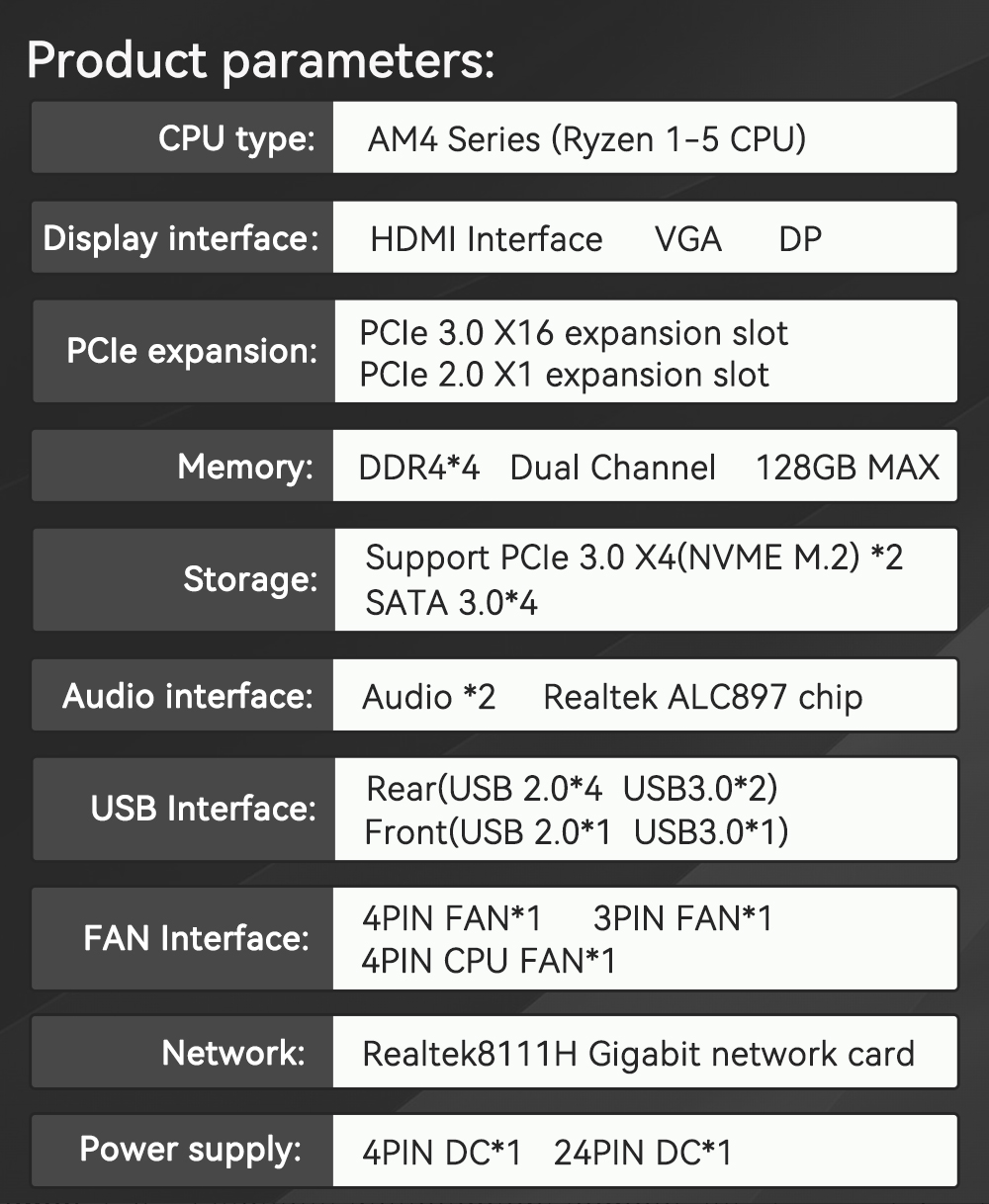

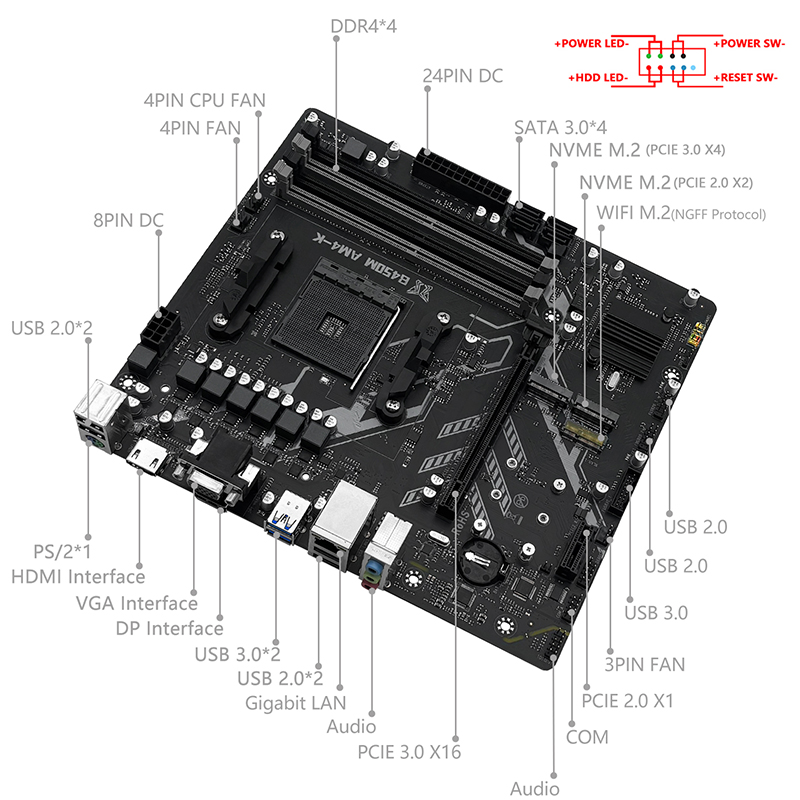

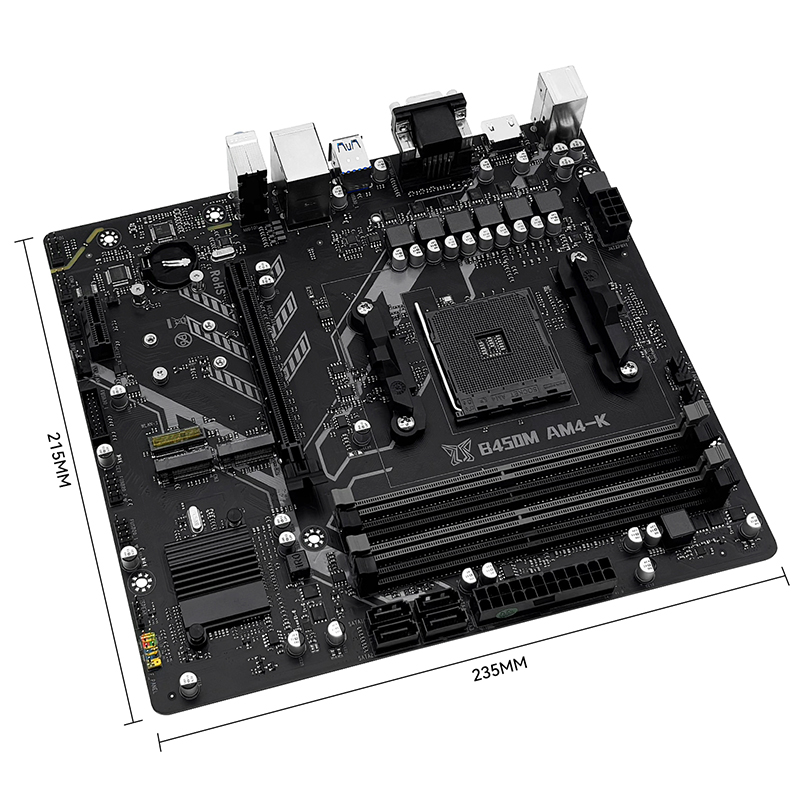

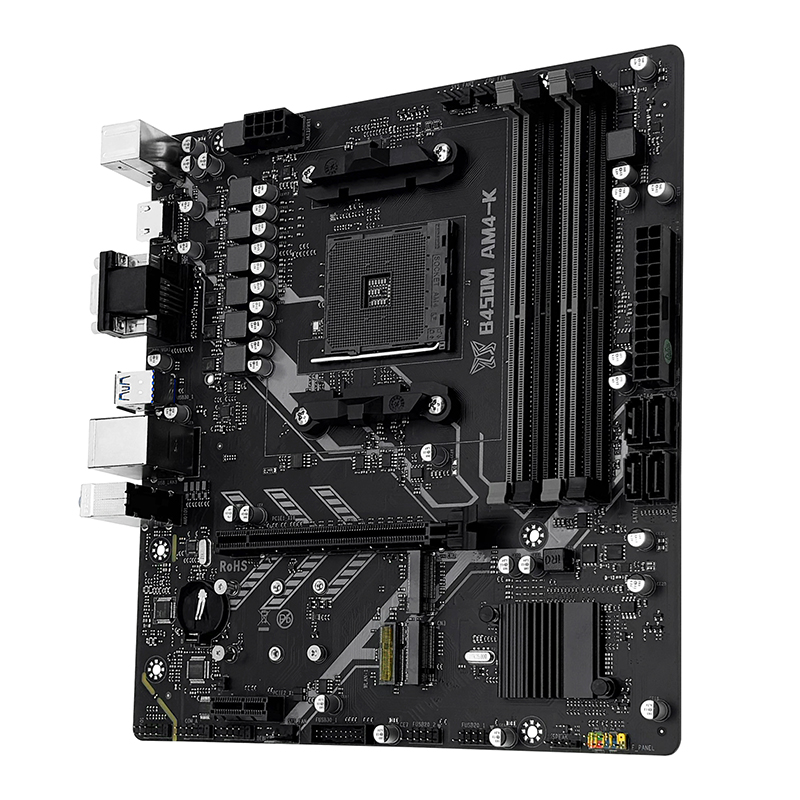

Size: M-ATX，  215mm*235mm

Chip:  AMD B450

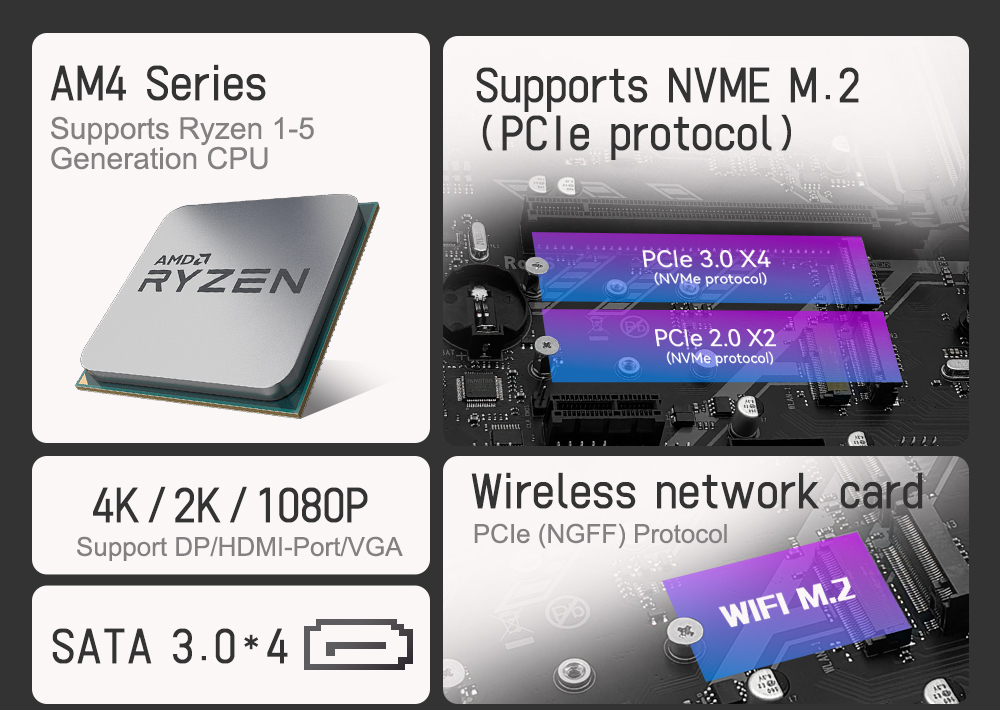

CPU Type: AM4 series（Ryzen 1st-5th generation processors）

Safe boot: Support

Chinese/English Switching: Support

Diskless Boot: Support

Fan Speed Modification: Support

Incoming call self-start: Support

PBO/CPU overclocking: Support

XMP: Support XMP2.0

Timer boot: Support

Wake on Network: Support

TPM: Support TPM 2.0

Display Interface: DP,   HDMI,   VGA

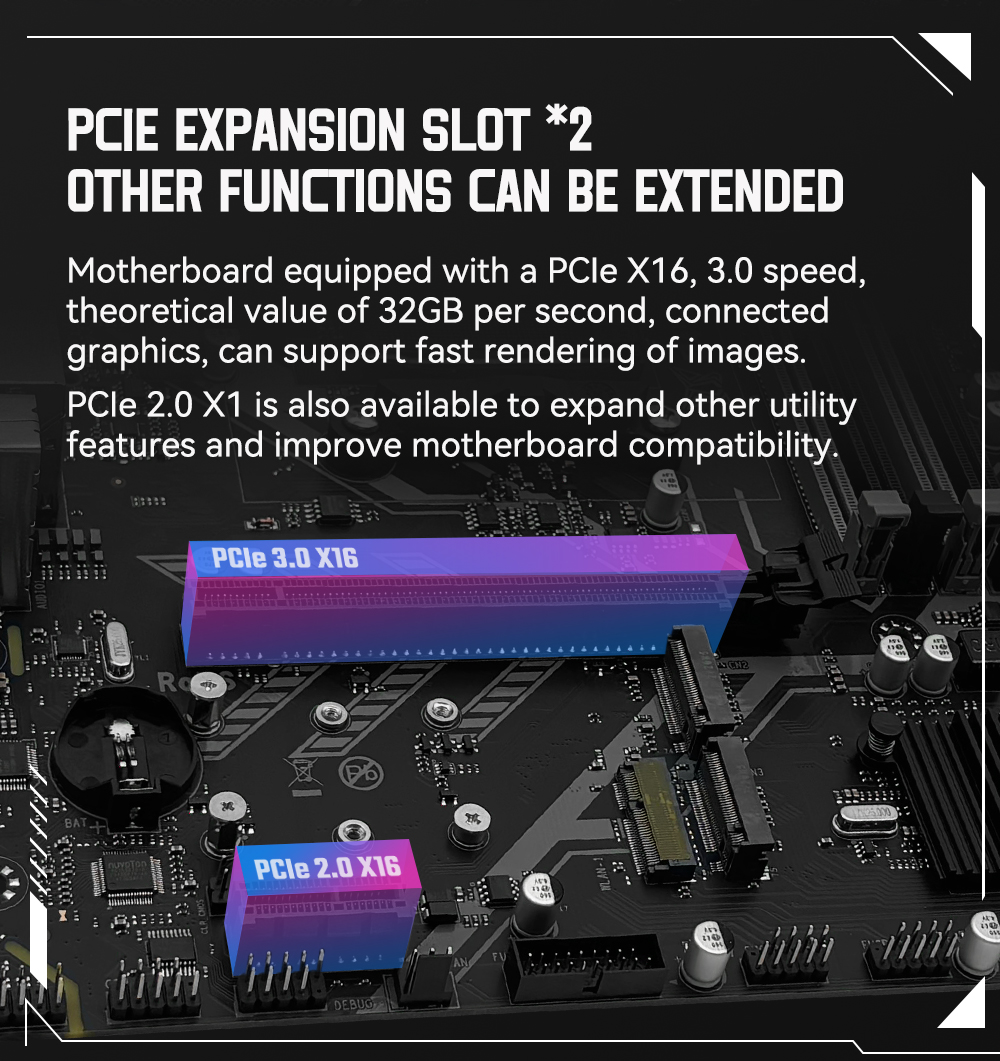

PCIE slots: PCleX16 slot x1,   PCleX1 slot x1

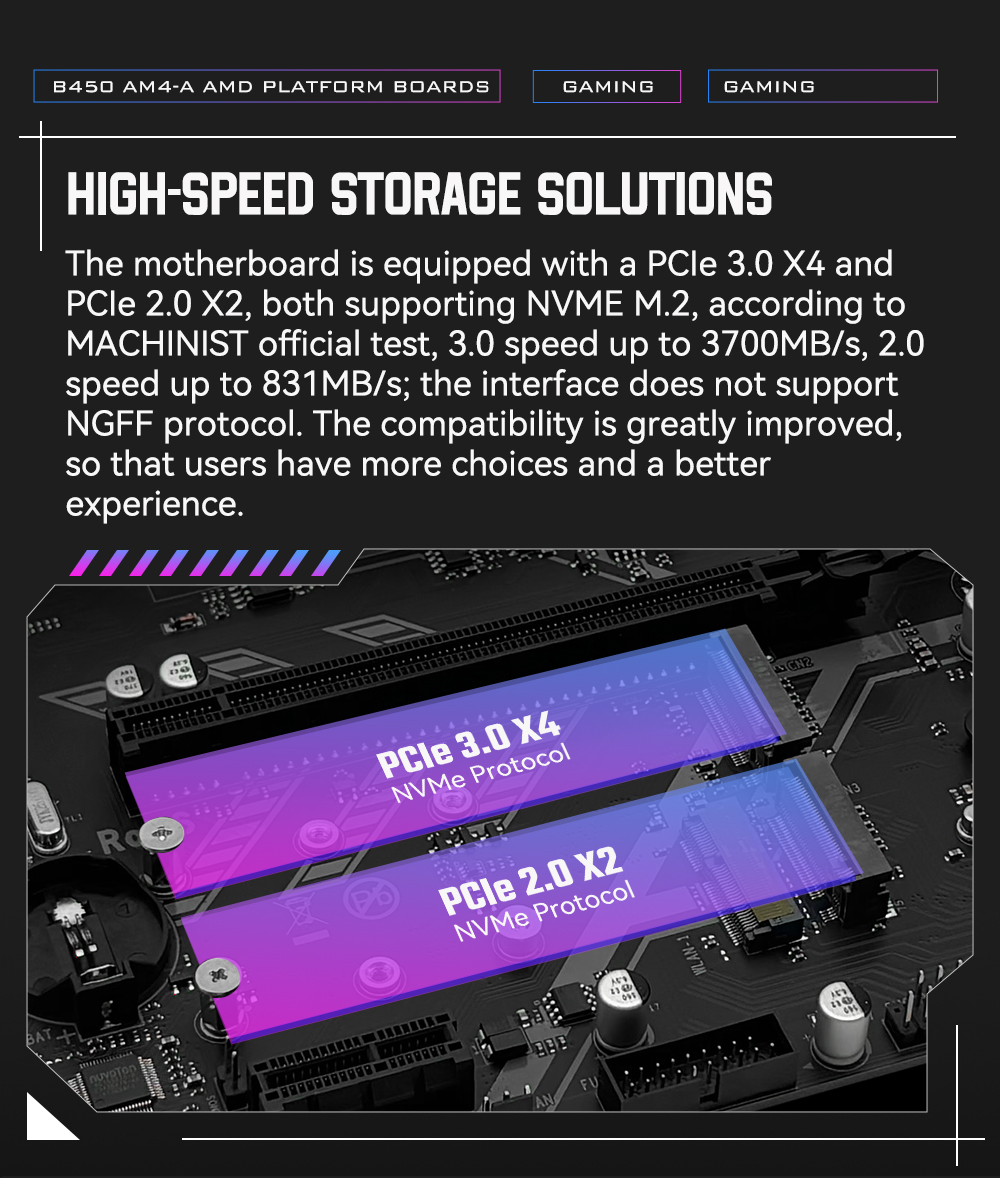

Storage ports: PCIE 3.0 X4 x1,   PCIE 2.0 X4 x1,   SATA3.0 x4

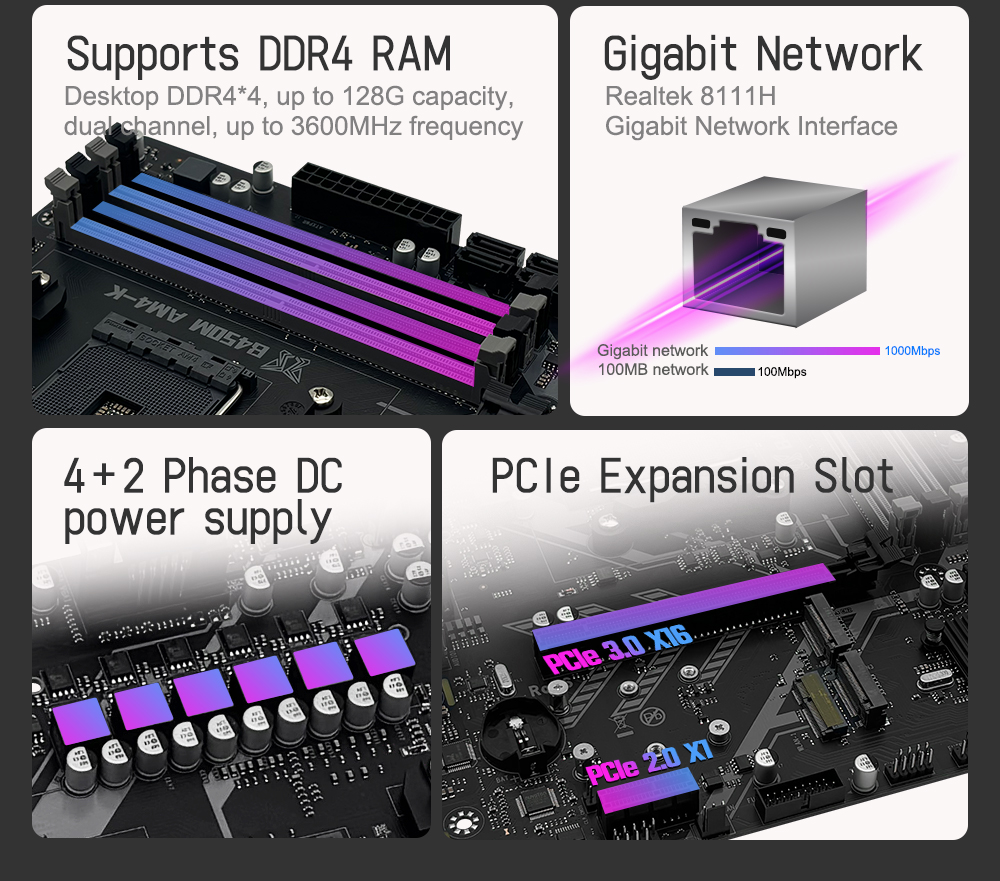

Memory slot: DDR4 x4(If you insert two memory, please insert two black slots),   Dual Channel,   (32Gx4)128GB MAX，  3600MHz MAX

Audio: Audio interface x2(front and rear),   Realtek ALC897 Hi-Fi Sound Card

Fan power supply ports: 3PIN System FAN x1，  4PIN System FAN x1，  4PIN CPU FAN x1

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

USB port: Rear USB2.0 x6,   Front USB2.0 x2/USB3.0 x1

Network port: Realtek 8111H Gigabit network port，   PCIe（NGFF）Wireless NIC slot
