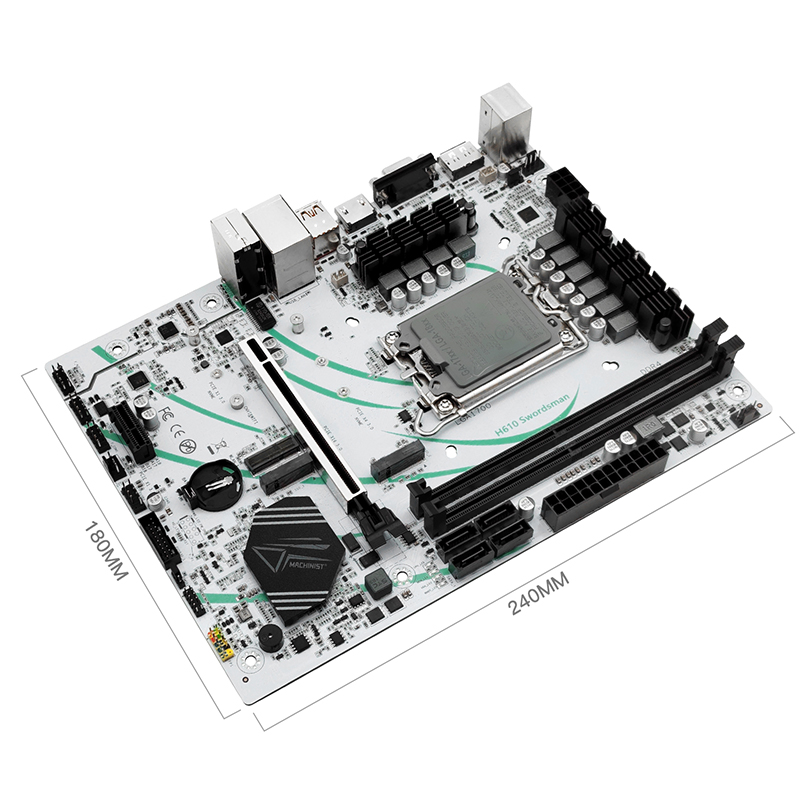

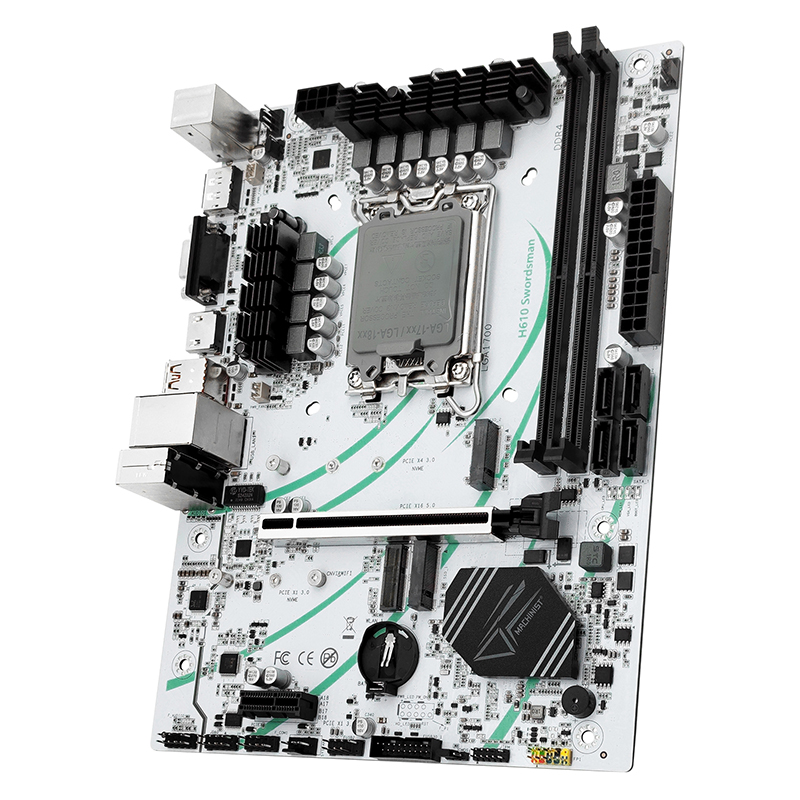

Size: M-ATX，  180mm*240mm

Chip:  Intel H610

CPU Type: LGA1700 Series

XMP: Support

Overclocking: Support

TMP: Support TPM 2.0

RAID: Support

Power supply: 8 +1 +1 (CPU for eight-phase direct power supply)

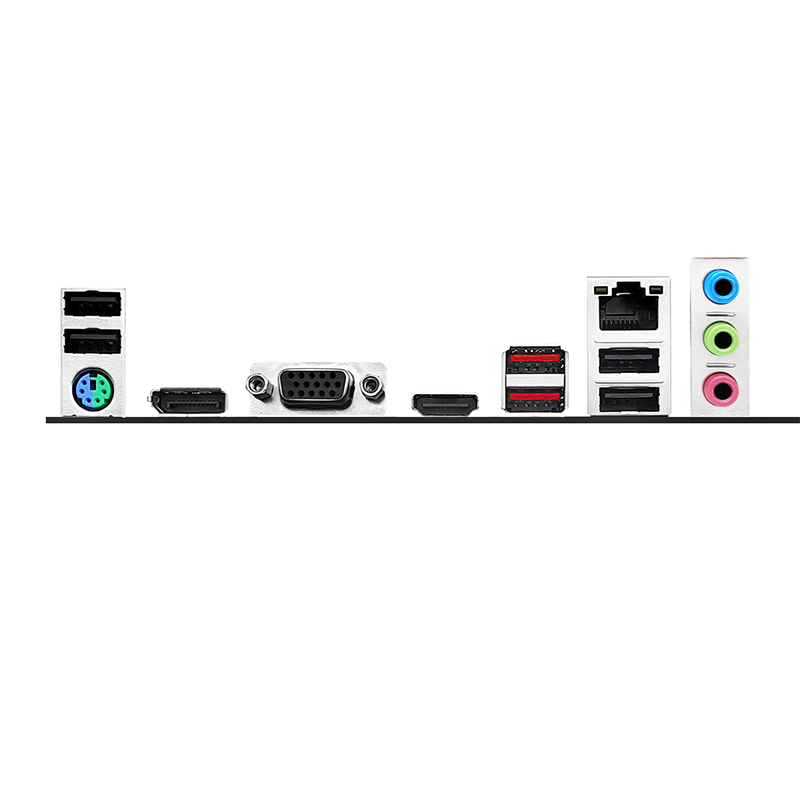

Display Interface: DP,   HDMI,   VGA

PCIE slots: PCle4.0/5.0 X16 slot x1,   PCle3.0 X1 slot x1

Storage ports: PCIE 3.0 X4 x1,   PCIE 3.0 X1 x1,   SATA3.0 x4

Memory slot: DDR4 x4,   Dual Channel,   (32Gx2)64GB MAX，  3200MHz MAX

Audio: Audio interface x2(front and rear),   Realtek ALC897 Hi-Fi Sound Card

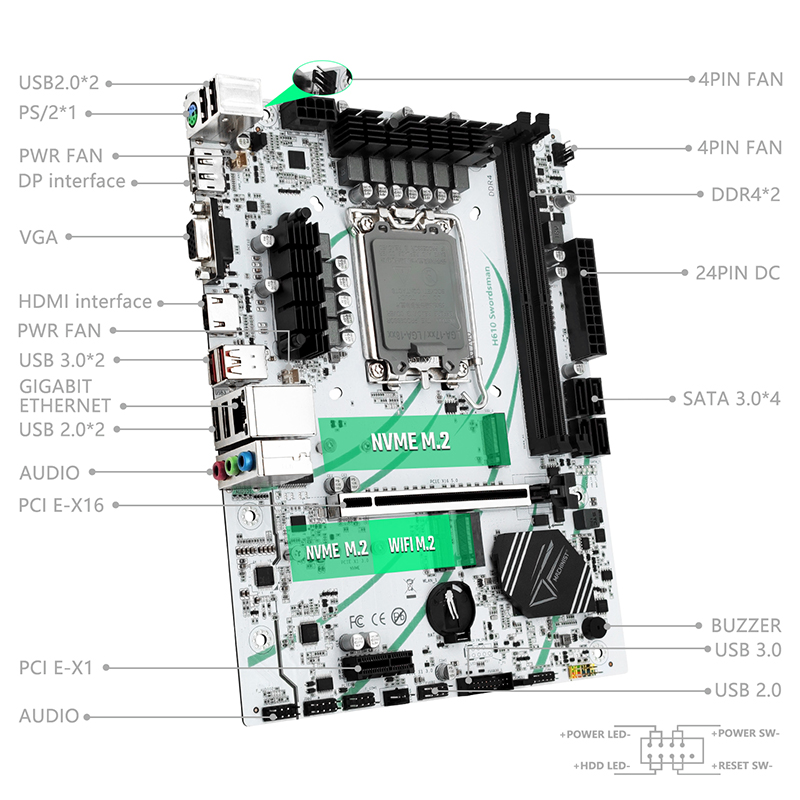

Fan power supply ports: 3PIN System FAN x1，  4PIN System FAN x1，  4PIN CPU FAN x1

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

USB port: Rear USB3.2 x2/USB2.0 x4,   Front USB2.0 x2/USB3.0 x1（Control USB 3PIN jumper：Default short 1-2PIN, only the motherboard power on the power supply. Can be switched to short 2-3PIN power on/off are powered）

Network port: Renesas RTL8125BG 2.5G network card，   CNVI/PCIeWireless NIC slot

Other features: DEBUG indicator,   Buzzer
