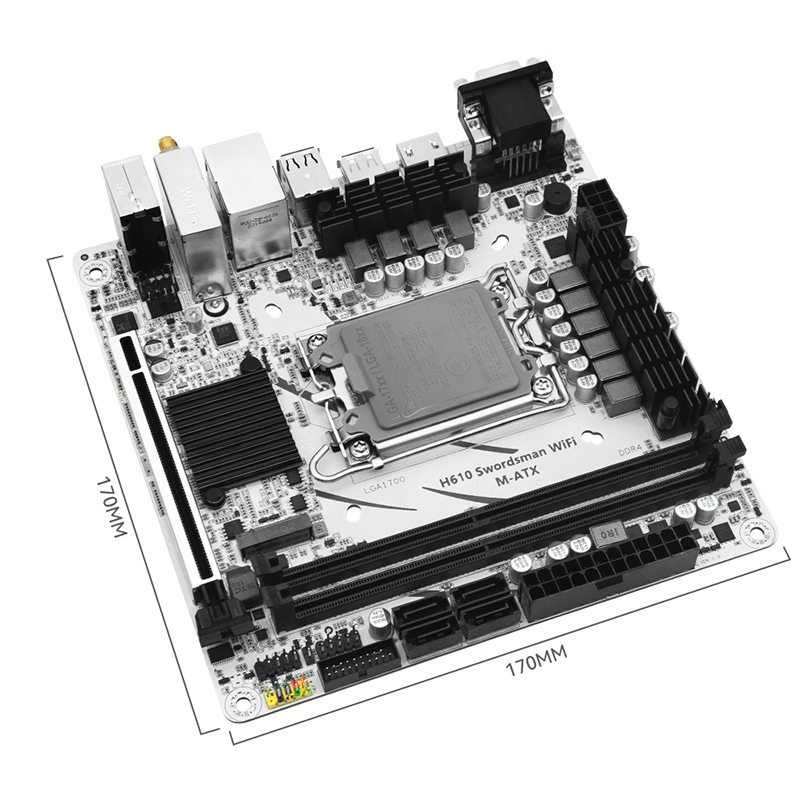

Size: M-ITX，  170mm*170mm

Chip:  Intel H610

CPU Type: LGA1700 Series

XMP: Support

Overclocking: Support

TMP: Support TPM 2.0

RAID: Support

Power supply: 8 +1 +1 (CPU for eight-phase direct power supply)

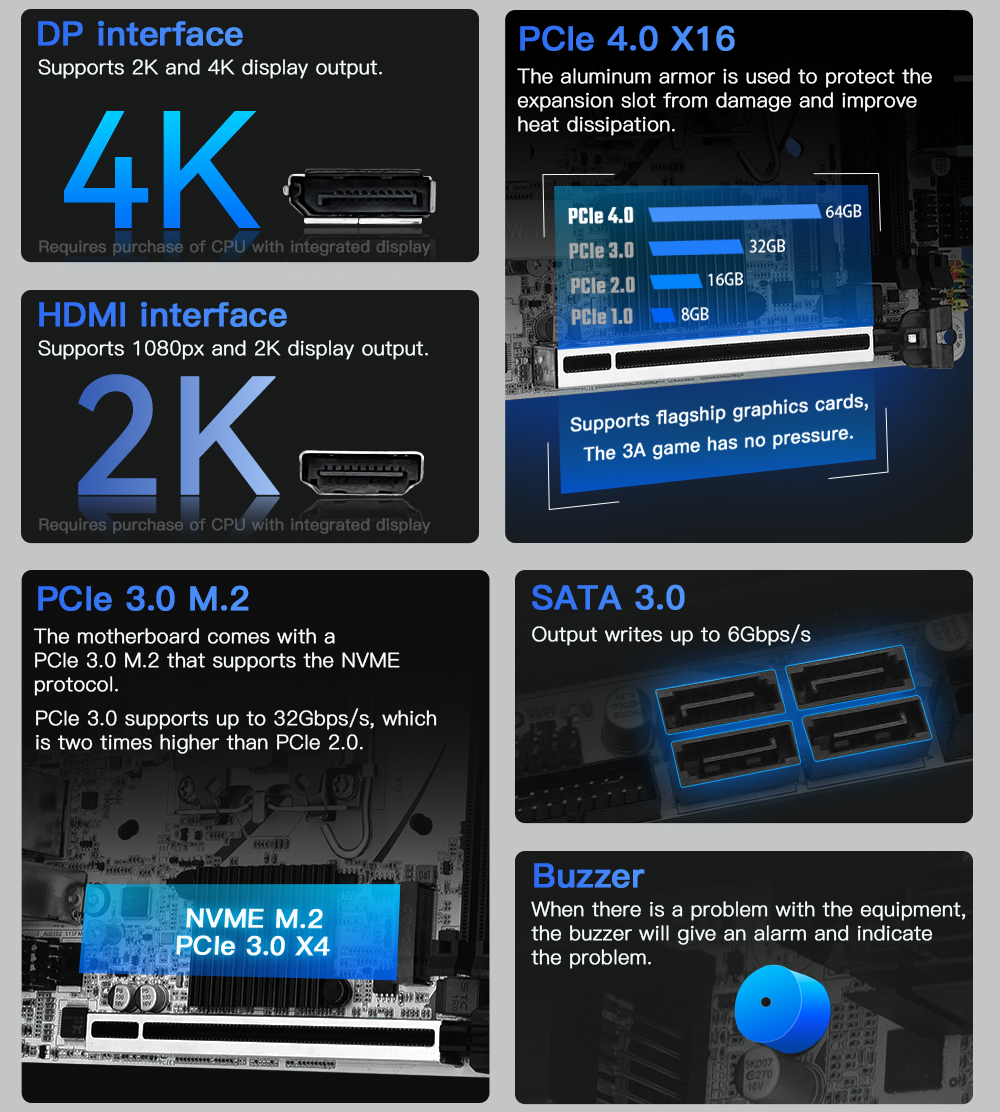

Display Interface: DP,   HDMI,   VGA

PCIE slots: PCle4.0 X16 Slot x1

Storage ports: NVME M.2(PCIE 3.0 X4) x1,   SATA 3.0 x4

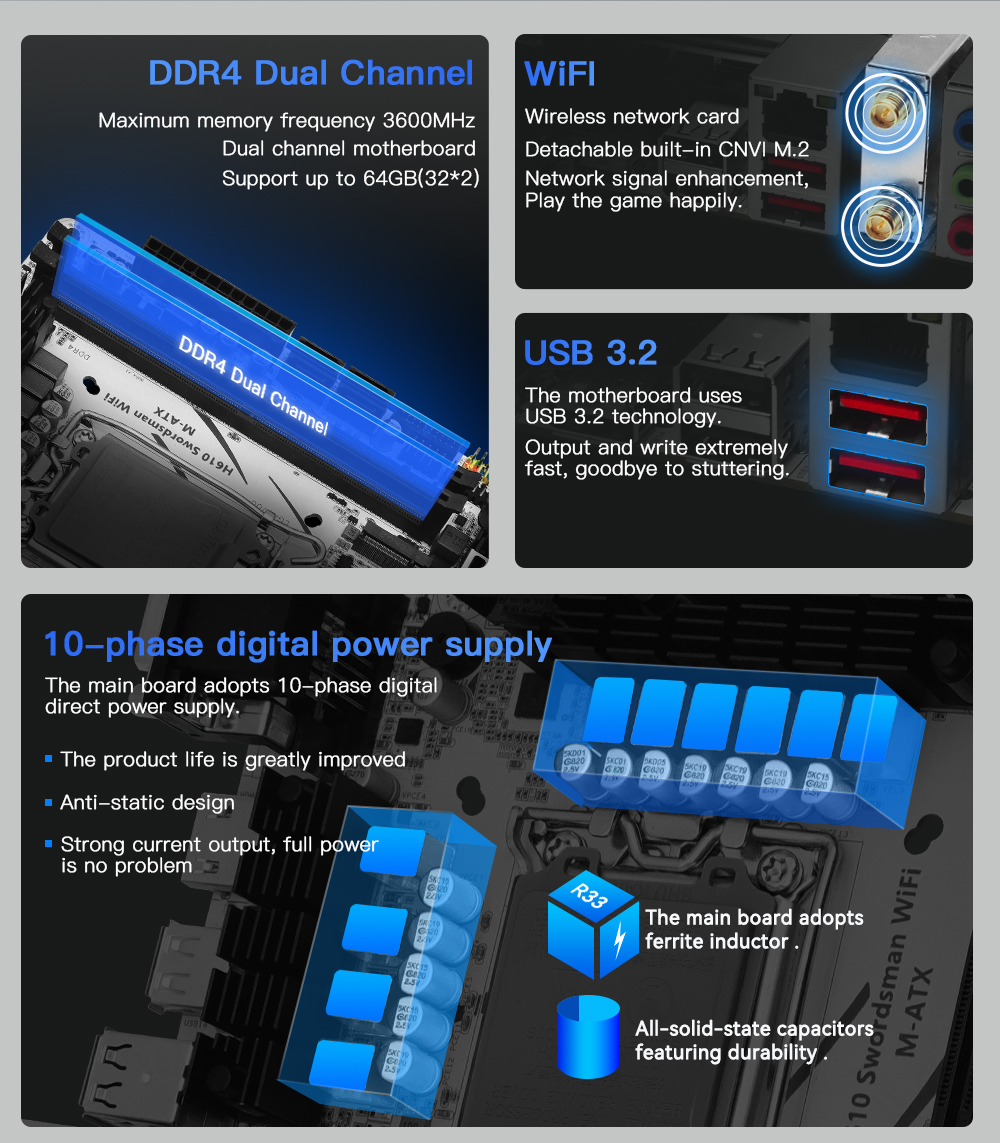

Memory slot: DDR4 x4,   Dual Channel,   (32Gx2)64GB MAX，  3200MHz MAX

Audio: Audio interface x2(front and rear),   Realtek ALC897 Hi-Fi Sound Card

Fan power supply ports: 4PIN System FAN x1，  4PIN CPU FAN x1

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

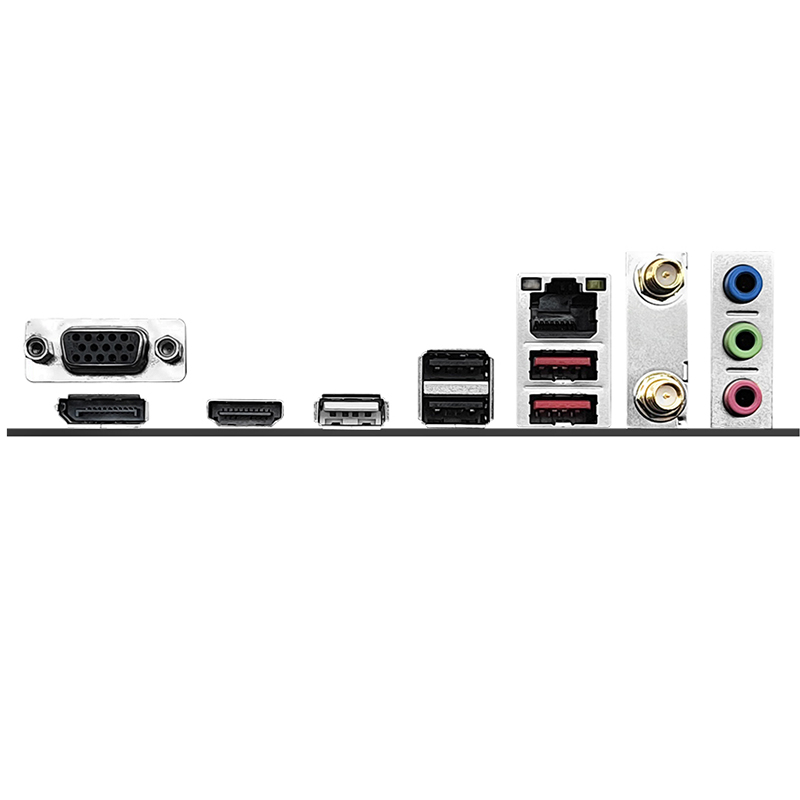

USB port: Rear USB3.2 x2/USB2.0 x3,   Front USB2.0 x2/USB3.0 x1

Network port: Renesas RTL8111H Gigabit LAN Card，   WiFi 6E/CNVI and PCIeWireless NIC slot

Other features: DEBUG indicator,   Buzzer
