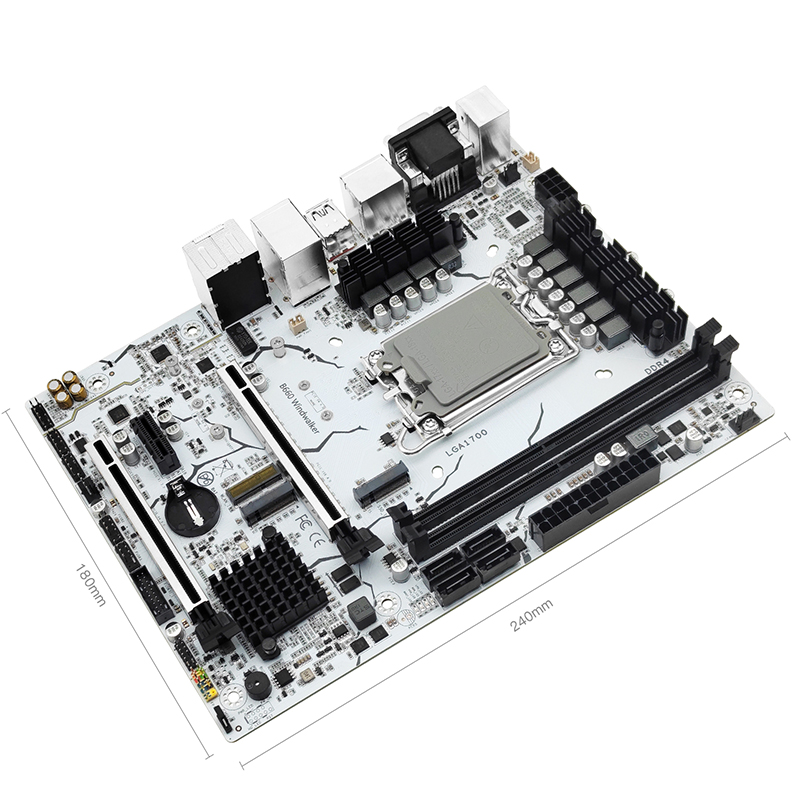

Size: M-ATX，  180mm*240mm

Chip:  Intel H610

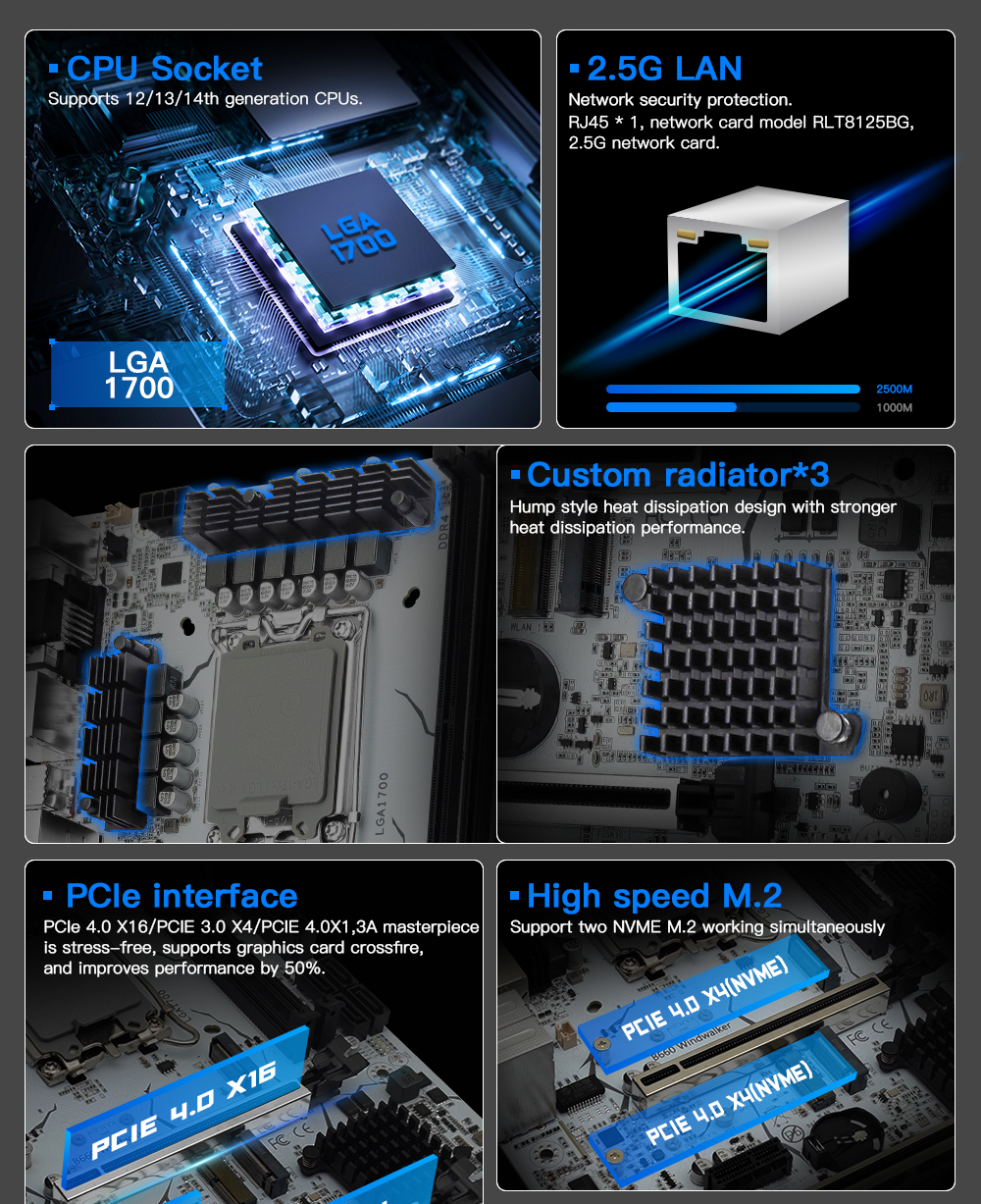

CPU Type: LGA1700 Series

XMP: Support

Overclocking: Support

TMP: Support TPM 2.0

RAID: Support

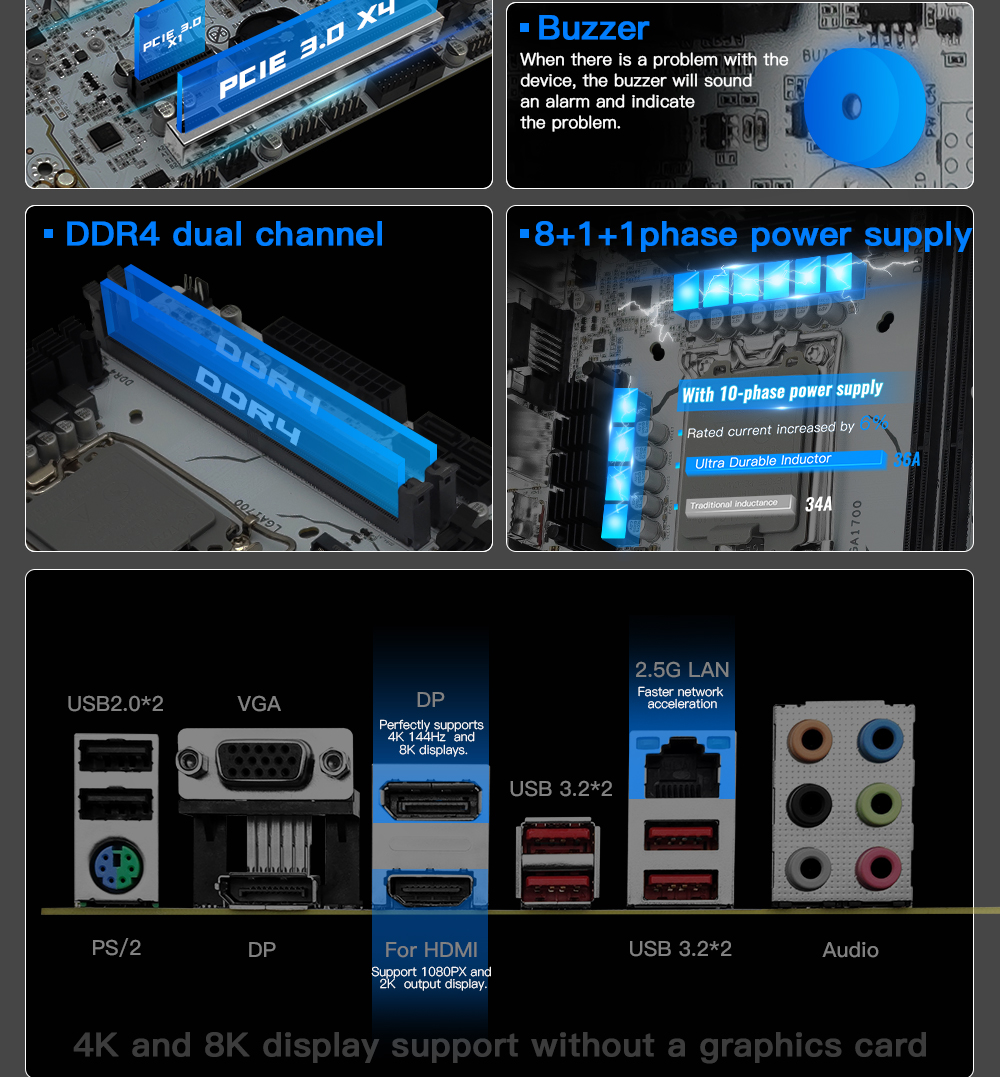

Power supply: 8 +1 +1 (CPU for eight-phase direct power supply)

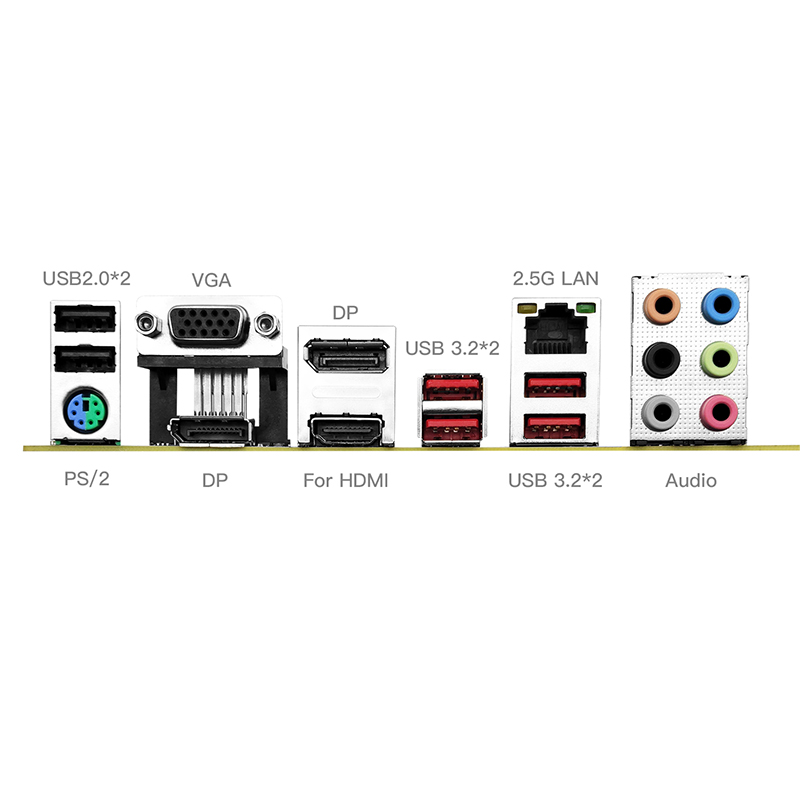

Display Interface: DP x2,   HDMI,   VGA

PCIE slots: PCle4.0 X16 slot x1,   PCle3.0 X4 slot x1,   PCle3.0 X1 slot x1

Storage ports: (PCIE 4.0 X4)NVME M.2 x2,   SATA3.0 x4

Memory slot: DDR4 x2,   Dual Channel,   (32Gx2)64GB MAX，  3600MHz MAX

Audio: Audio interface x2(front and rear),   Realtek ALC897 Hi-Fi Sound Card

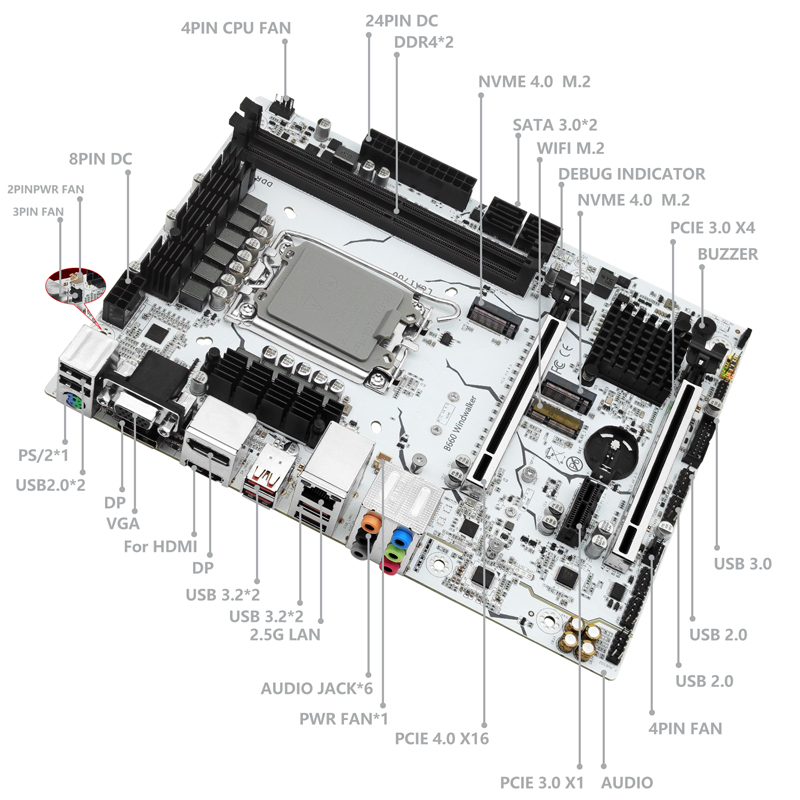

Fan power supply ports: 3PIN System FAN x1，  4PIN System FAN x1，  4PIN CPU FAN x1,   2PIN PWR FAN x2(Monitor the fan operation status and control the speed of the fan)

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

USB port: Rear USB3.2 x4/USB2.0 x2,   Front USB2.0 x2/USB3.0 x1

Network port: Renesas RTL8125BG 2.5G network card，   CNVI/PCIeWireless NIC slot

Other features: DEBUG indicator,   Buzzer
