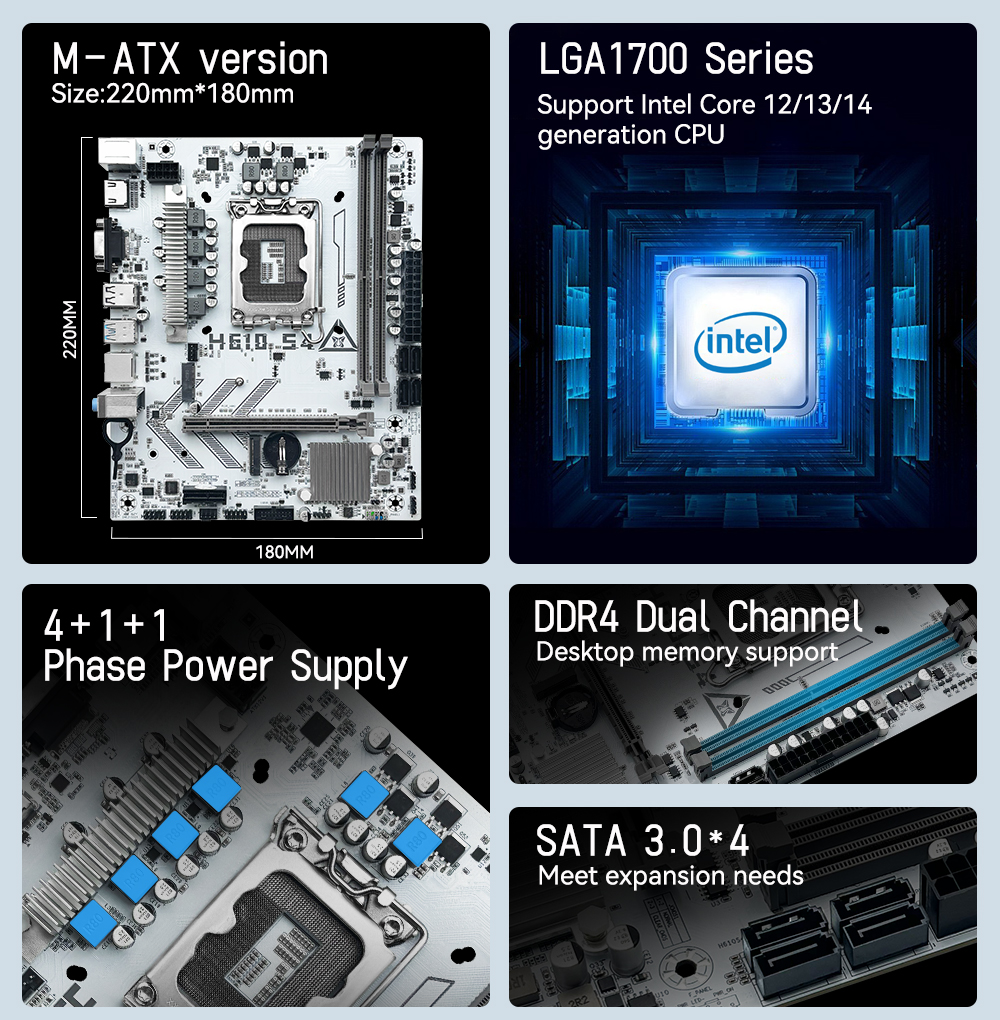

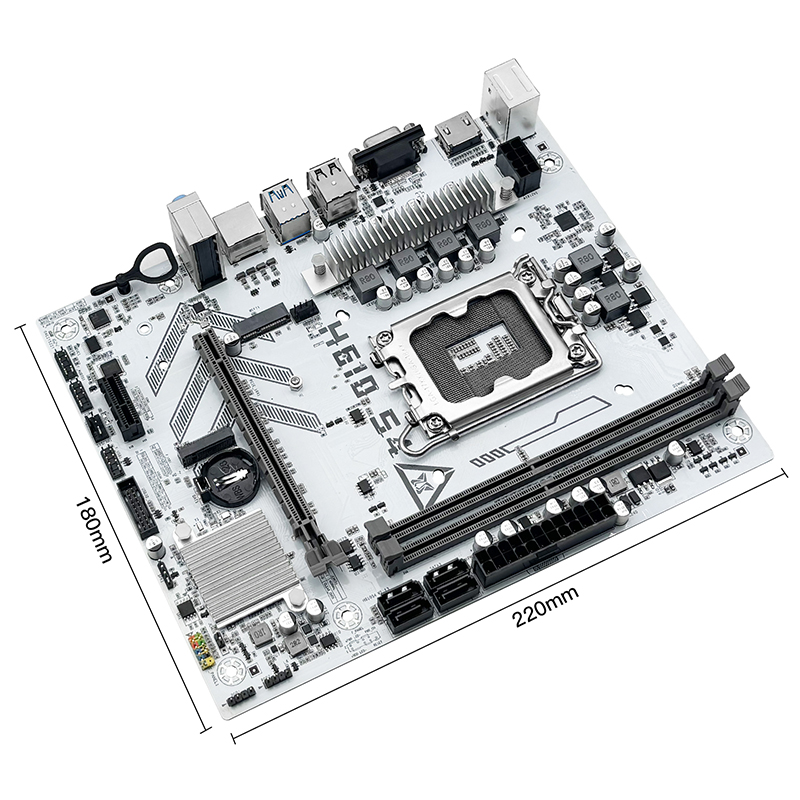

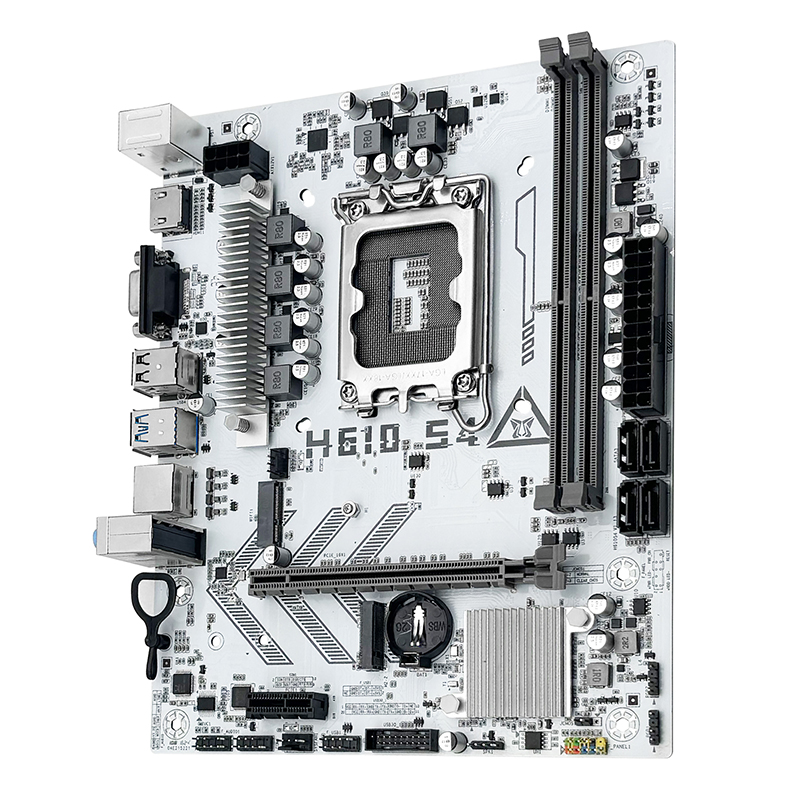

Size: M-ATX，  180mm*220mm

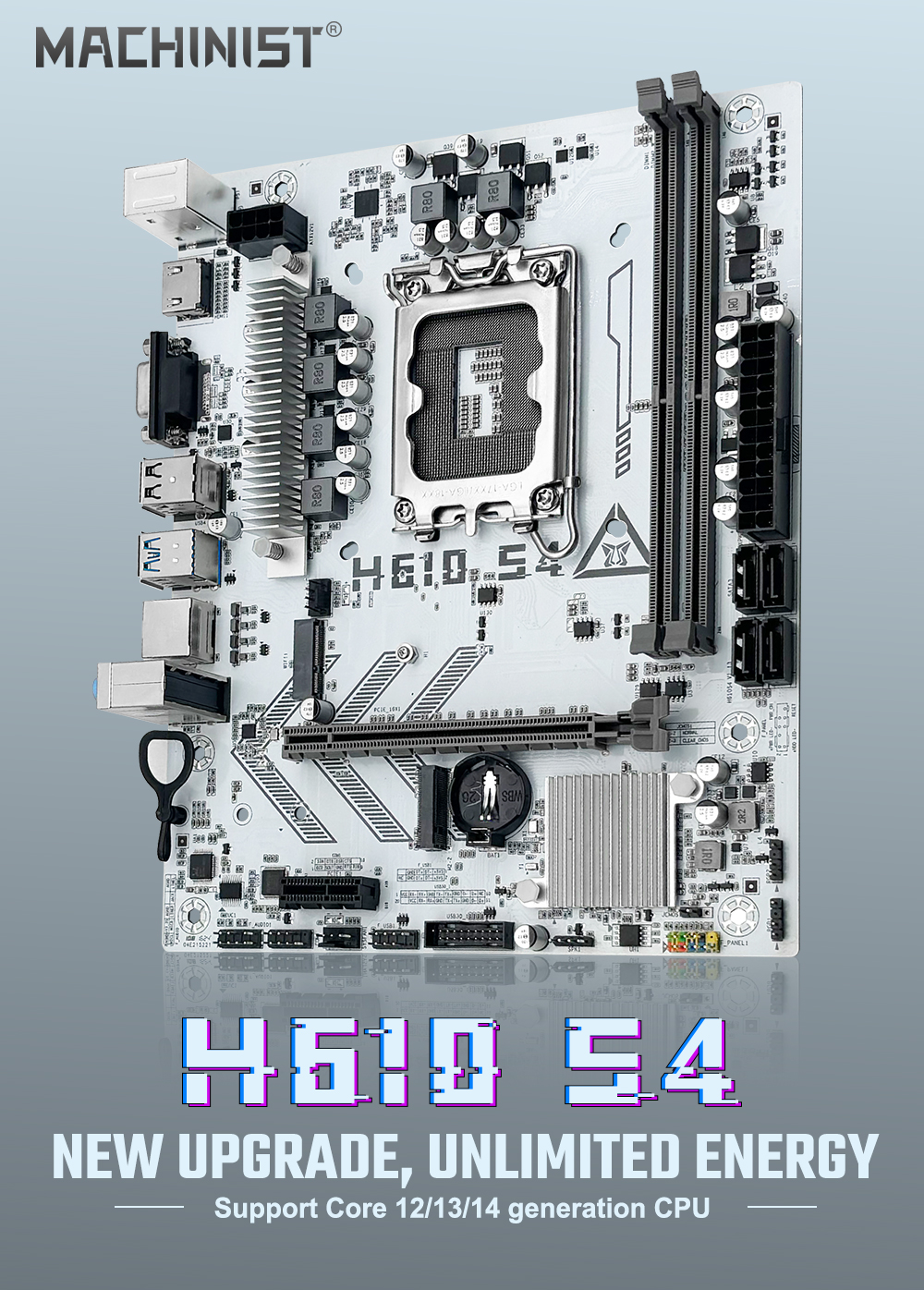

Chip:  Intel H610

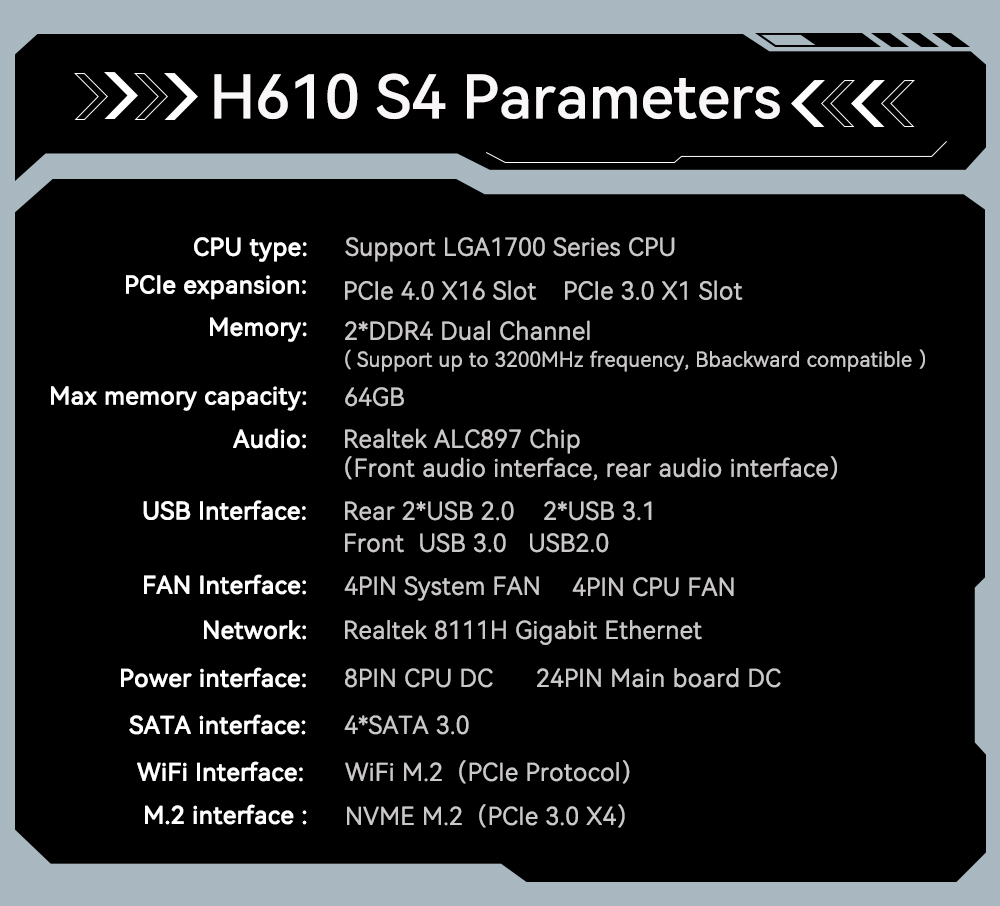

CPU Type: LGA1700 Series

Re-Size BAR: Support

4G or above decoding: support

XMP: Support

RGB colour adjustment: support

Power supply: 4 +1 +1 (CPU for four-phase direct power supply)

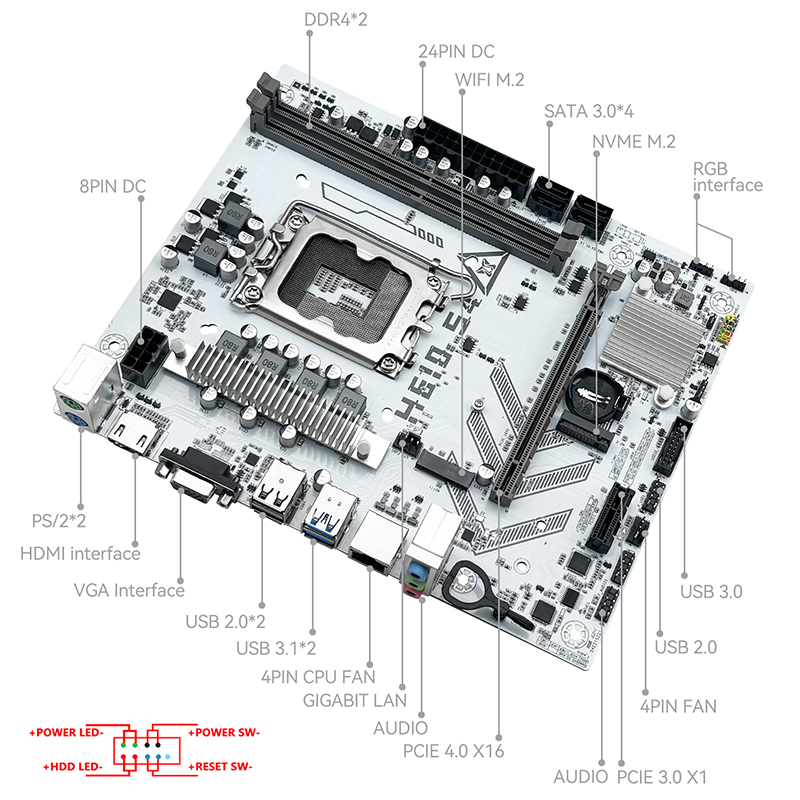

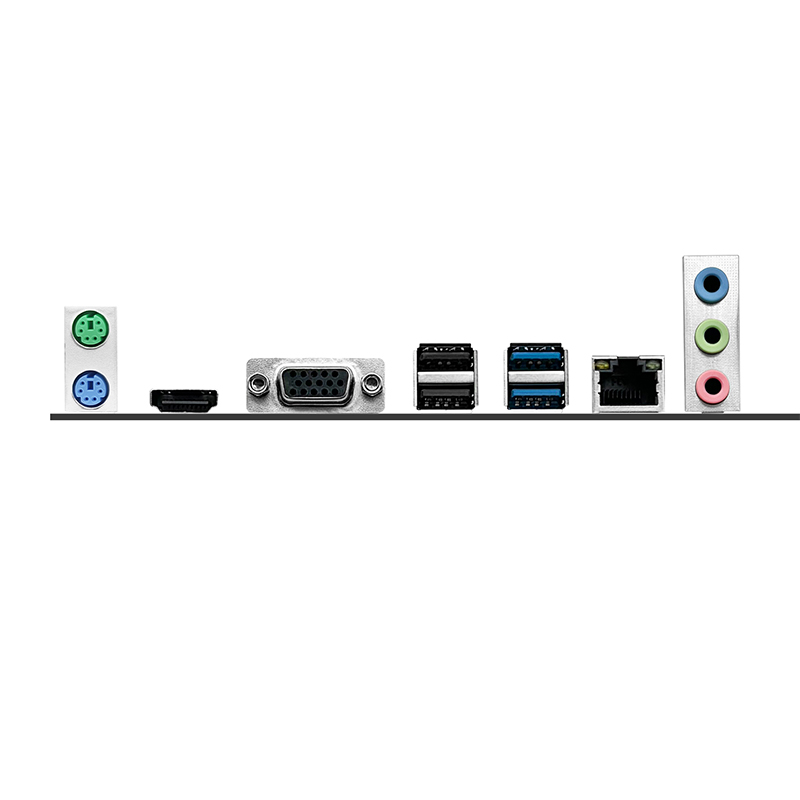

Display Interface: HDMI,   VGA

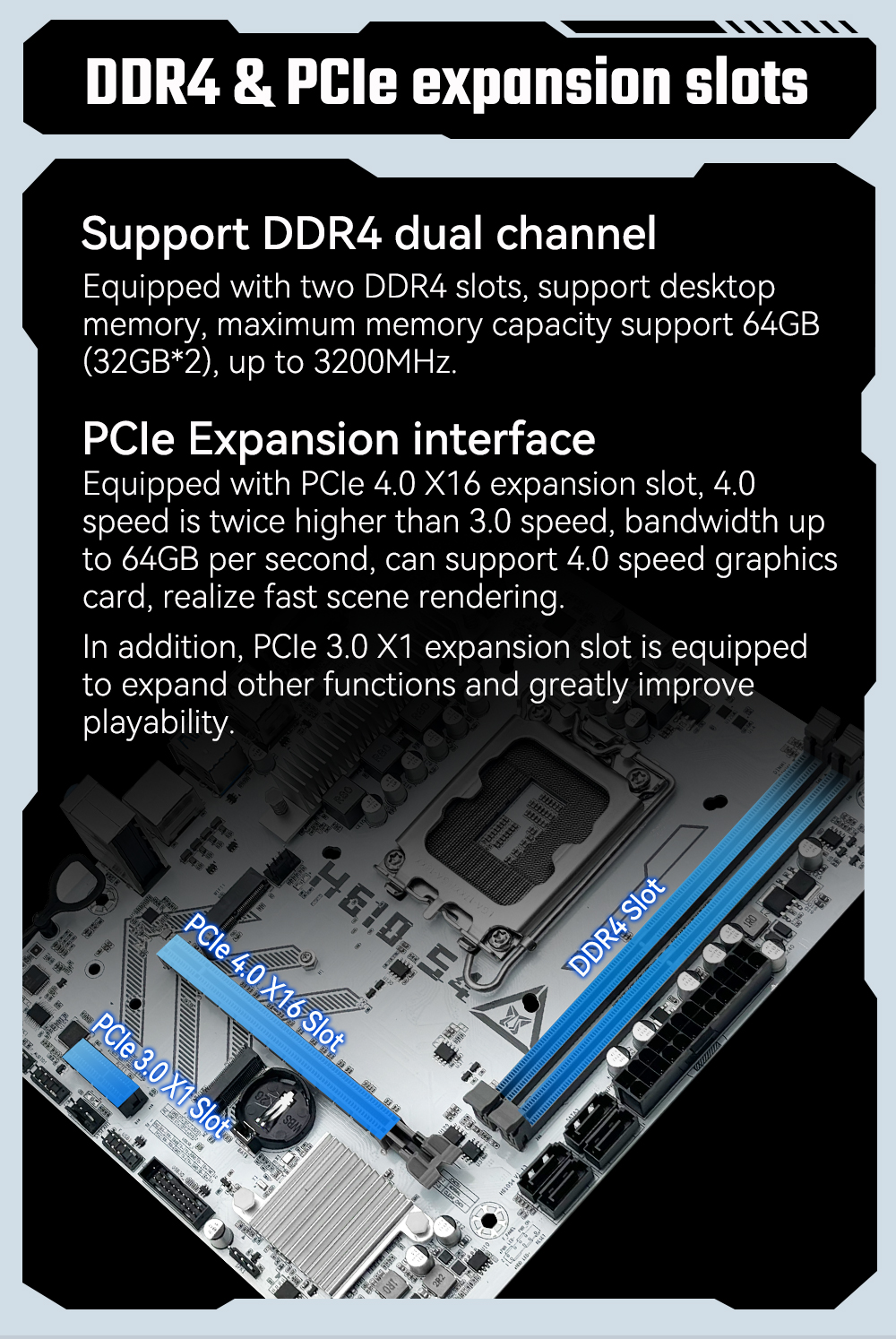

PCIE slots: PCle4.0 X16 slot x1,   PCle3.0 X1 slot x1

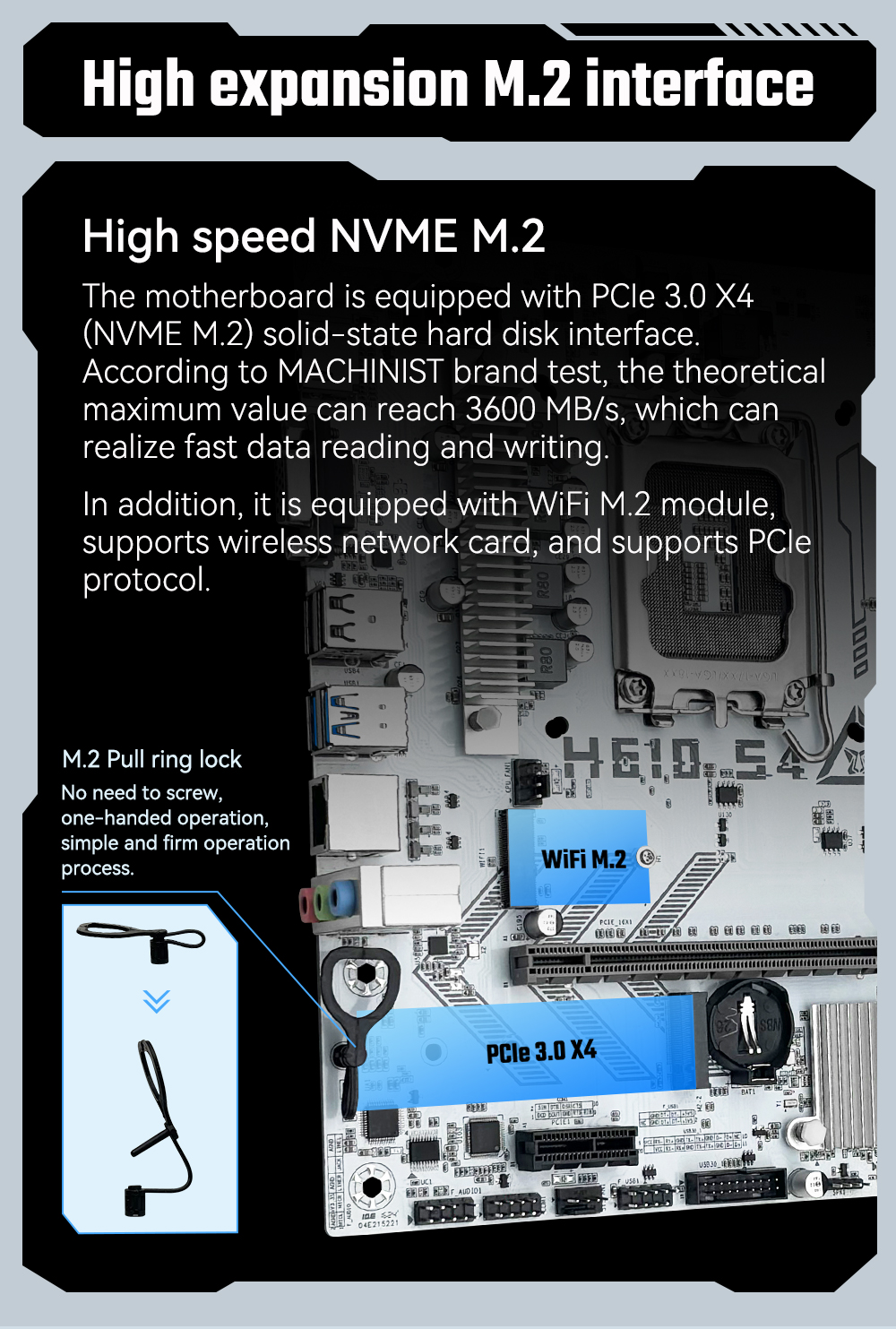

Storage ports: (PCIE 3.0 X4)NVME M.2  x1,   SATA3.0 x4

Memory slot: DDR4 x4,   Dual Channel,   (32Gx2)64GB MAX，  3200MHz MAX

Audio: Audio interface x2(front and rear),   Realtek ALC897 Hi-Fi Sound Card

Fan power supply ports: 3PIN System FAN x1，  4PIN System FAN x1，  4PIN CPU FAN x1

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

USB port: Rear USB3.2 x2/USB2.0 x4,   Front USB2.0 x2/USB3.0 x1（Control USB 3PIN jumper：Default short 1-2PIN, only the motherboard power on the power supply. Can be switched to short 2-3PIN power on/off are powered）

Network port: Renesas 8111H Gigabit LAN Card，   PCIeWireless NIC slot（WiFi M.2）

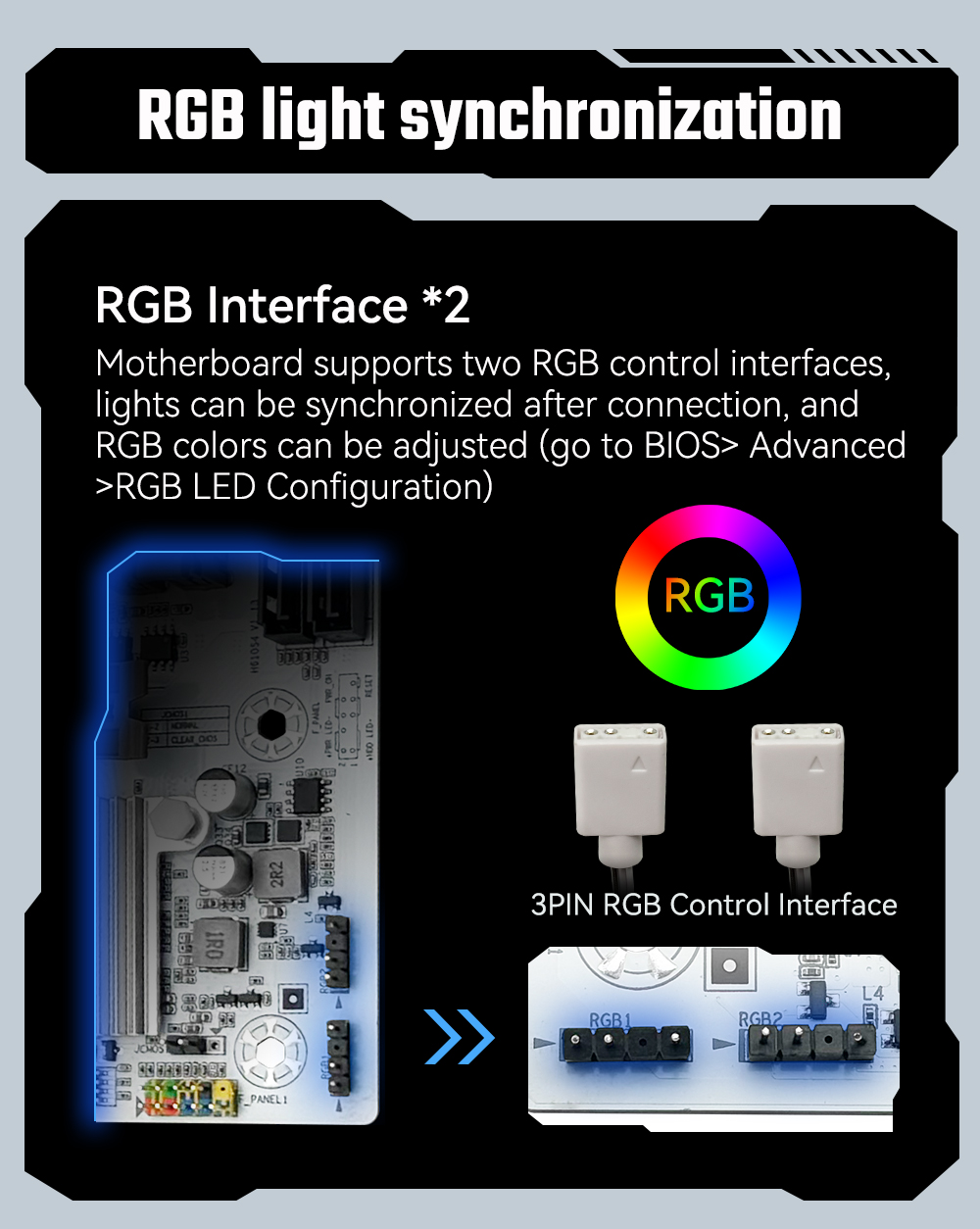

RGB Control: 3PIN RGB x2
