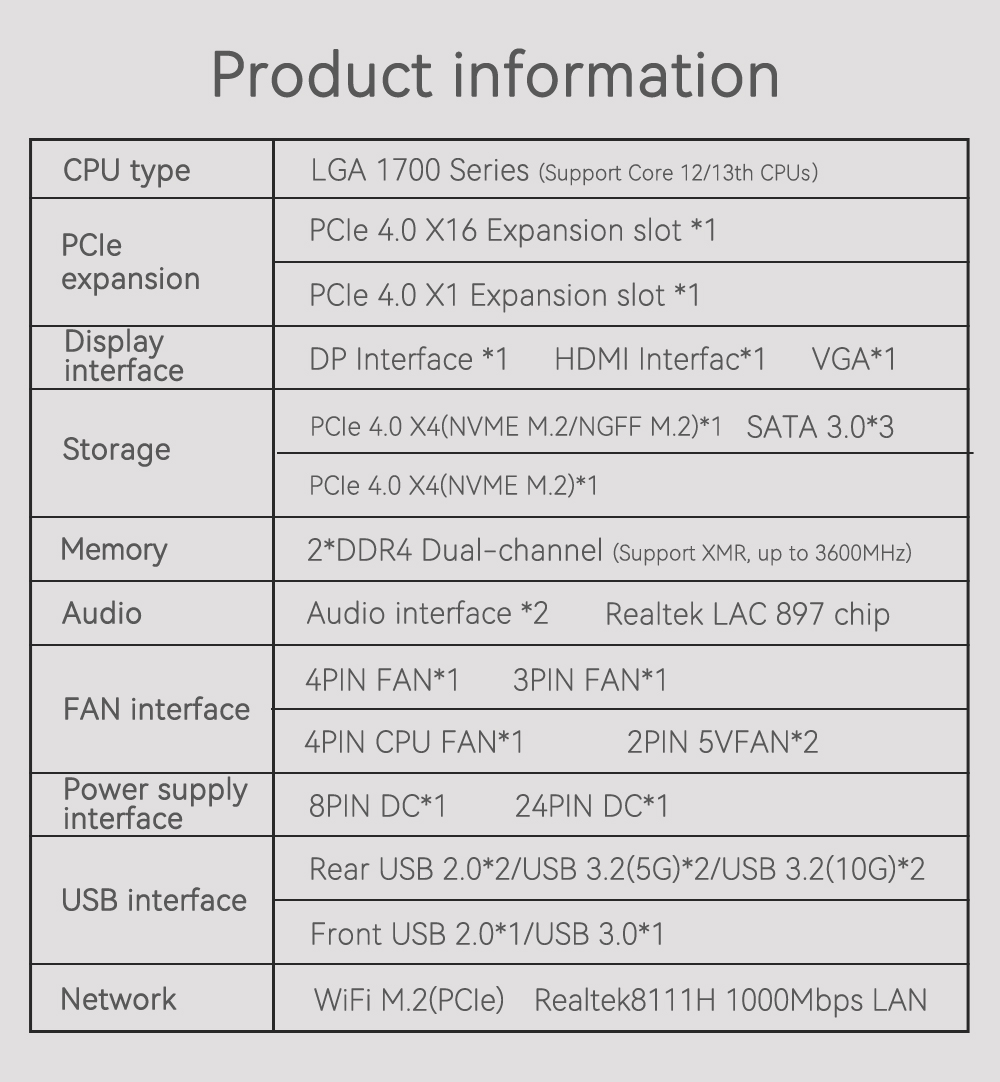

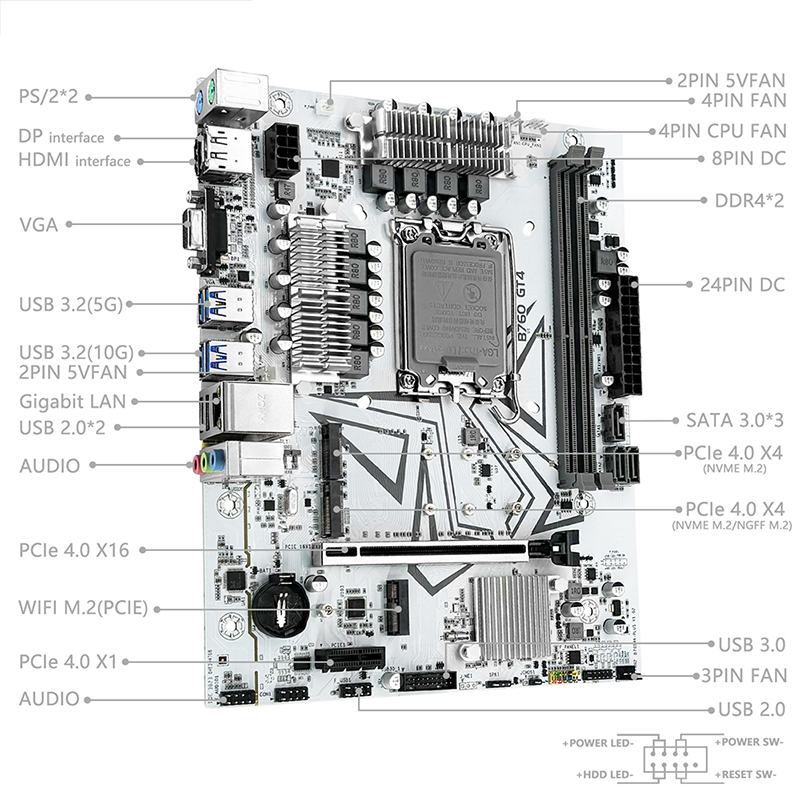

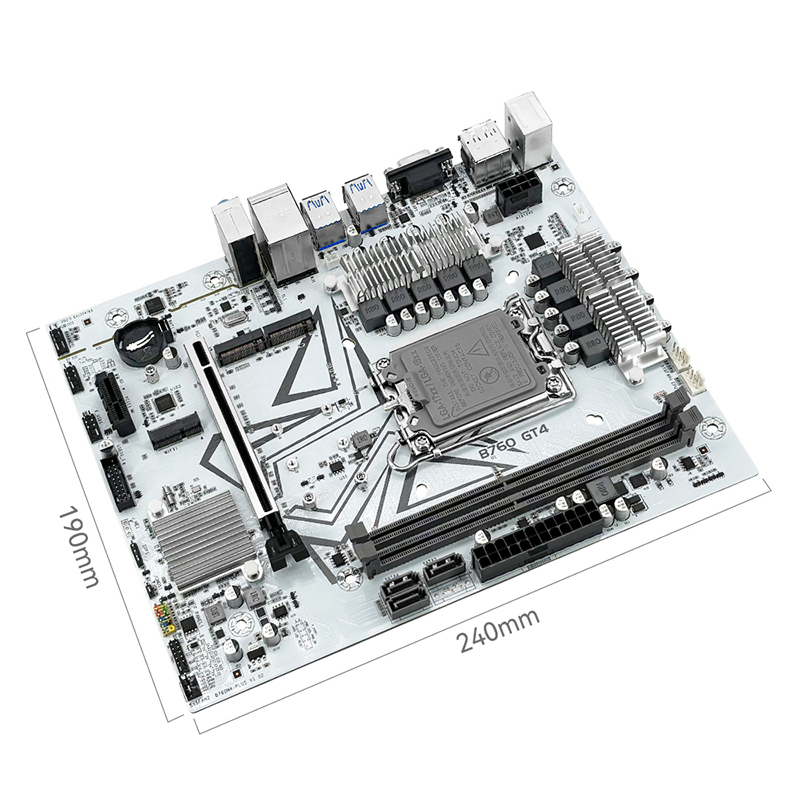

Size: M-ATX，  190mm*240mm

Chip:  Intel B760

CPU Type: LGA1700 Series

Re-Size BAR: Support

Wake on Network: Support

TPM: Support TPM 2.0

Self-boot after power failure: Support

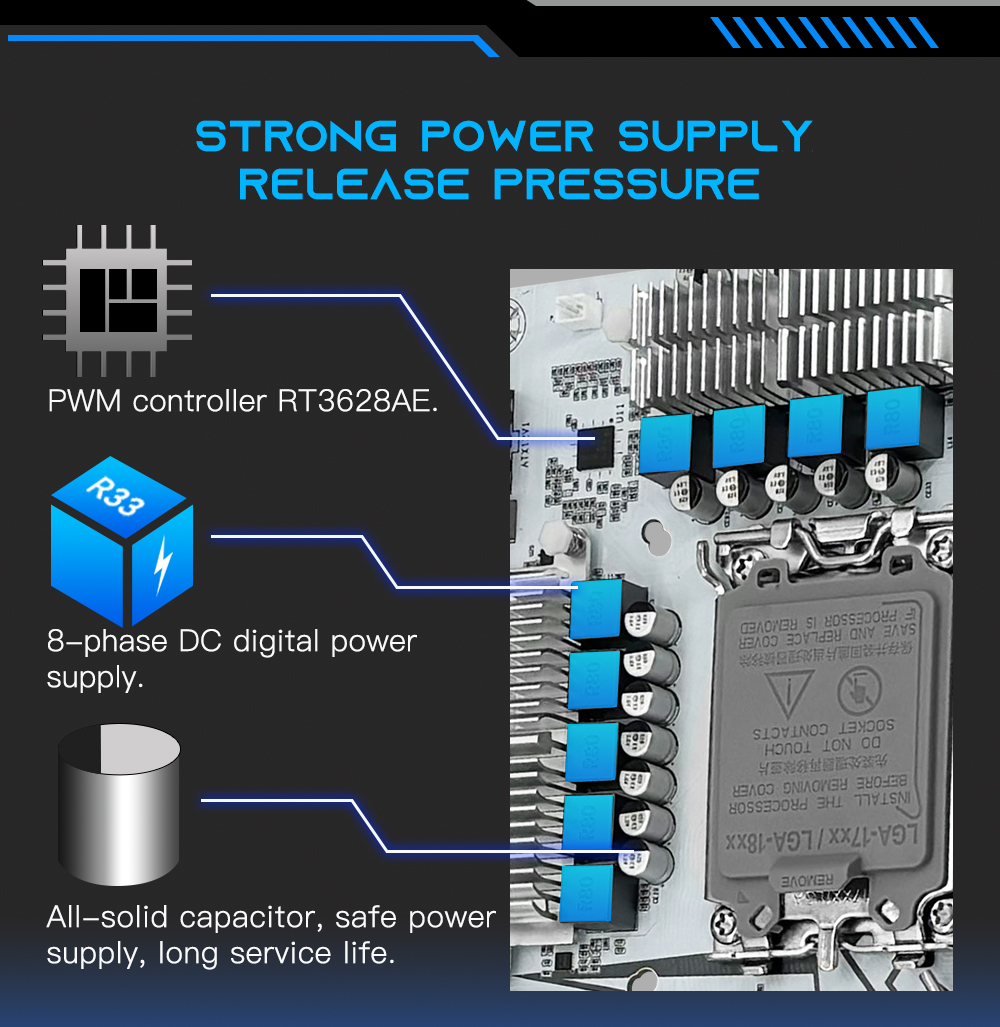

Power supply: 8-phase direct power supply

Display Interface: DP,   HDMI,   VGA

PCIE slots: PCle4.0 X16 slot x1,   PCle4.0 X1 slot x1

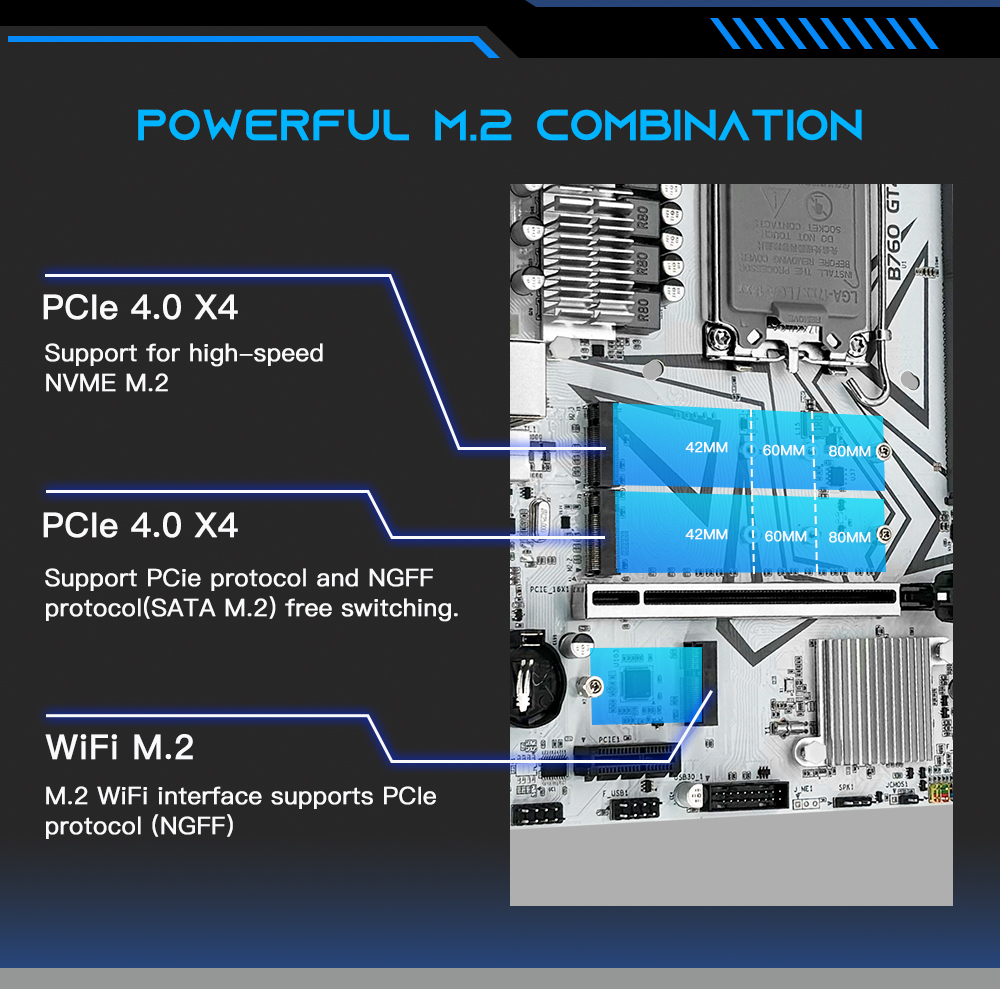

Storage ports: PCIE 4.0 X4 x2(The first one supports NVME M.2, the second one supports NVME M.2 or SATA M.2),   SATA3.0 x3

Memory slot: DDR4 x2,   Dual Channel,   (32Gx2)64GB MAX，  3600MHz MAX

Audio: Audio interface x2(front and rear),    Realtek ALC897 audio chip，   Supports 5.1 channels

Fan power supply ports: 3PIN System FAN x1，  4PIN System FAN x1，  4PIN CPU FAN x1，   2PIN 5V FAN x1

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

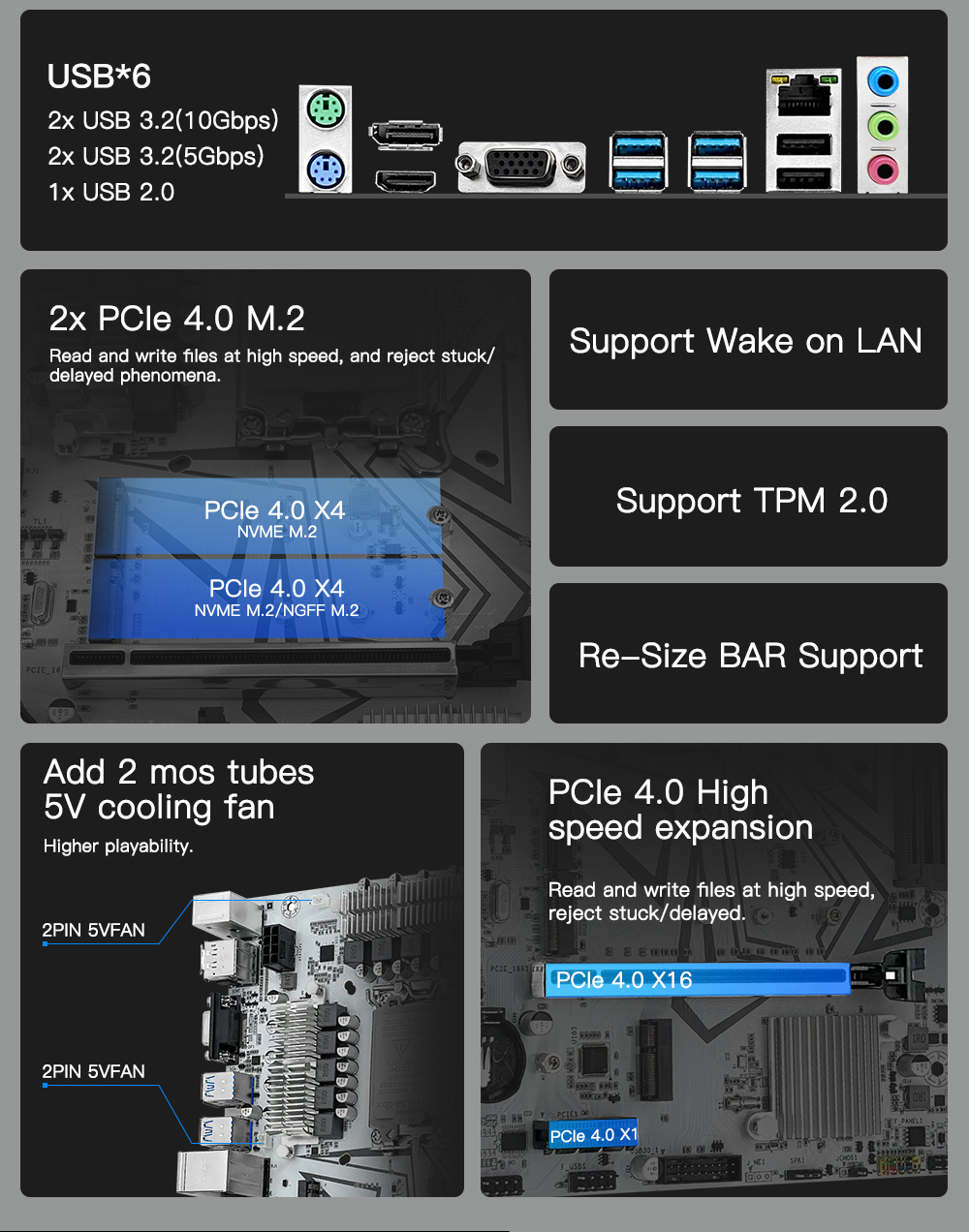

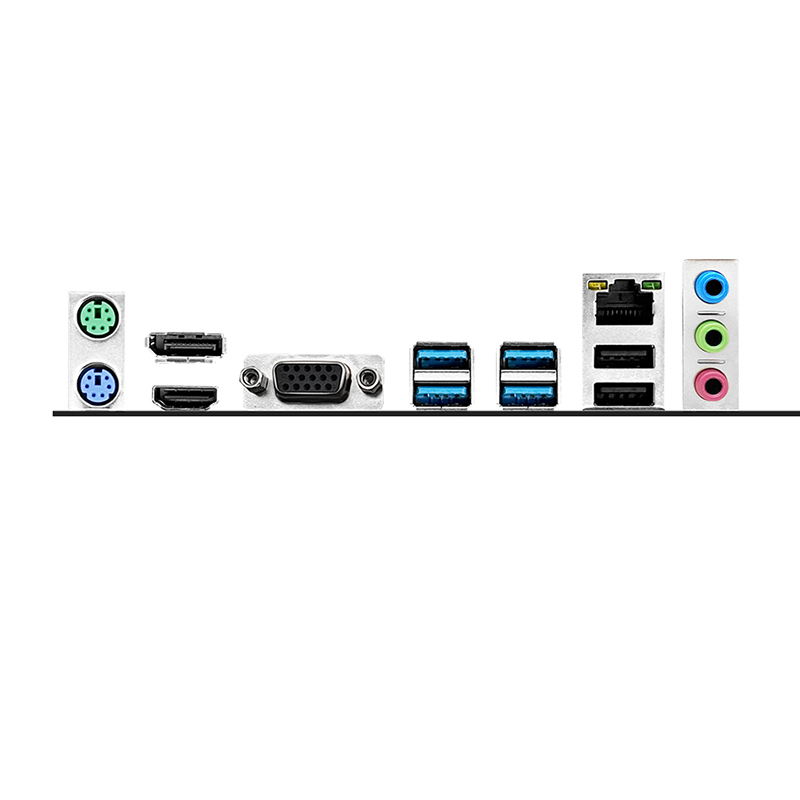

USB port: Rear USB3.2（5G） x2/USB3.2（10G） x2/USB2.0 x2,   Front USB2.0 x2/USB3.0 x1

Network port: Renesas 8111H Gigabit LAN Card，   NGFF/PCIeWireless NIC slot（WiFi M.2）
