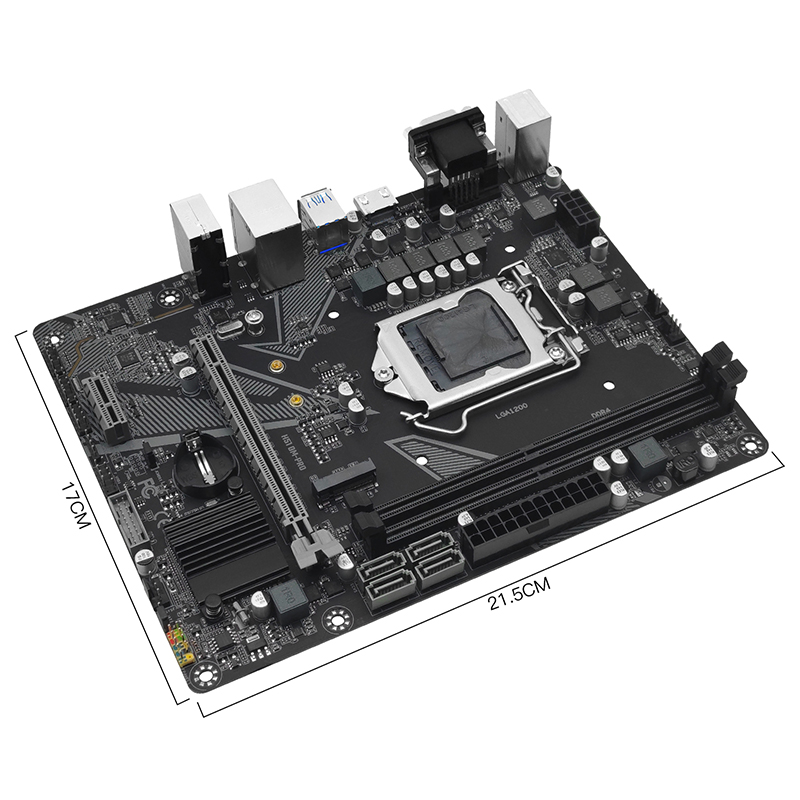

Size: M-ATX，  170mm*215mm

Chip:  Intel

CPU Type: LGA1200 Series

Power supply: 8-phase direct power supply

Display Interface: HDMI,   DP,   VGA

PCIE slots: PCle3.0 X16 slot x1,   PCle3.0 X1 slot x1

Storage ports: NVME M.2(PCIE 3.0 X4),   SATA3.0 x4

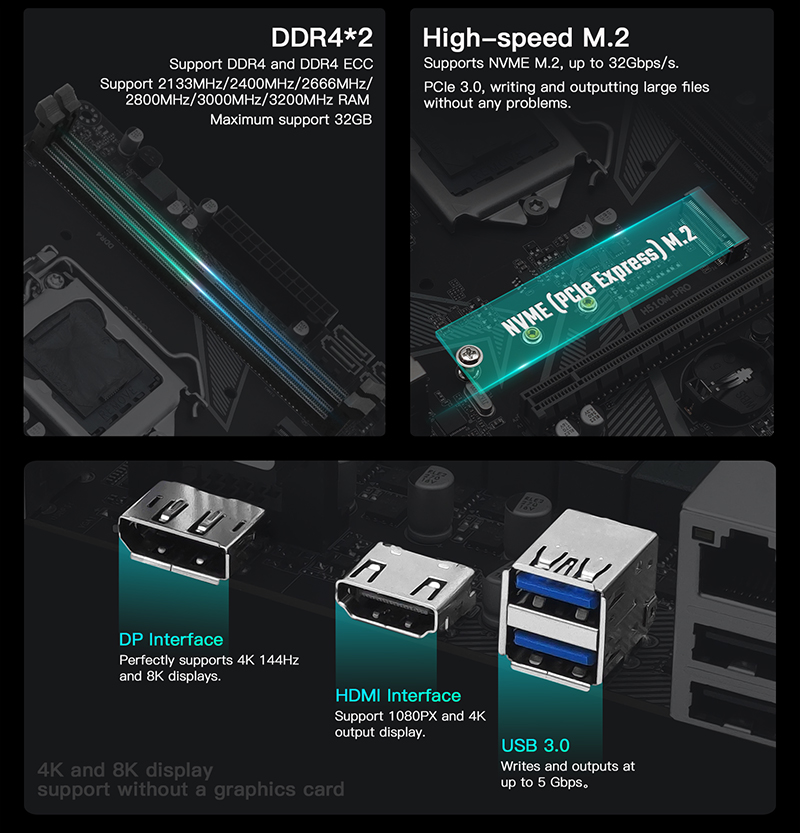

Memory slot: DDR4 x2,   Dual Channel,   (32Gx2)64GB MAX，  Maximum support 2666MHz

Audio: Audio interface x2(front and rear),    Realtek ALC897 audio chip，   Supports 5.1 channels

Fan power supply ports: 3PIN System FAN x1，  4PIN System FAN x1，  4PIN CPU FAN x1，   2PIN 5V FAN x1

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

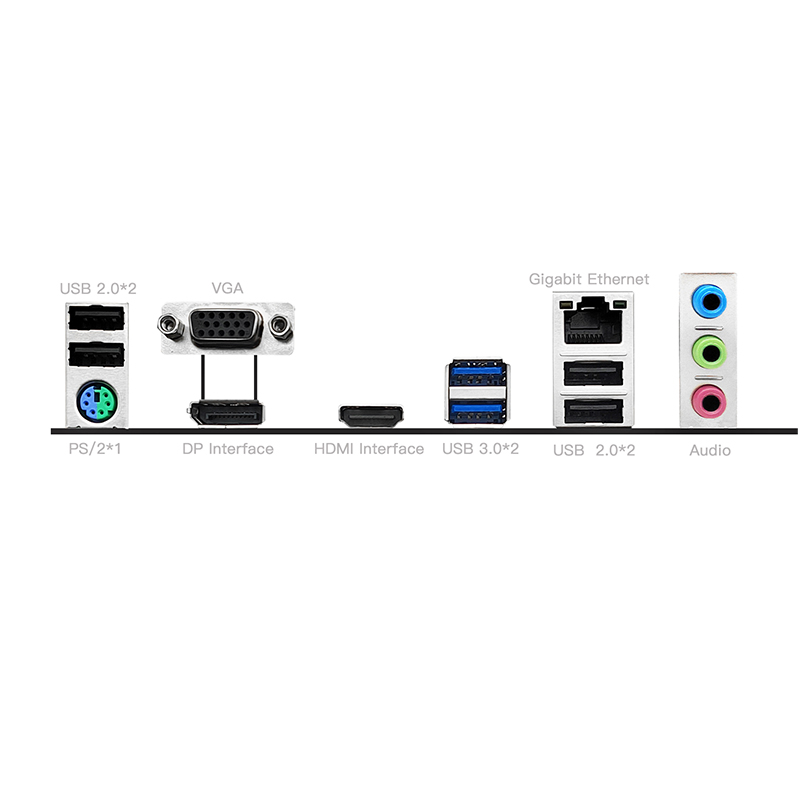

USB port: Rear USB3.0 x2/USB 2.0 x4,   Front USB2.0 x2/USB3.0 x1

Network port: Renesas 8111H Gigabit LAN Card
