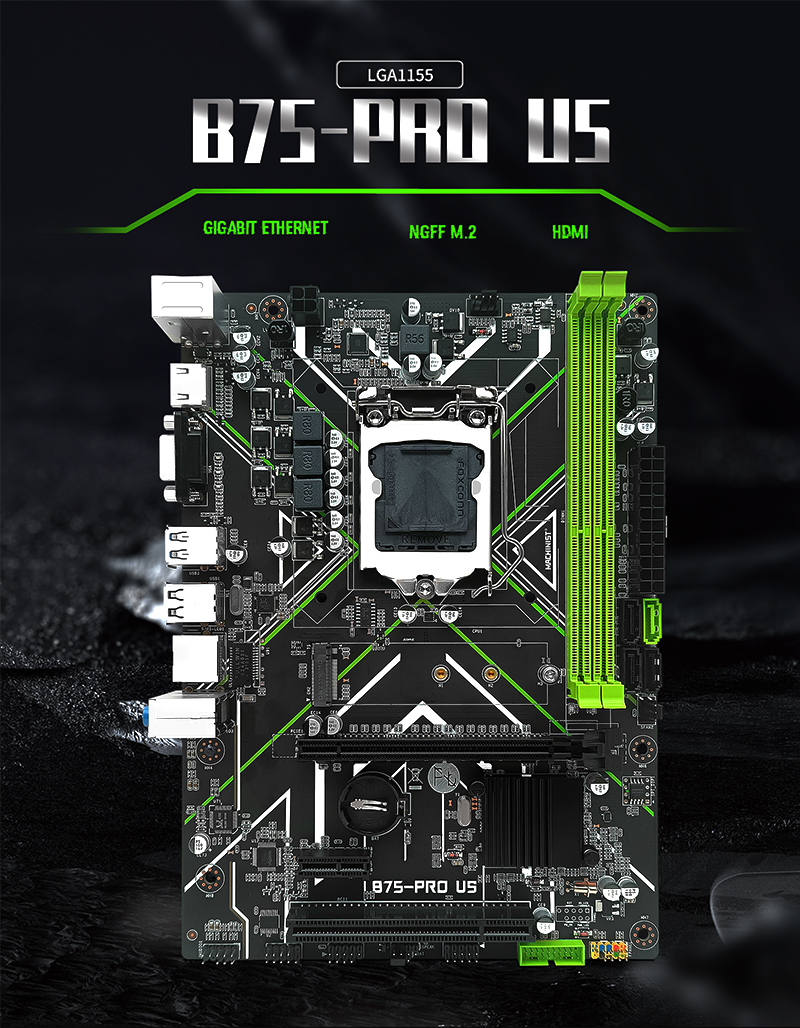

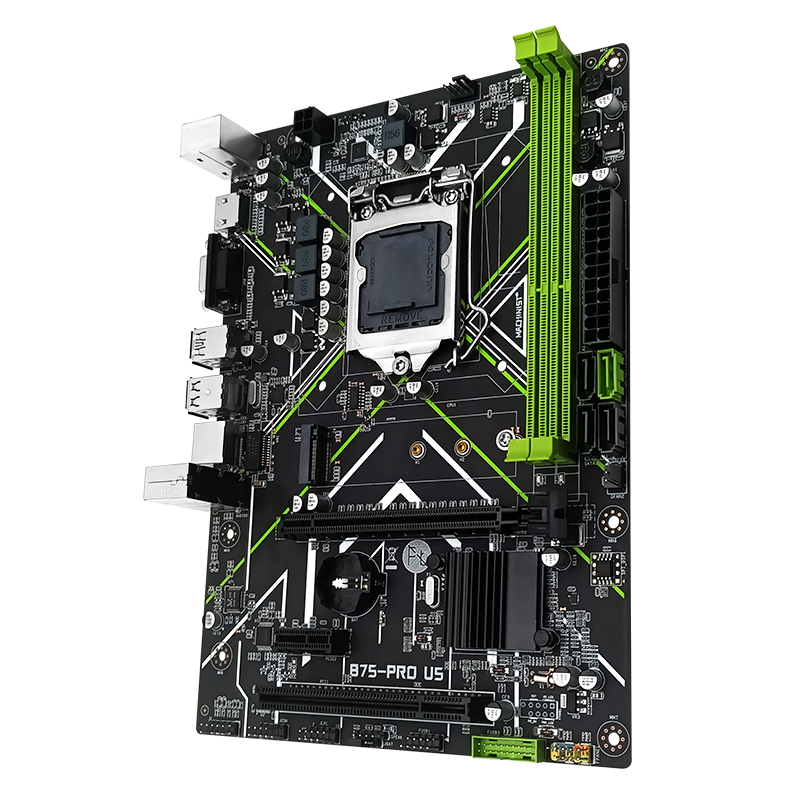

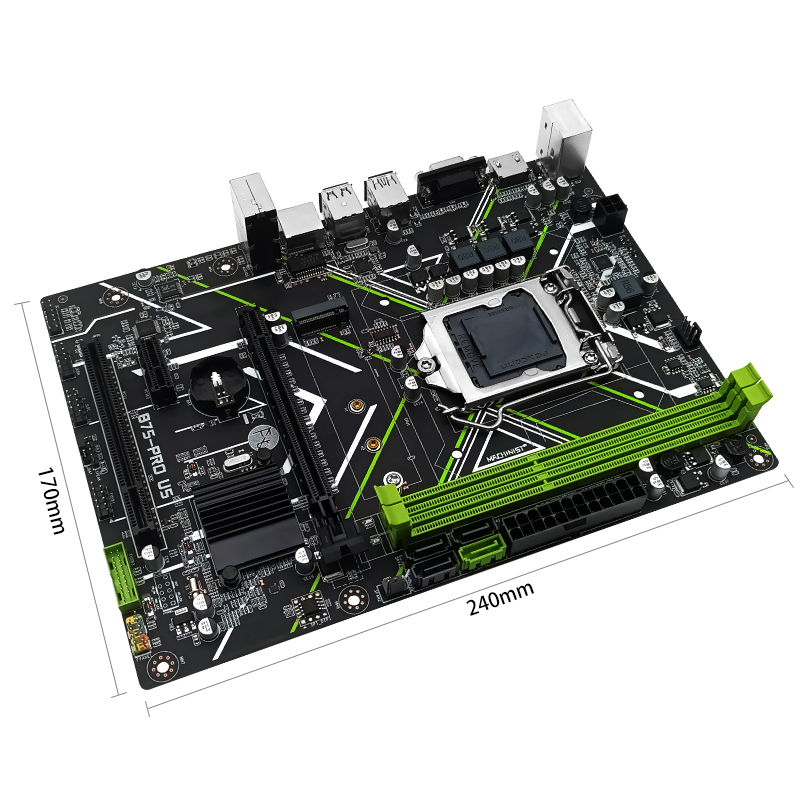

Size: M-ATX，  170mm*240mm

Chip:  Intel P75/B75

CPU Type: LGA1155 Series

Power supply: 4-phase direct power supply

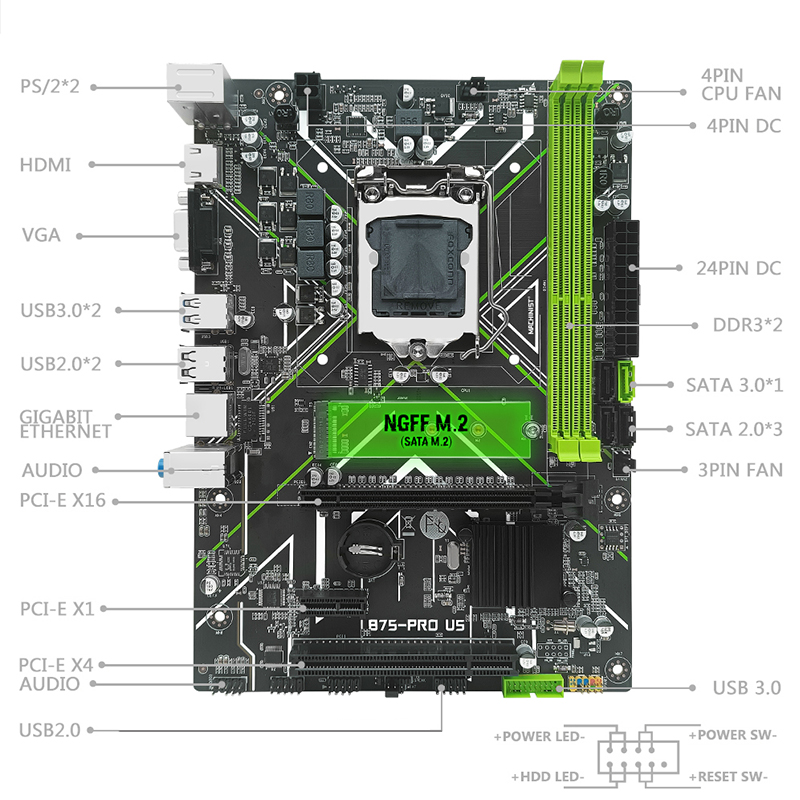

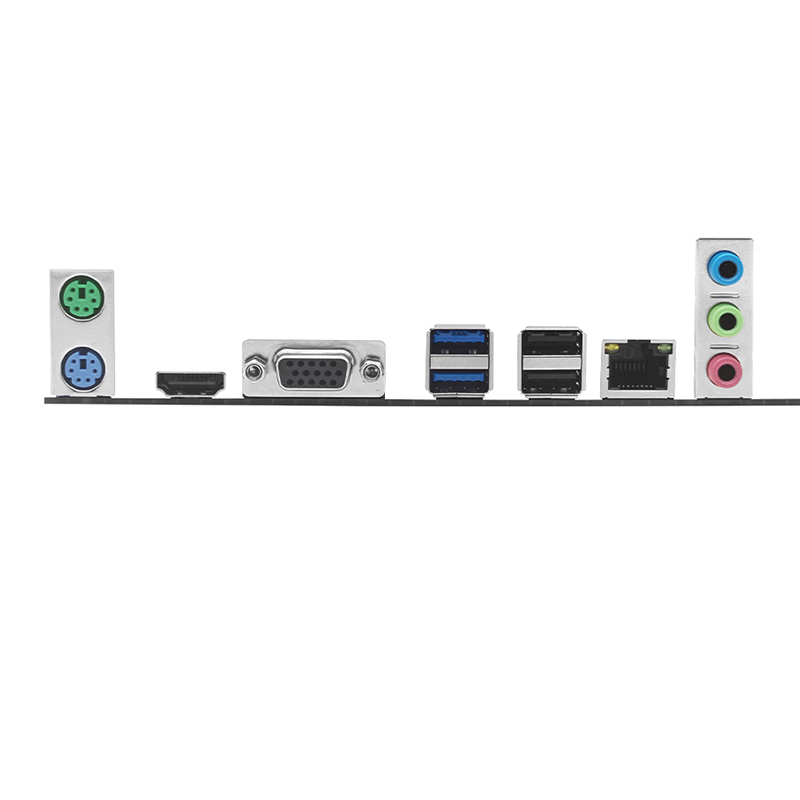

Display Interface: HDMI,   DP,   VGA

PCIE slots: PCle X16 slot x1,   PCle X4 slot x1,   PCle X1 slot x1

Storage ports: SATA M.2(NGFF),   SATA3.0 x1/SATA2.0 x3

Memory slot: DDR3 x2,   Dual Channel,   (8Gx2)16GB MAX，  Maximum support 1866MHz

Audio: Audio interface x2(front and rear),    Realtek ALC897 audio chip，   Supports 5.1 channels

Fan power supply ports: 3PIN System FAN x1，  4PIN CPU FAN x1

Power supply interface: 4PIN CPU powered x1,  24PIN Motherboard Power Supply x1

USB port: Rear USB3.0 x2/USB 2.0 x2,   Front USB2.0 x2/USB3.0 x1

Network port: Renesas 8111H Gigabit LAN Card
