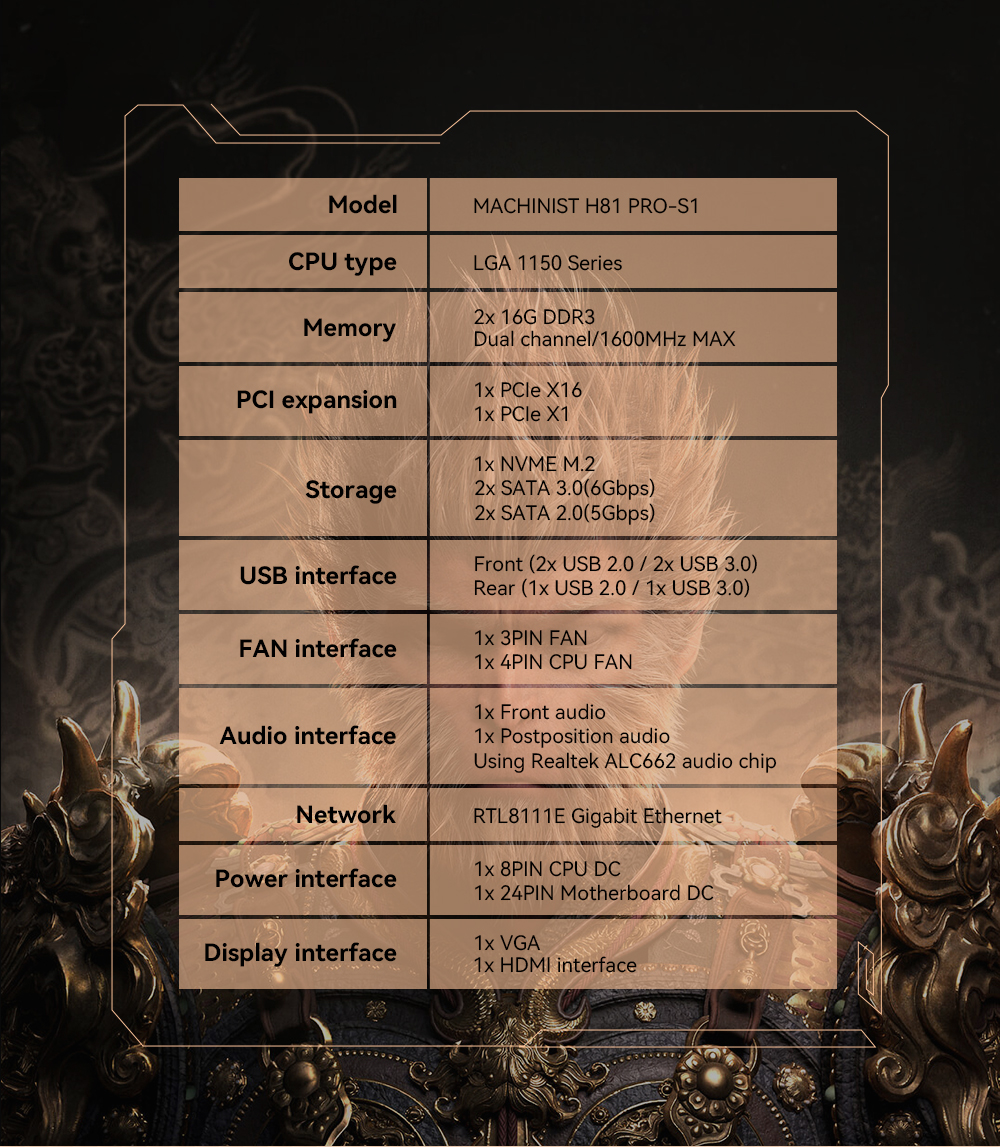

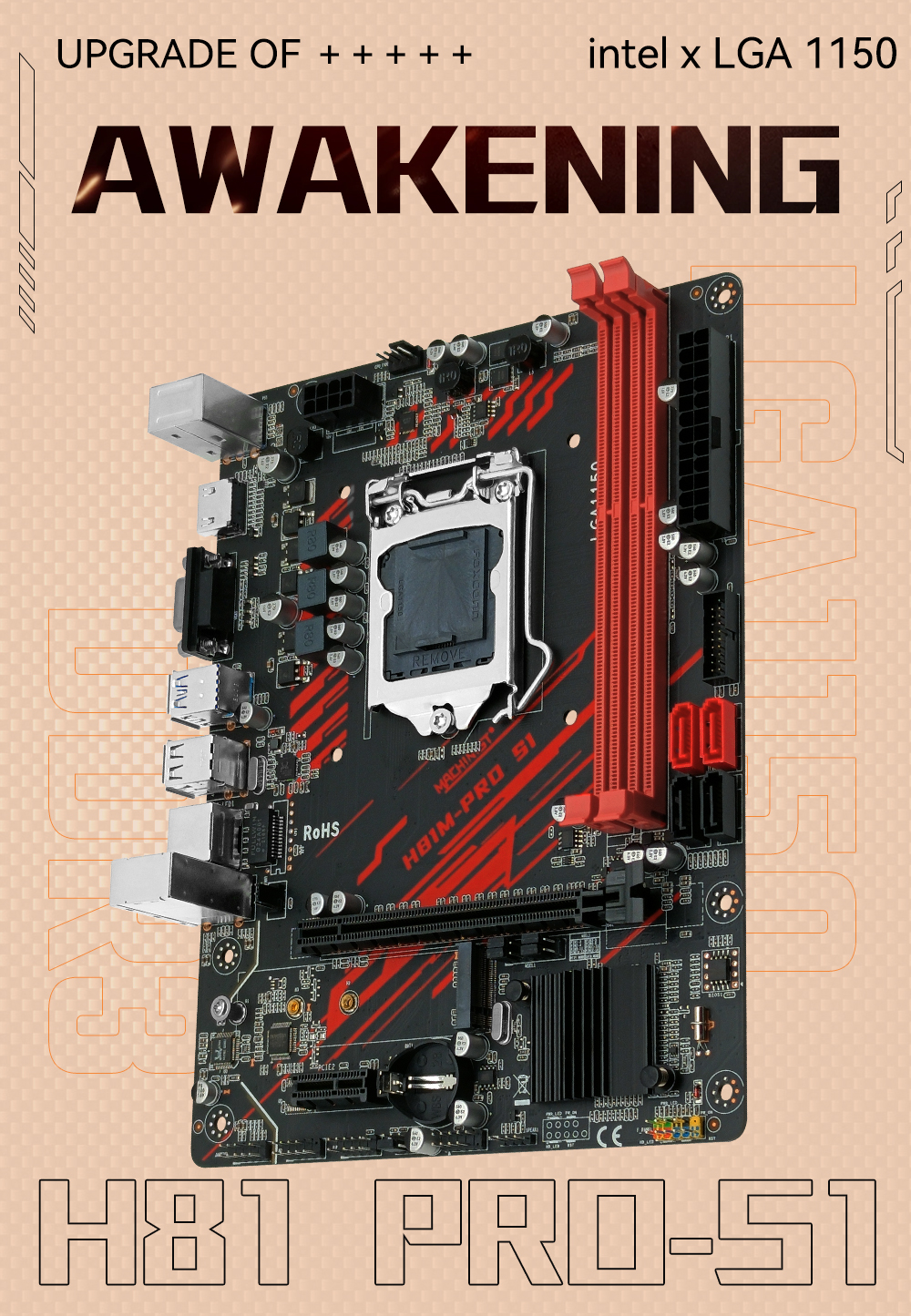

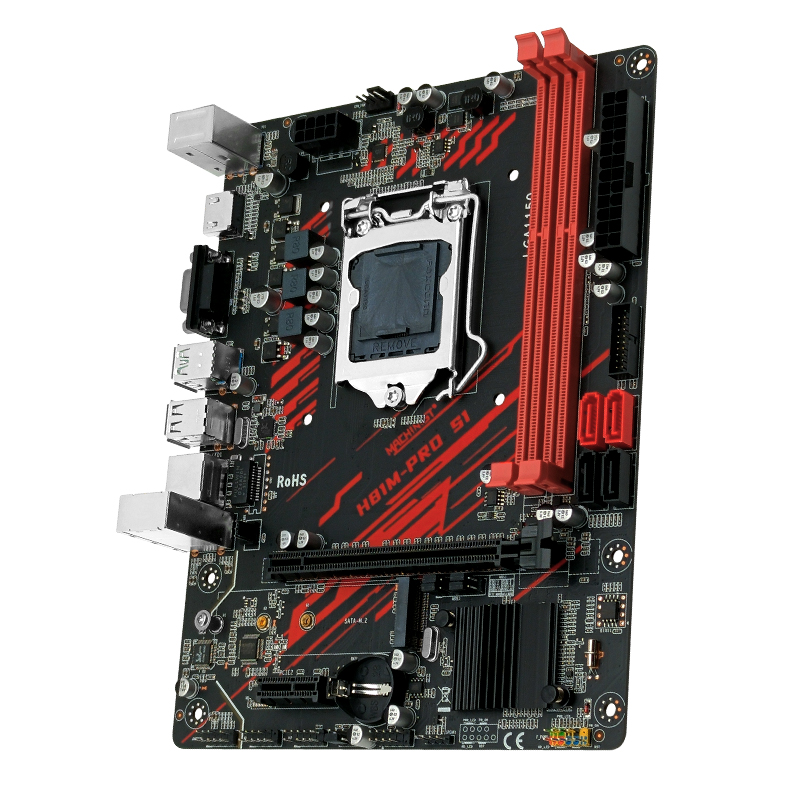

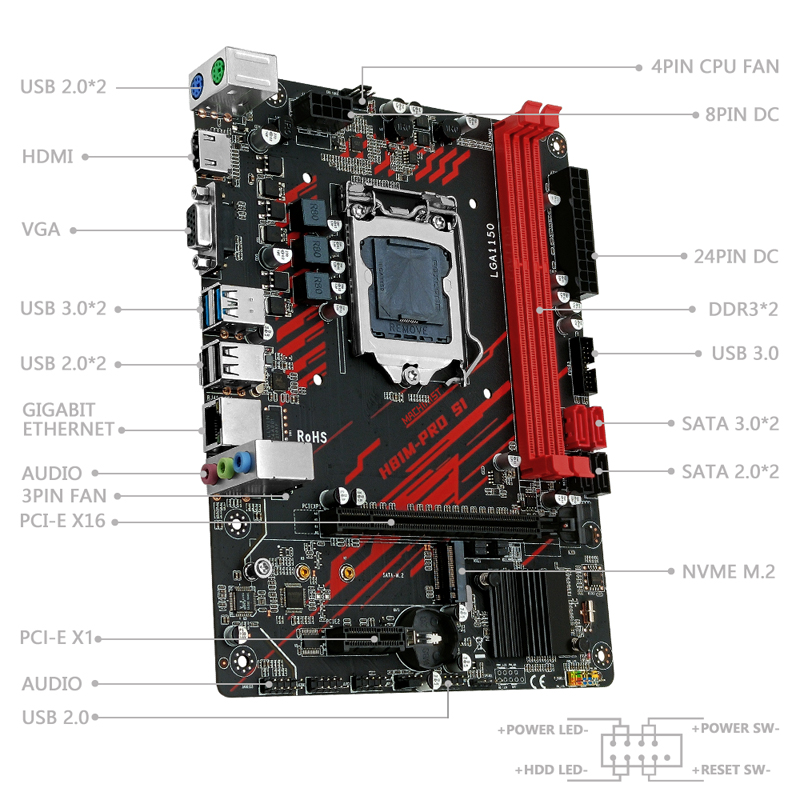

H81 PRO S1

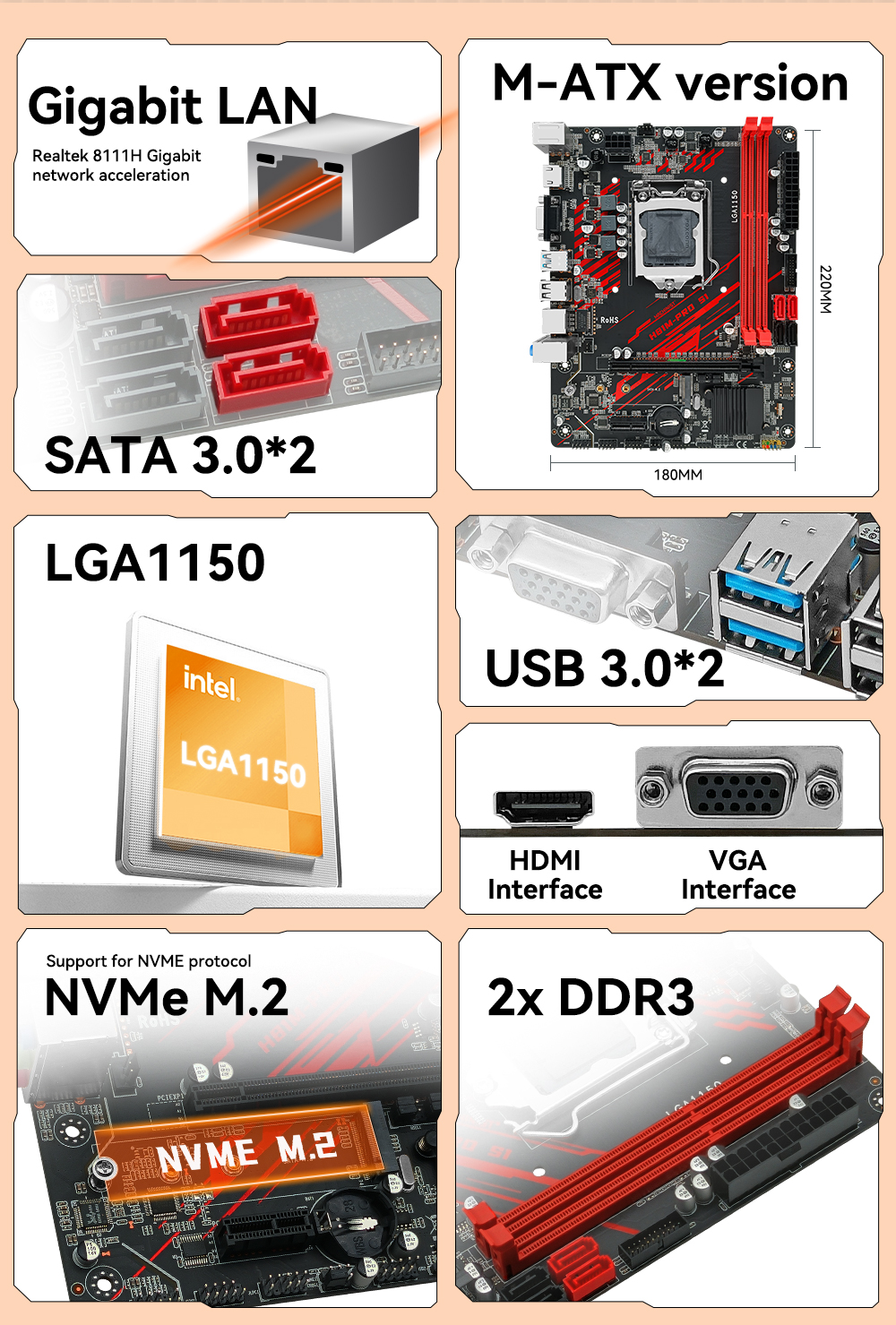

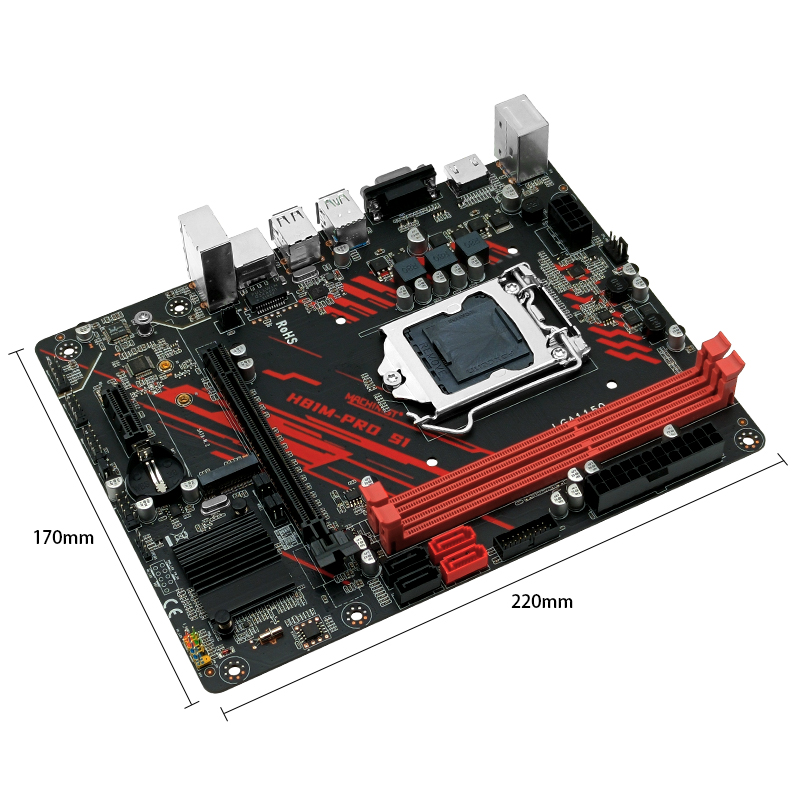

Size: M-ATX， 170mm*220mm
Chip: Intel H81
CPU Type: LGA1150 Series
Display Interface: HDMI, VGA

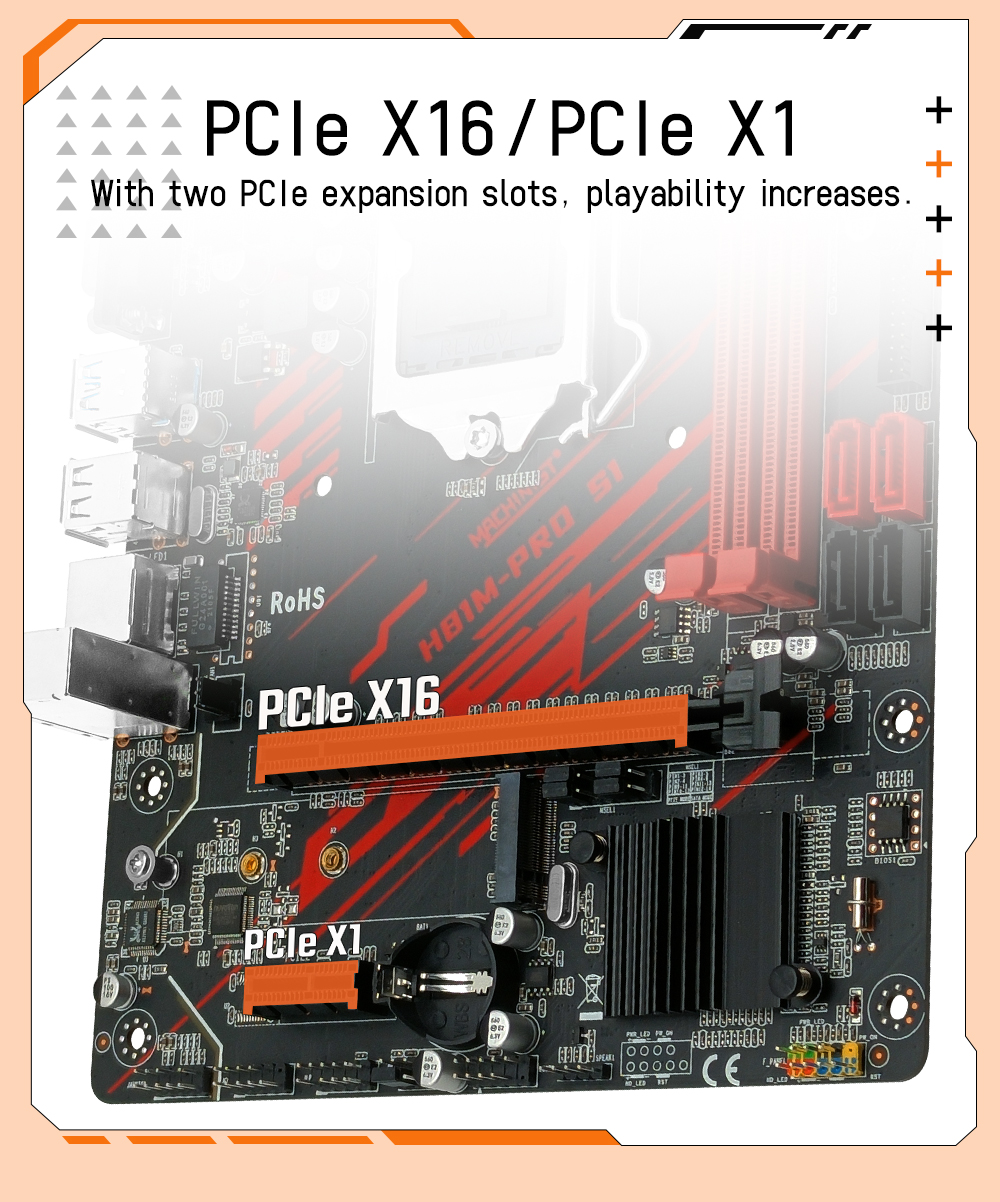

PCIE slots: PCle X16 slot x1, PCle X1 slot x1

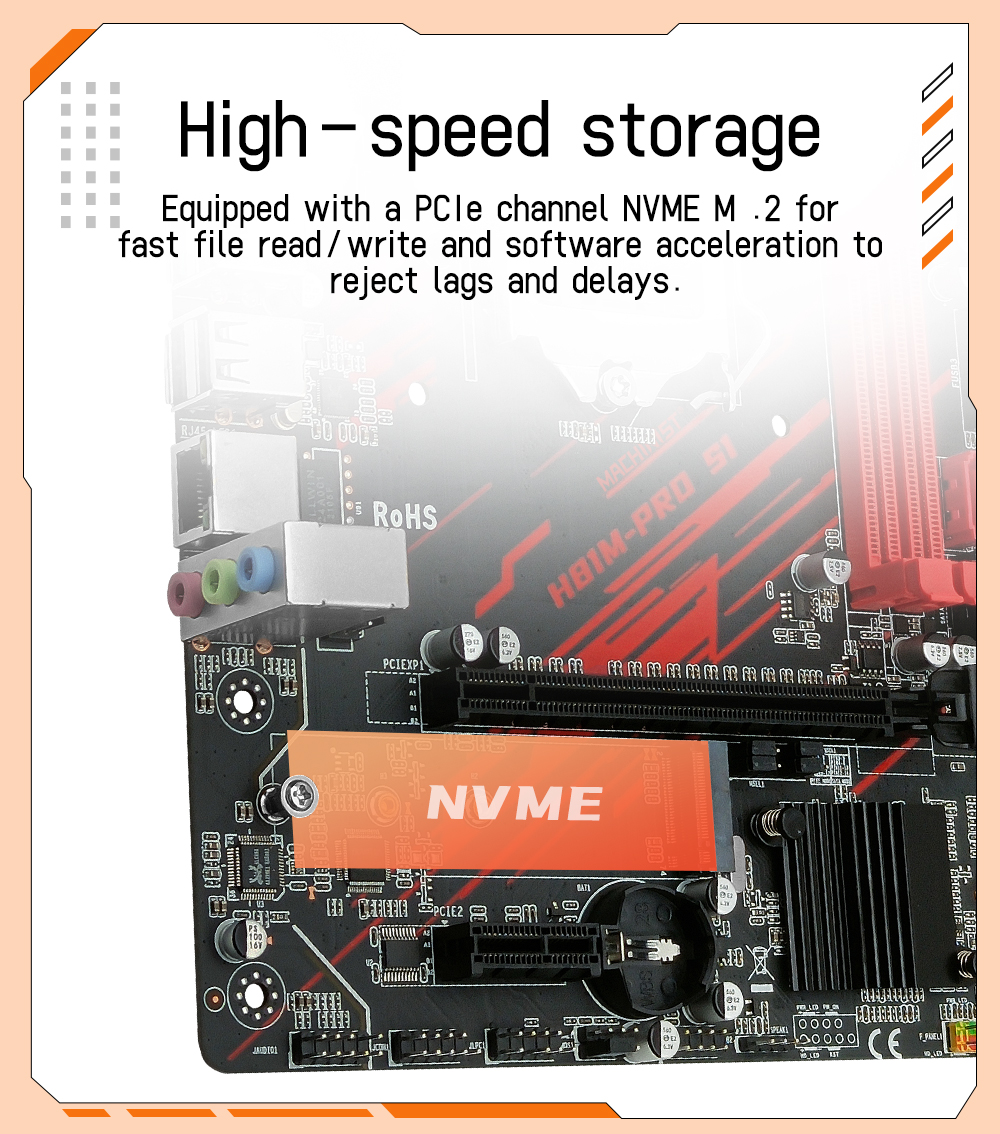

Storage ports: NVME M.2 x1, SATA3.0 x2/SATA2.0 x2

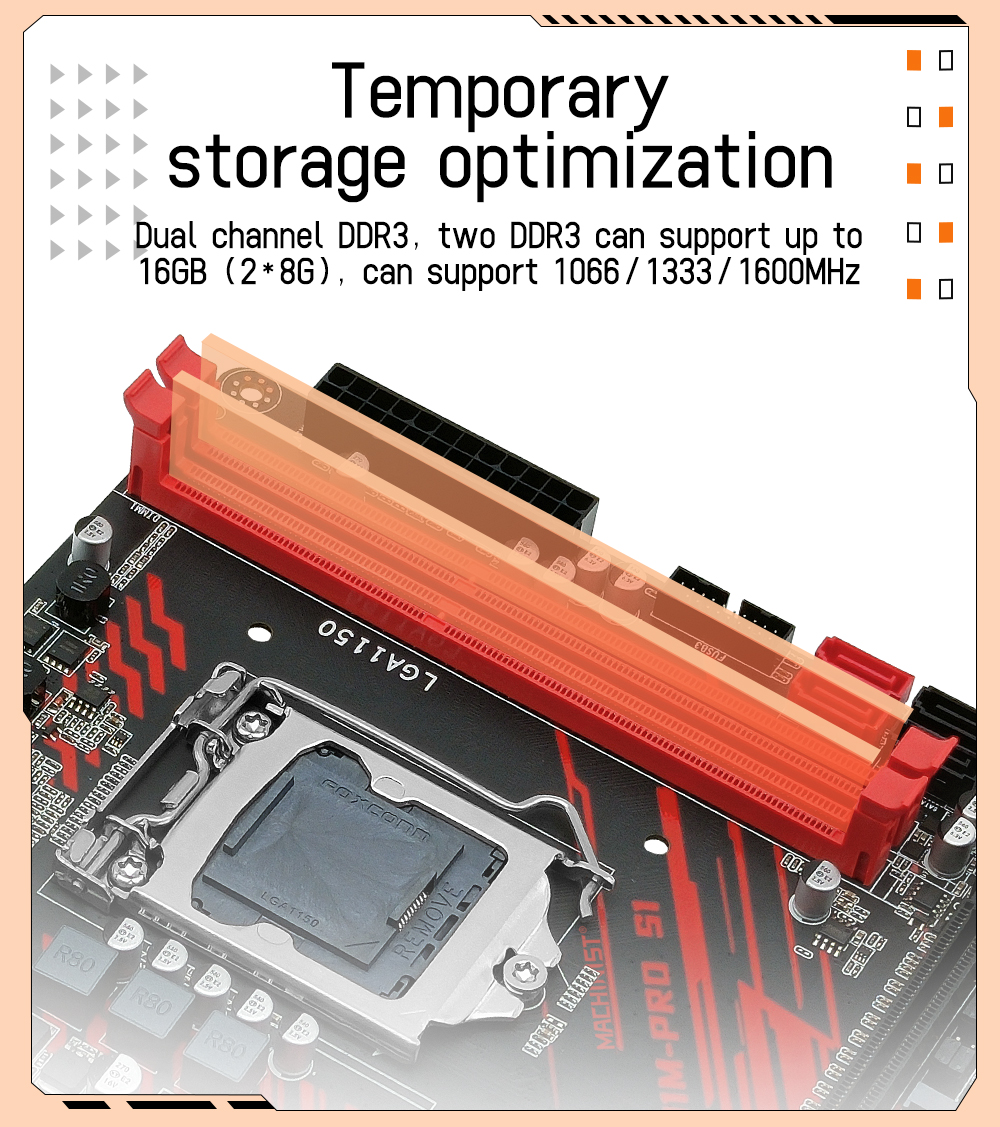

Memory slot: DDR3 x2, Dual Channel, (8Gx2)16GB MAX
Audio: Audio interface x2(front and rear), Realtek ALC887 audio chip， Supports 2.1 channels
Fan power supply ports: 3PIN System FAN x1， 4PIN CPU FAN x1
Power supply interface: 8PIN CPU powered x1, 24PIN Motherboard Power Supply x1

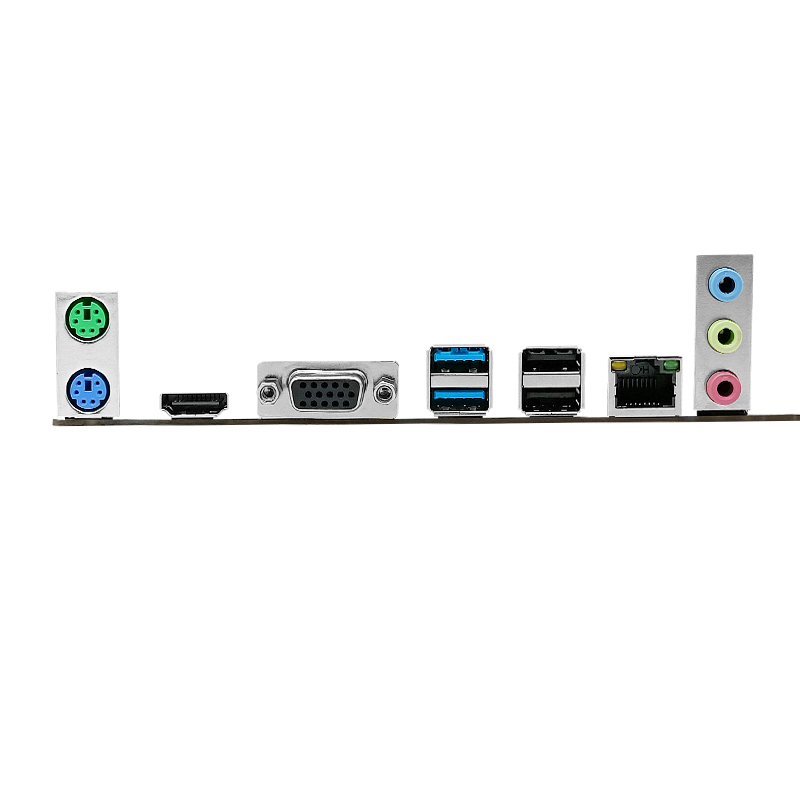

USB port: Rear USB3.0 x2/USB 2.0 x2, Front USB2.0 x2/USB3.0 x1
Network port: Renesas 8111H Gigabit LAN Card
