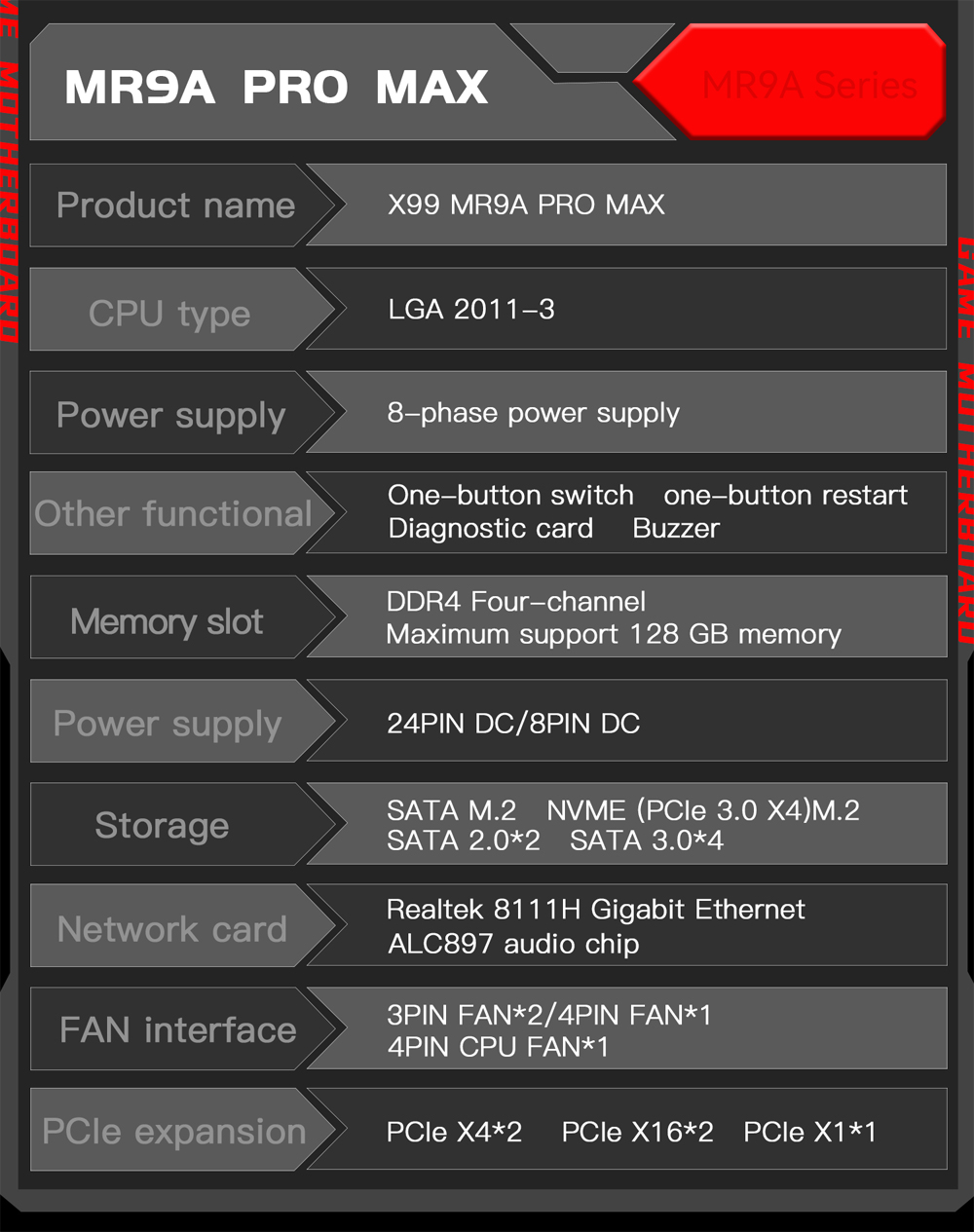

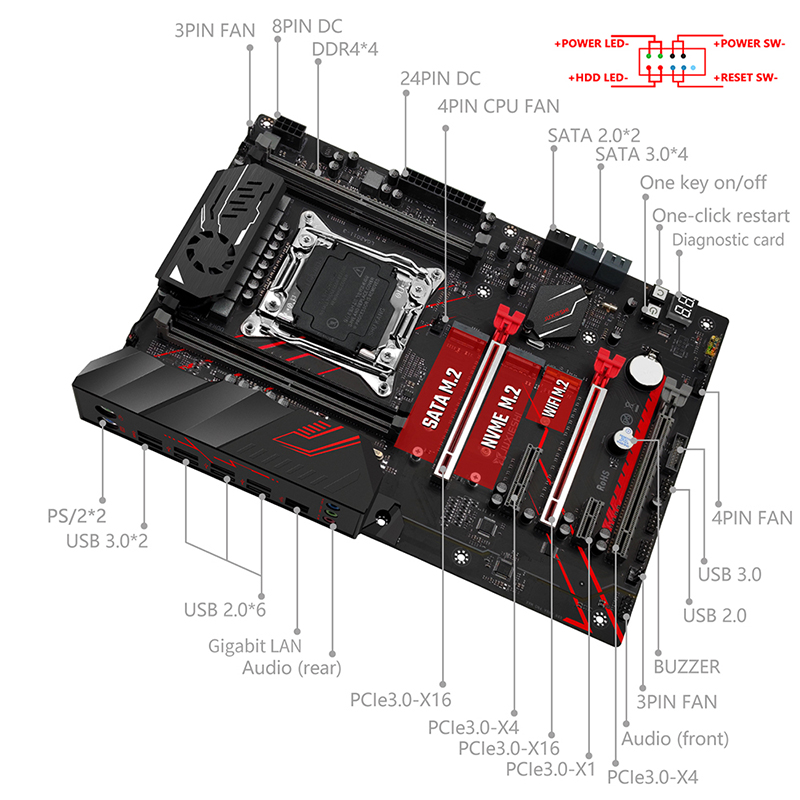

CPU Type: LGA2011-3 series

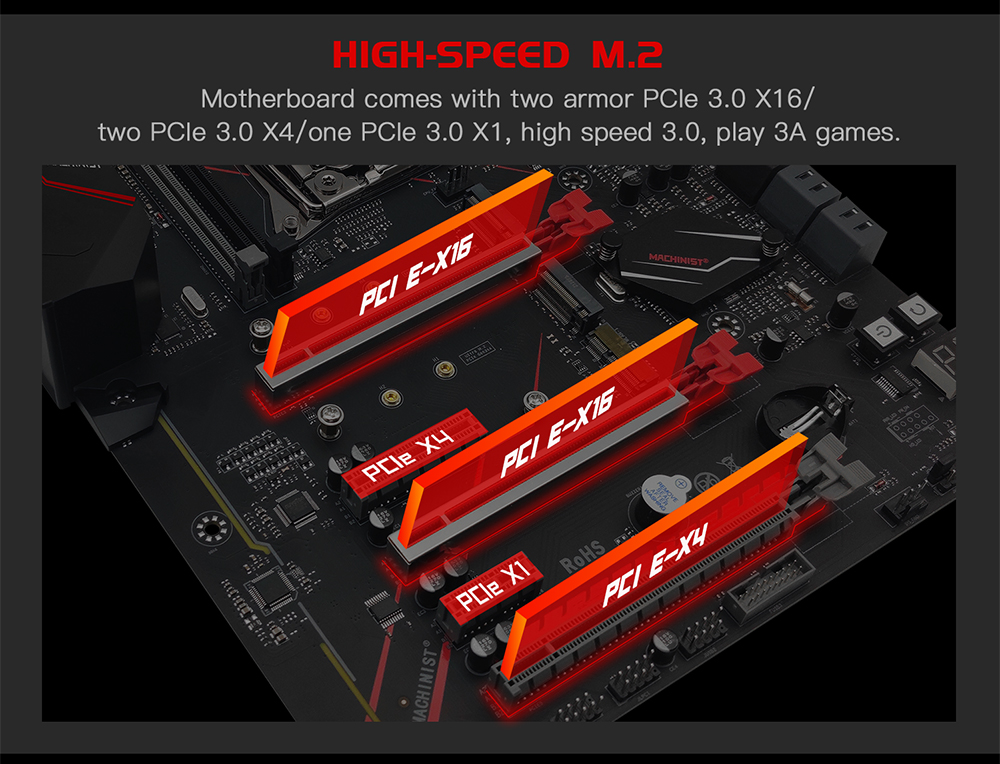

PCIE slots: PCleX16 slot x3,  PCleX1 slot x1,  PCleX4 slot x1

Storage ports: NVME(PCIE 3.0 x 4) M.2,  SATA(NGFF)M.2,  SATA3.0 x4,  SATA2.0 x2

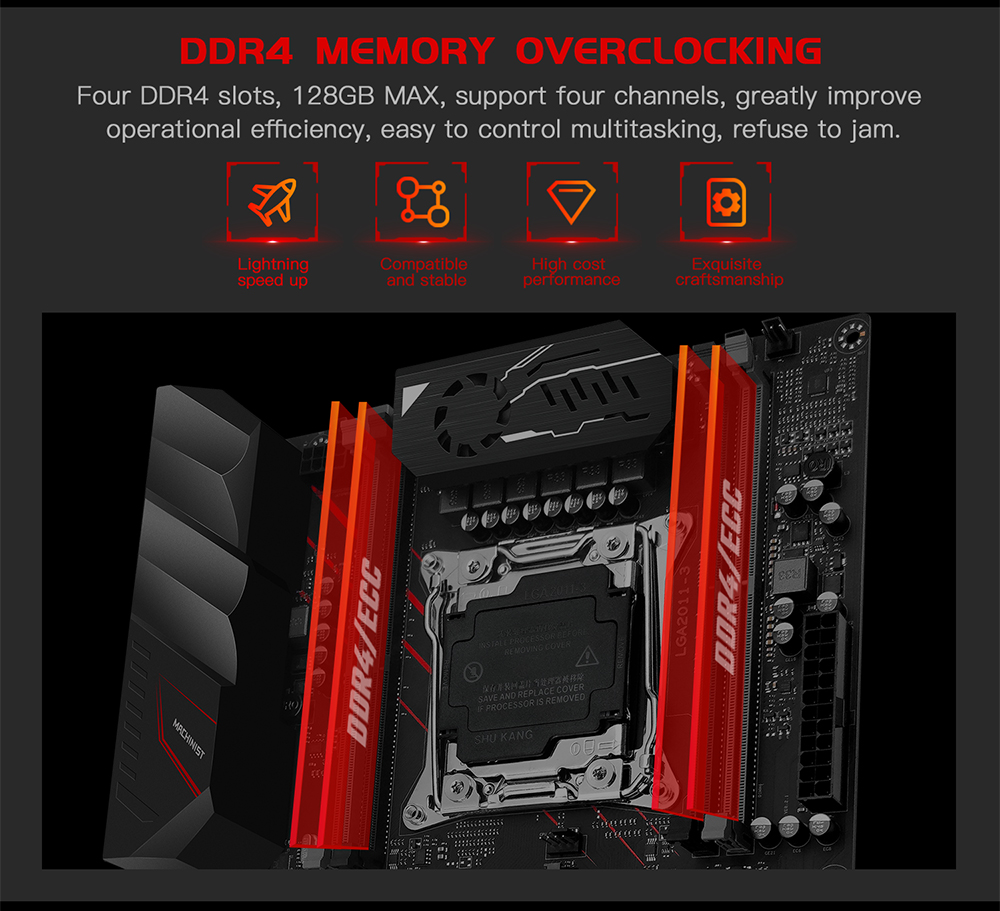

Memory slot: （ECC/REG）DDR4 x4, Four channels, (32G*4)128G MAX, 2400MHz MAX

Audio: Audio interface x2(front and rear),  Realtek LAC897 chip

Fan power supply ports: 3PIN System Fan x2,  4PIN System Fan x2,  4PIN CPU FAN x1, 2PIN 5V FAN x2

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

USB port: Rear USB2.0 x 6/USB3.0 x 4,  Front USB2.0 x 1/USB3.0 x 1

Network port: Realtek 8111H Gigabit network port,  WiFi M.2

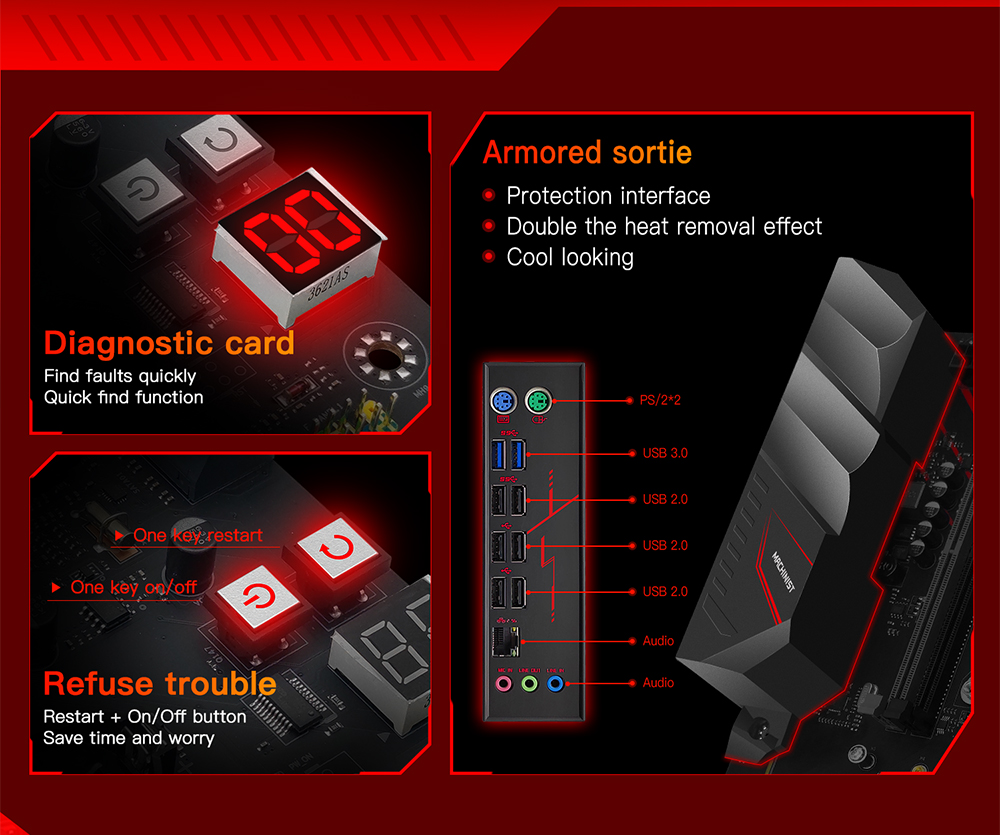

Functional interface: Diagnostic card,  Buzzer

ON/OFF: One-touch on/off, One-click restart
