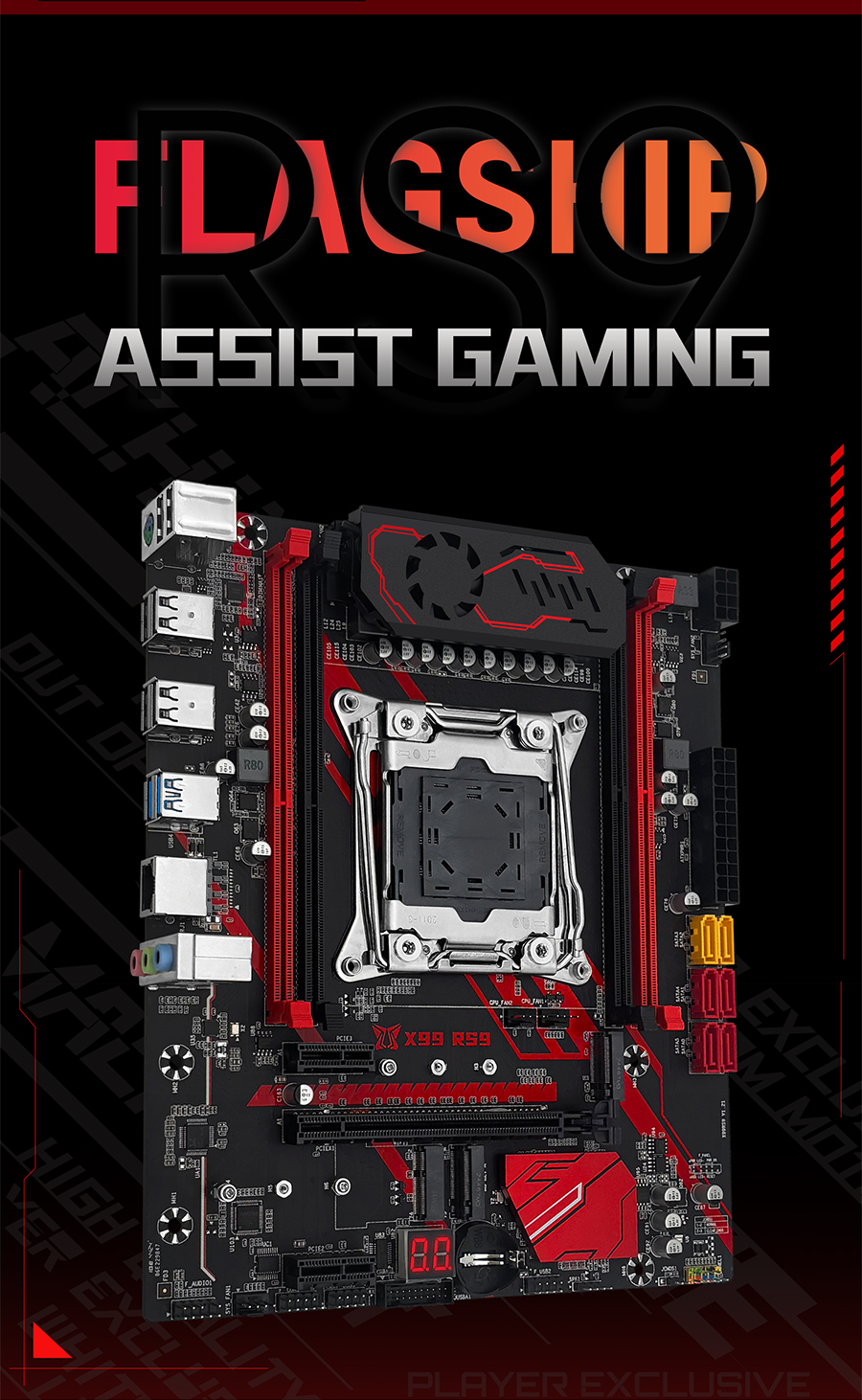

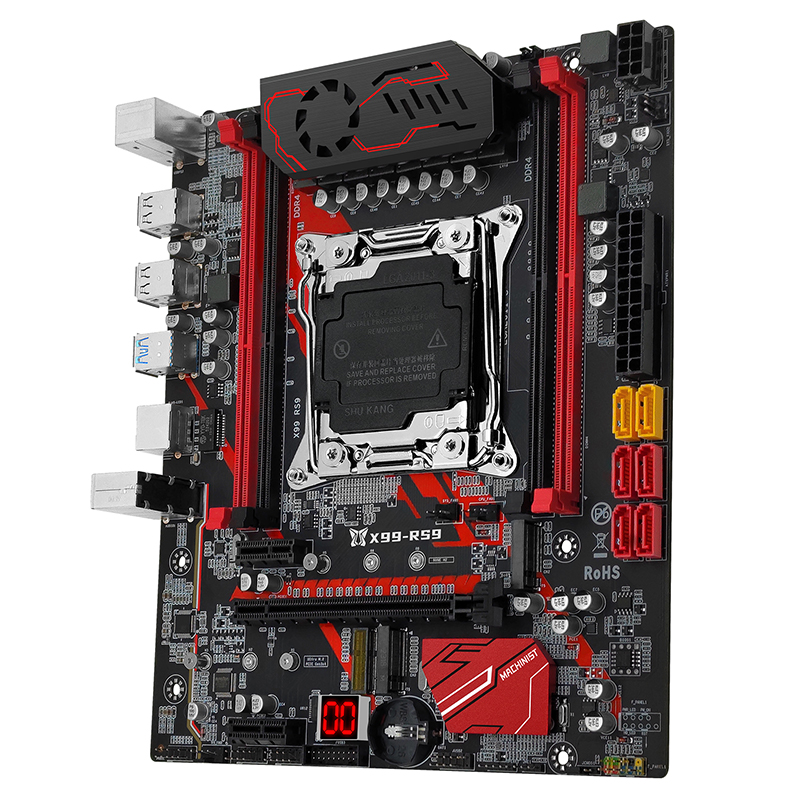

X99-RS9

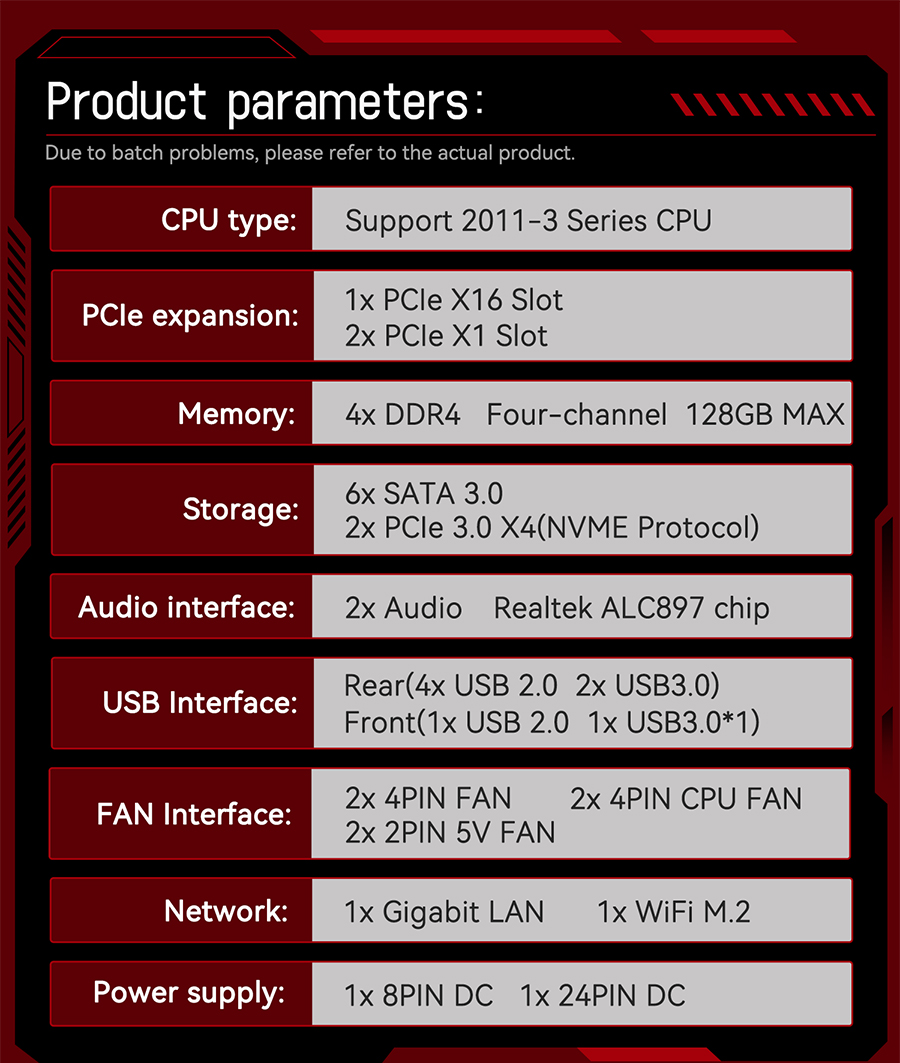

CPU Type: LGA2011-3 series

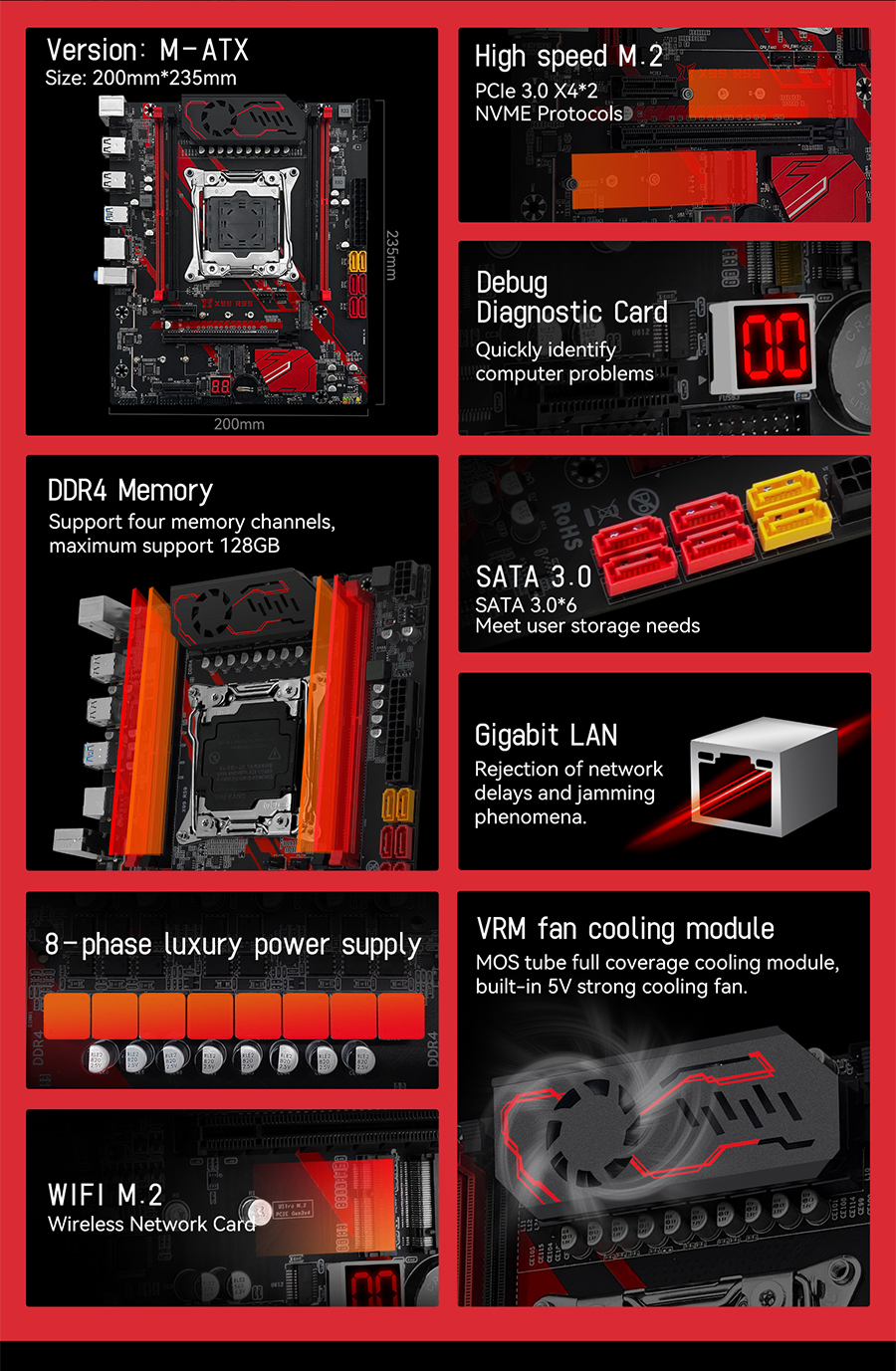

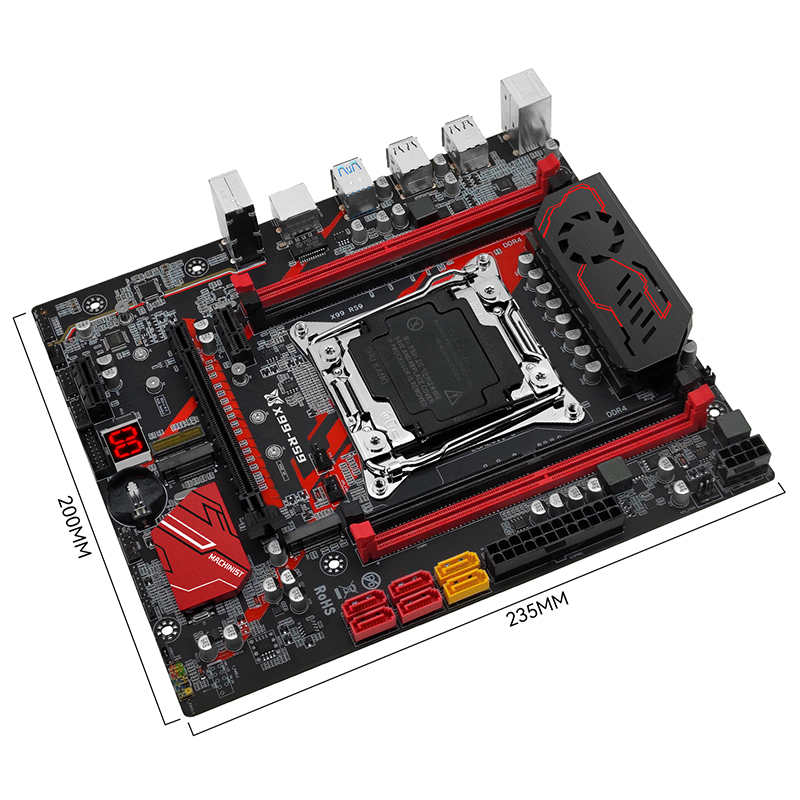

Size: M-ATX， 200x235mm
No graphics card startup: supported
Virtualization: Support

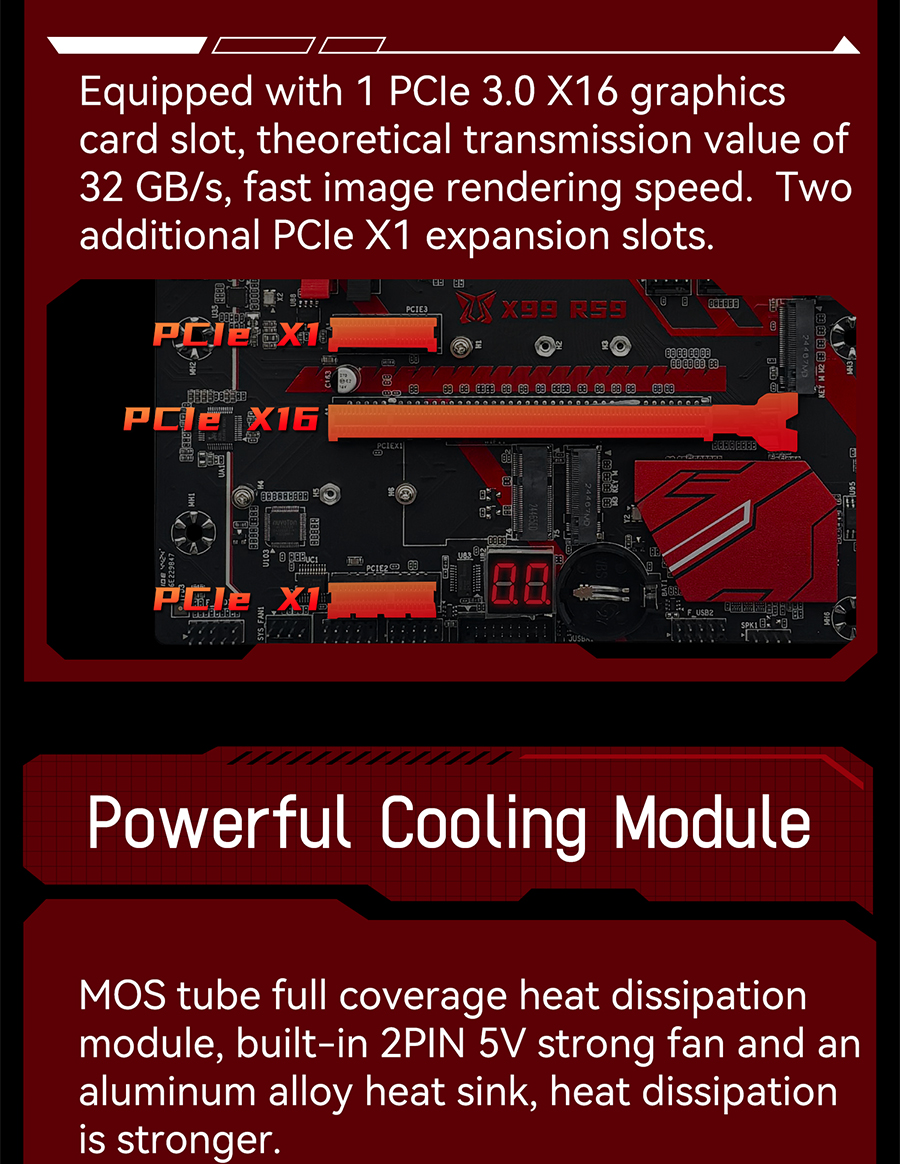

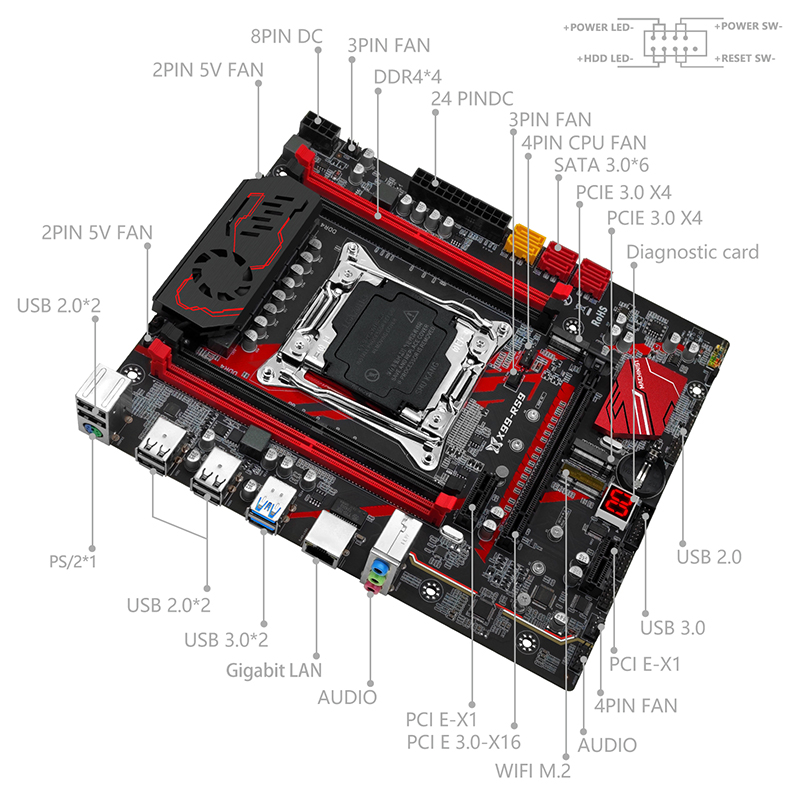

PCIE slots: PCleX16 slot x3, PCleX1 slot x2

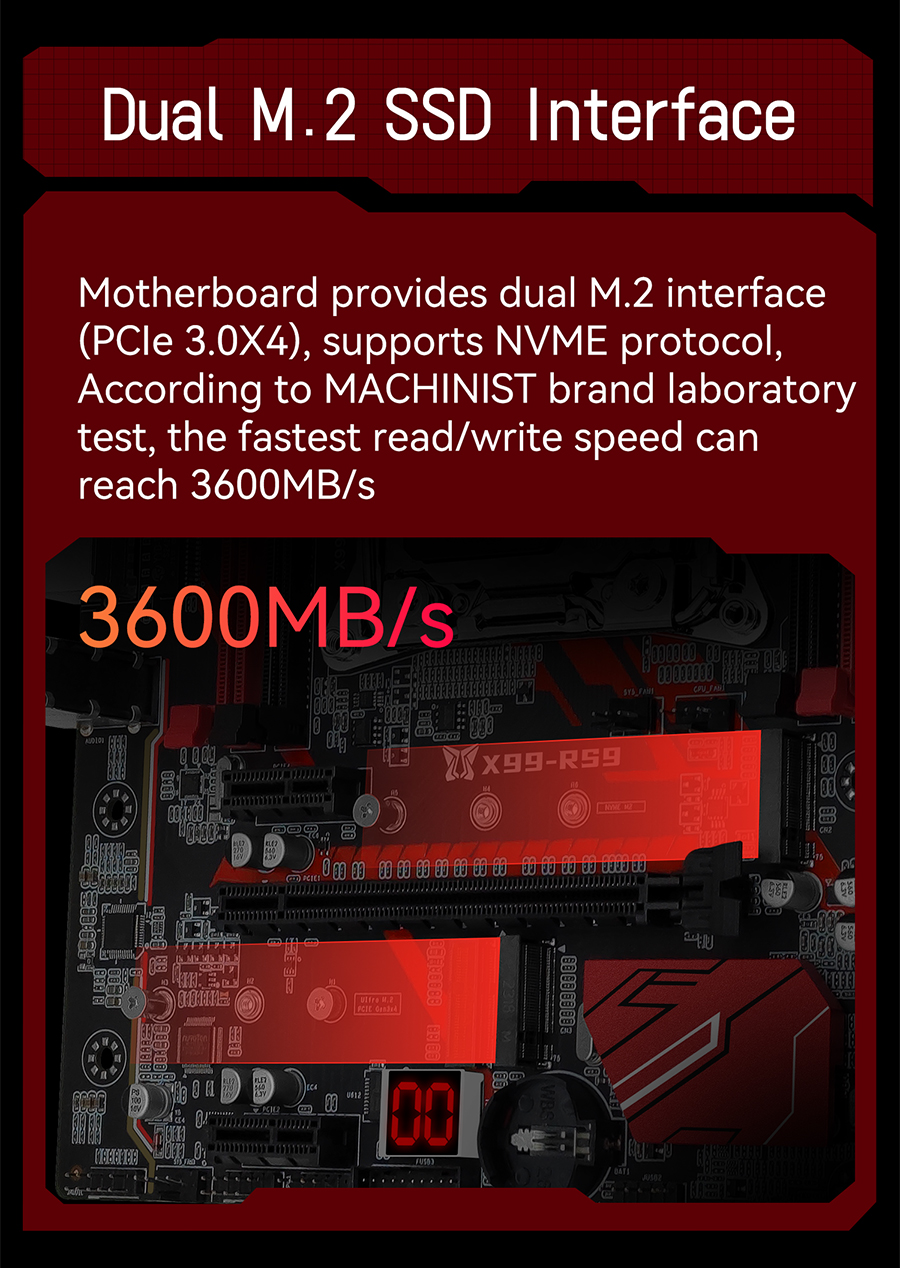

Storage ports: NVME(PCIE 3.0 X4) M.2 x2, SATA3.0 x6

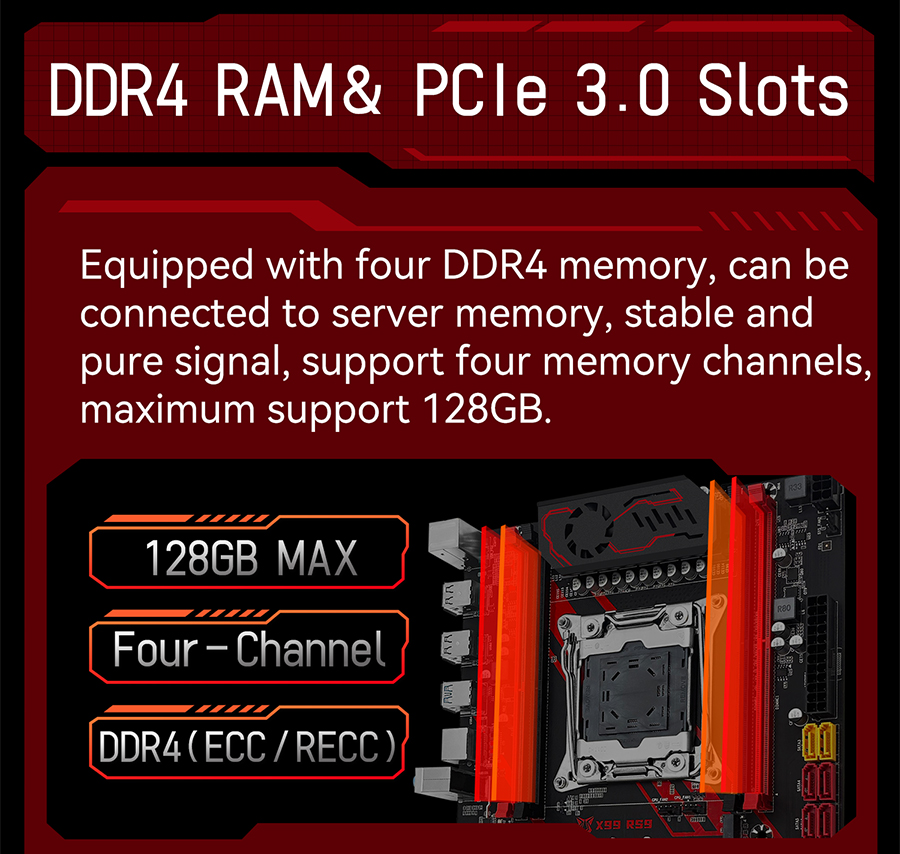

Memory slot: （ECC/REG）DDR4 x4, Four channels, (32G*4)128G MAX, 2400MHz MAX
Audio: Audio interface x2(front and rear), Realtek LAC897 chip

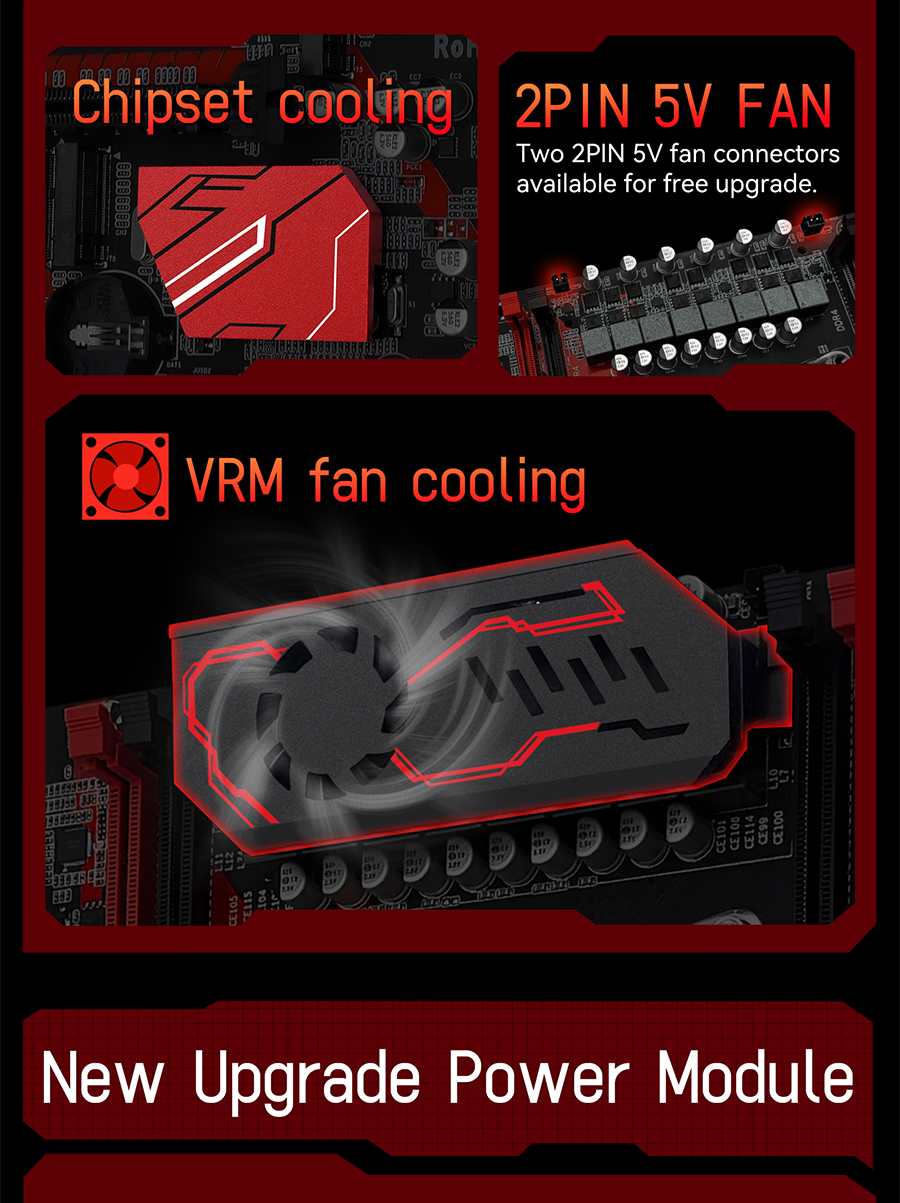

Fan power supply ports: 3PIN System Fan x1, 4PIN System Fan x1, 4PIN CPU FAN x2, 2PIN 5V FAN x2

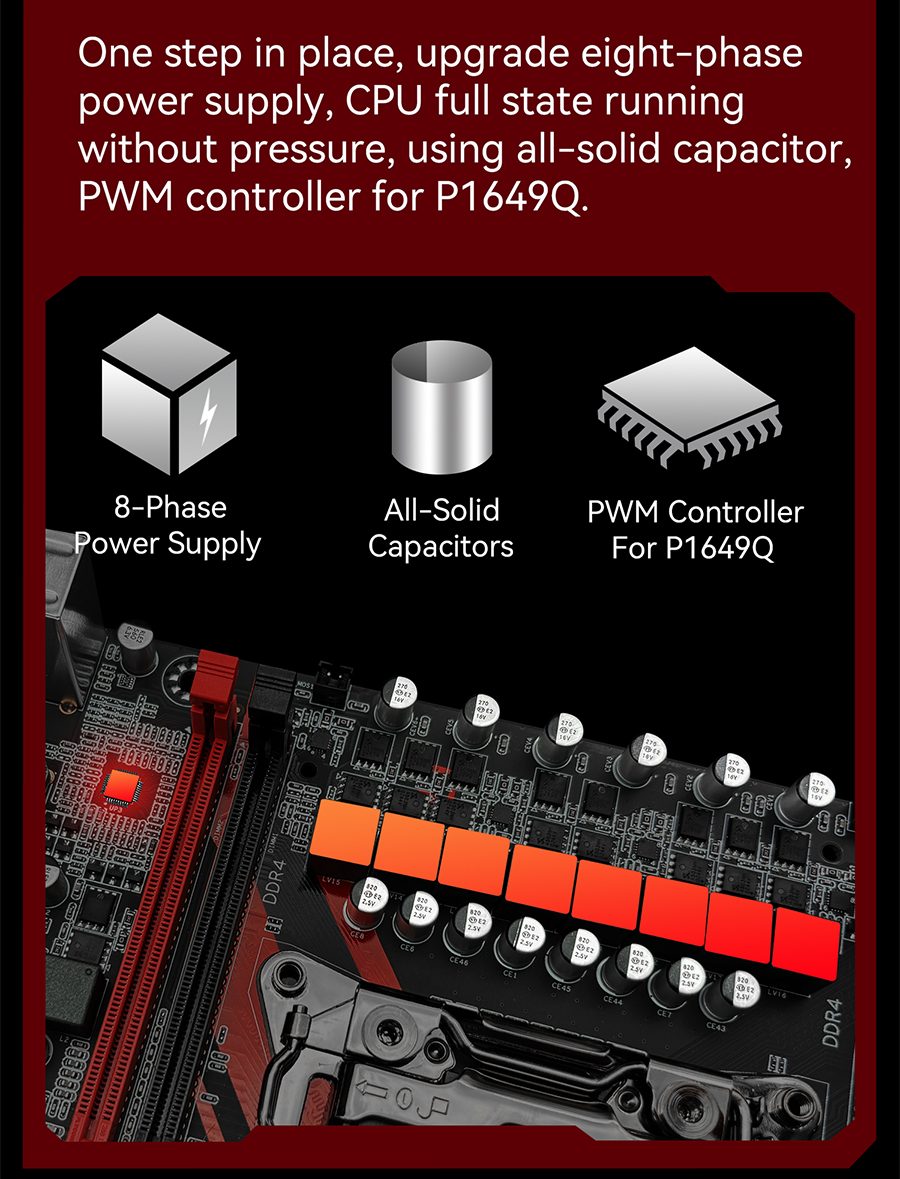

Power supply interface: 8PIN CPU powered x1, 24PIN Motherboard Power Supply x1

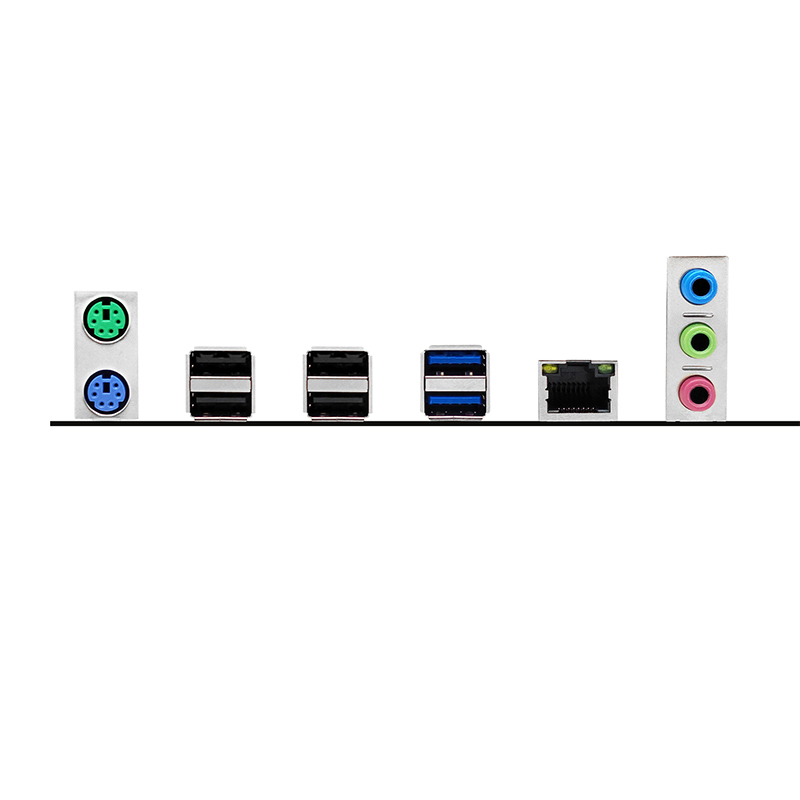

USB port: Rear USB2.0 x6/USB3.0 x2, Front USB2.0 x2/USB3.0 x 1
Network port: Realtek 8111H Gigabit network port, WiFi M.2
Functional interface: Diagnostic card
