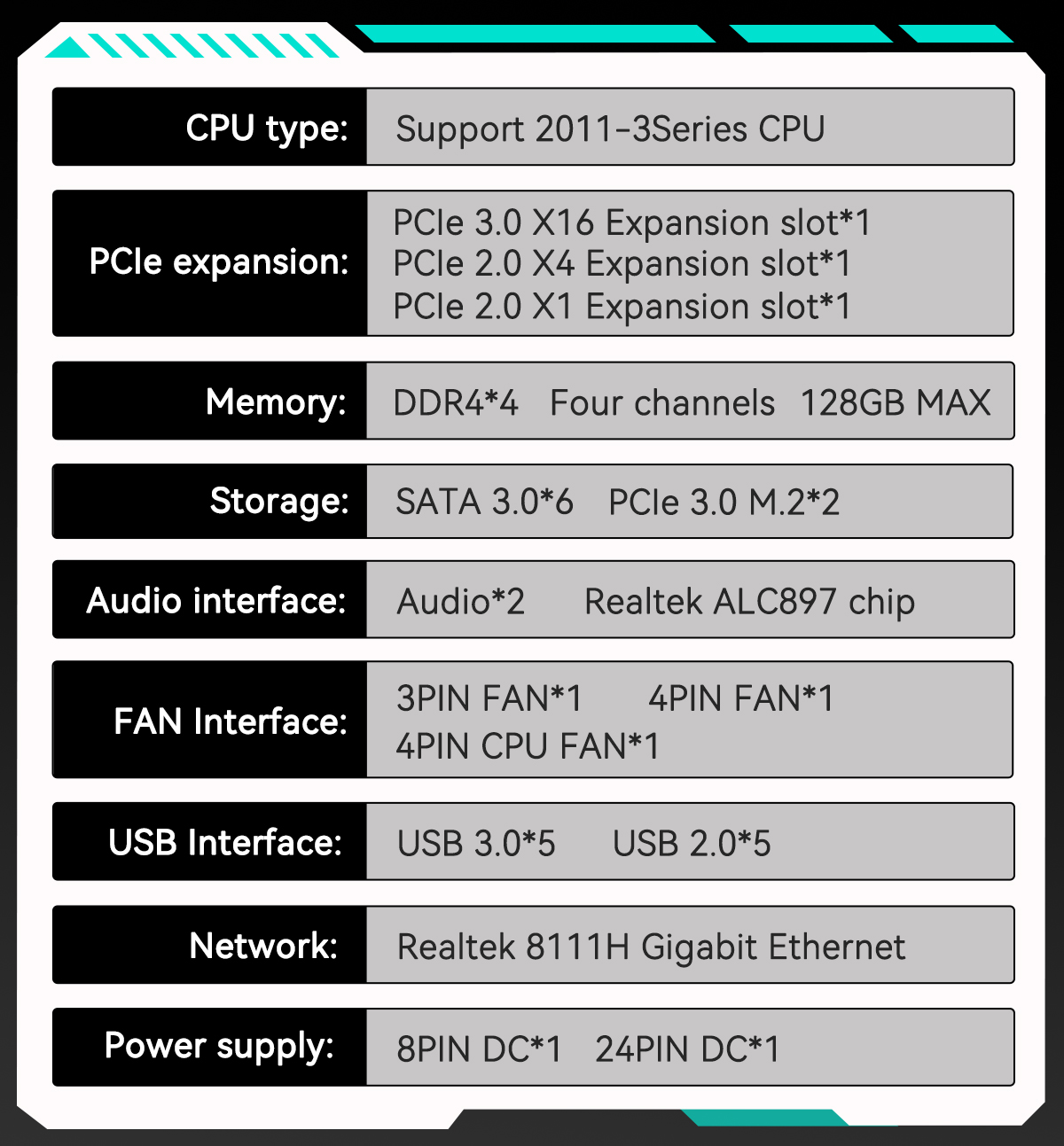

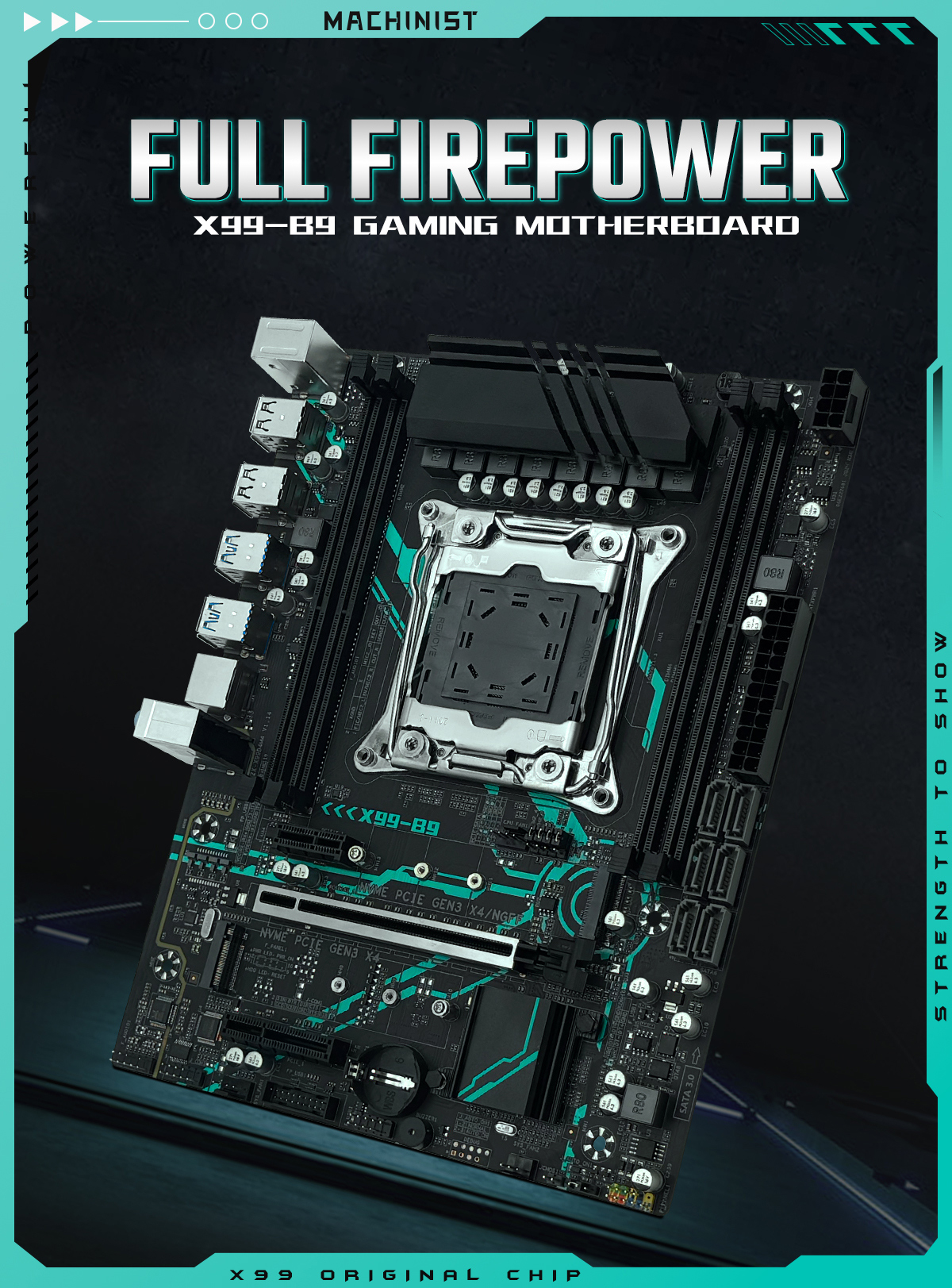

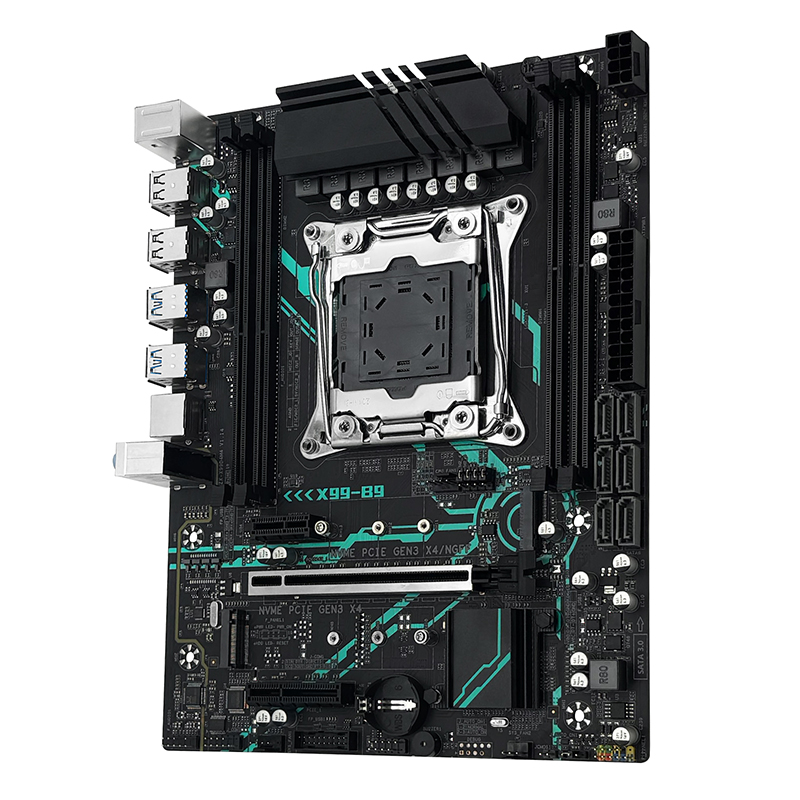

Model: X99-B9

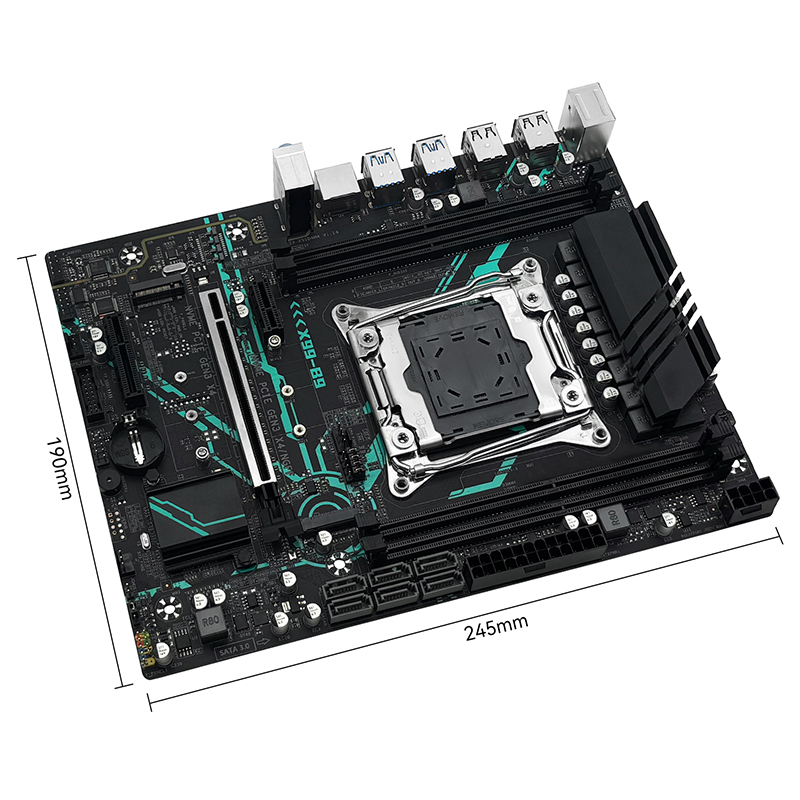

Size: M-ATX， 190mm*245mm

Chip: Intel C612

CPU Type: LGA2011-3 series

Diskless boot: supported

No graphics card startup: supported

Virtualization: Support

Power-on self-start: support

RAID: Support

Above 4G Decoding: Support

Re-Size BAR Decoding: Support

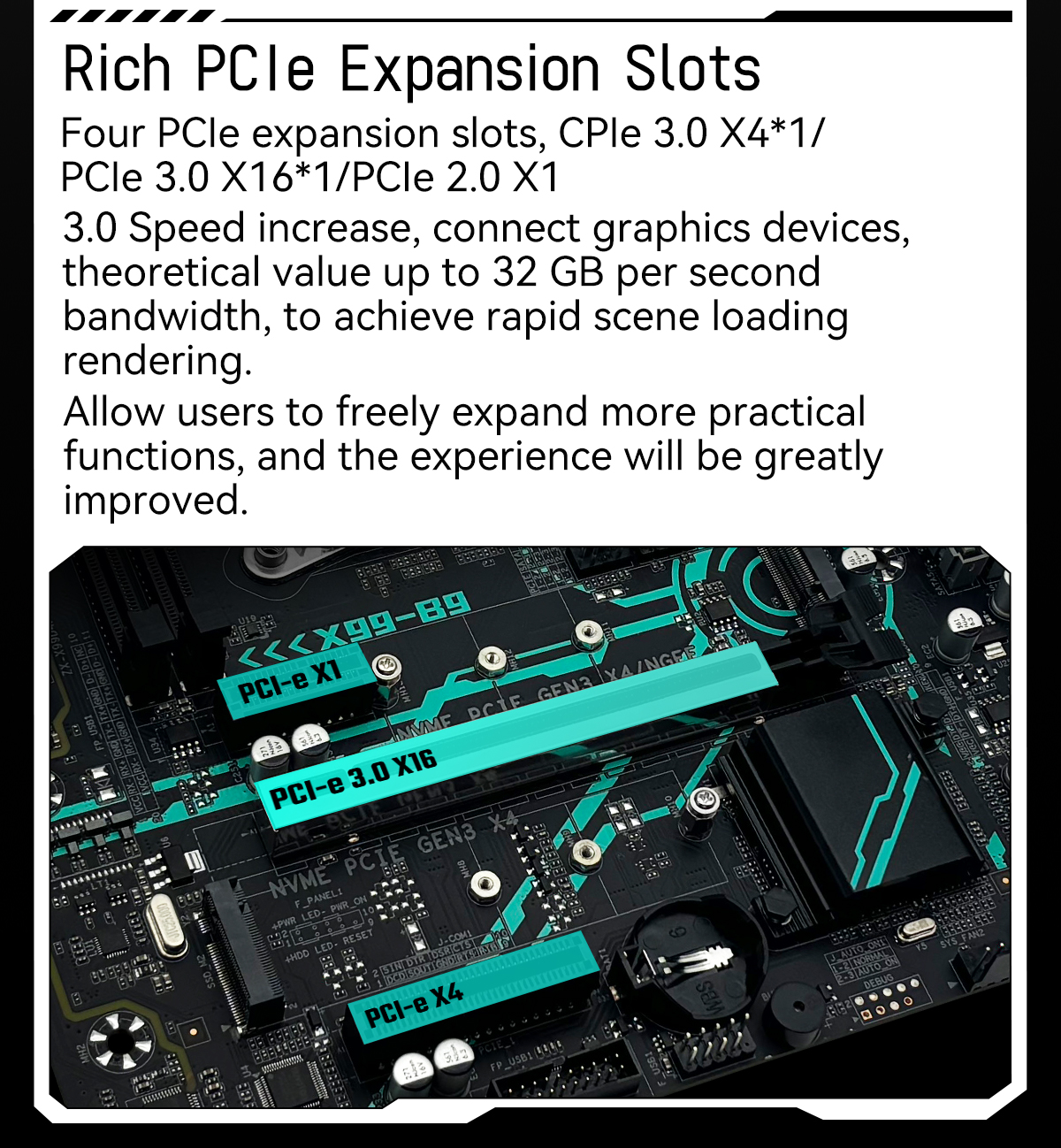

PCIE slots: PCleX16 slot x1,  PCleX4 slot x1， PCleX1 slot x1

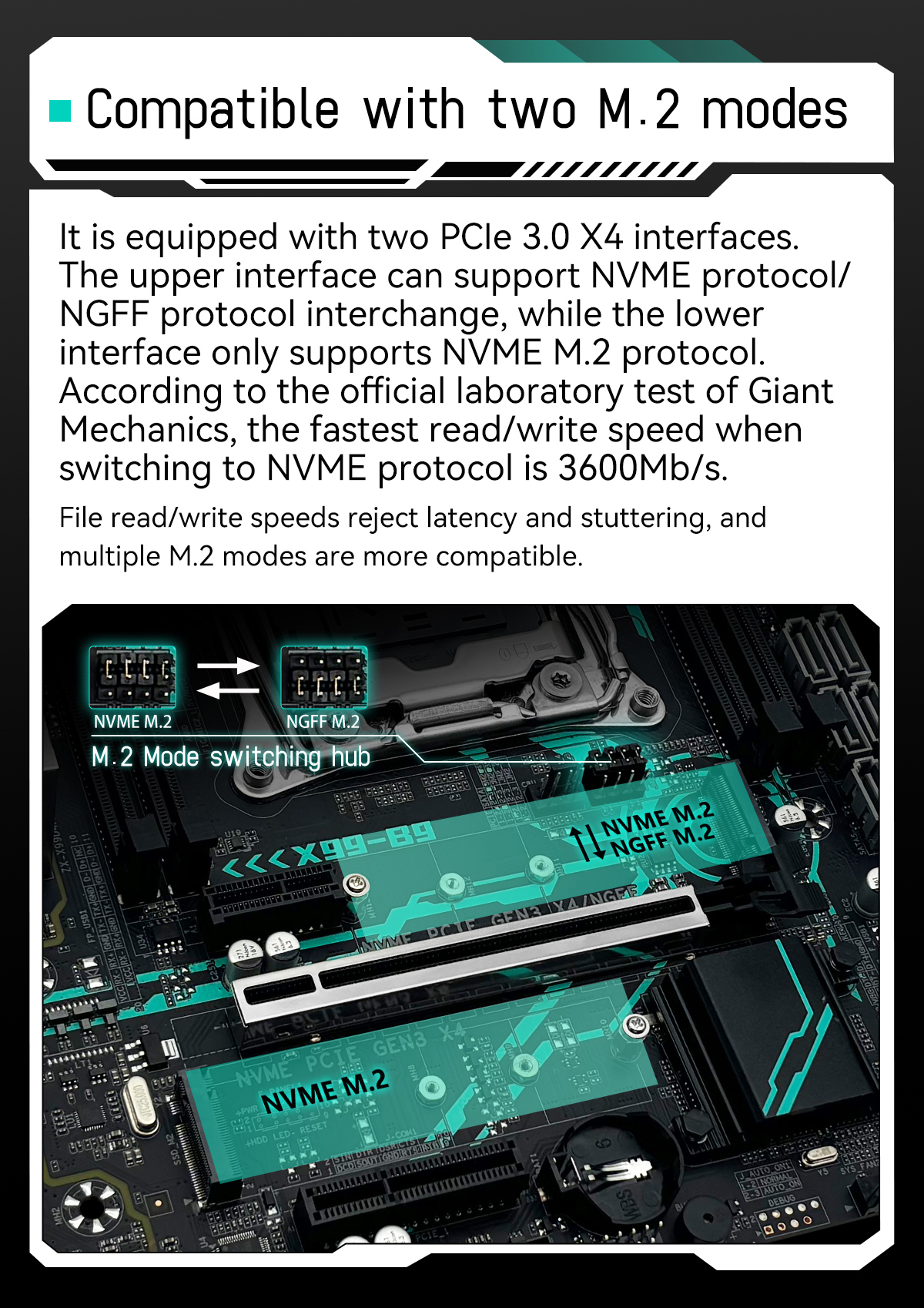

Storage ports: NVME(PCIE 3.0 X4) M.2 x2,  SATA3.0 x6

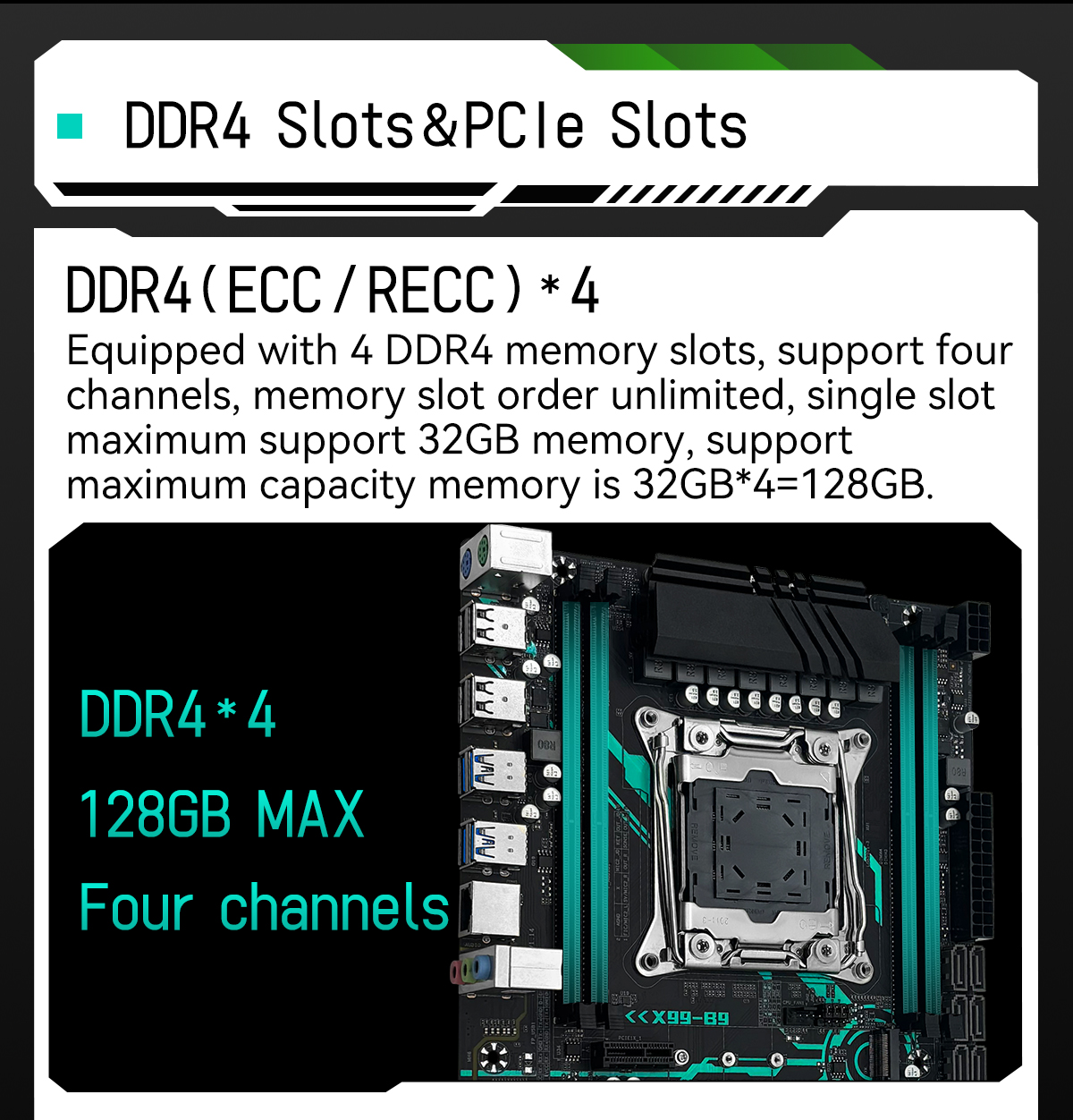

Memory slot: （ECC/RECC）DDR4 x4, Four channels, (32G*4)128G MAX, 2400MHz MAX

Audio: Audio interface x2(front and rear),  Realtek ALC897 Hi-Fi Sound Card

Fan power supply ports: 3PIN System Fan x1,  4PIN System Fan x1,  4PIN CPU FAN x1（temperature control）

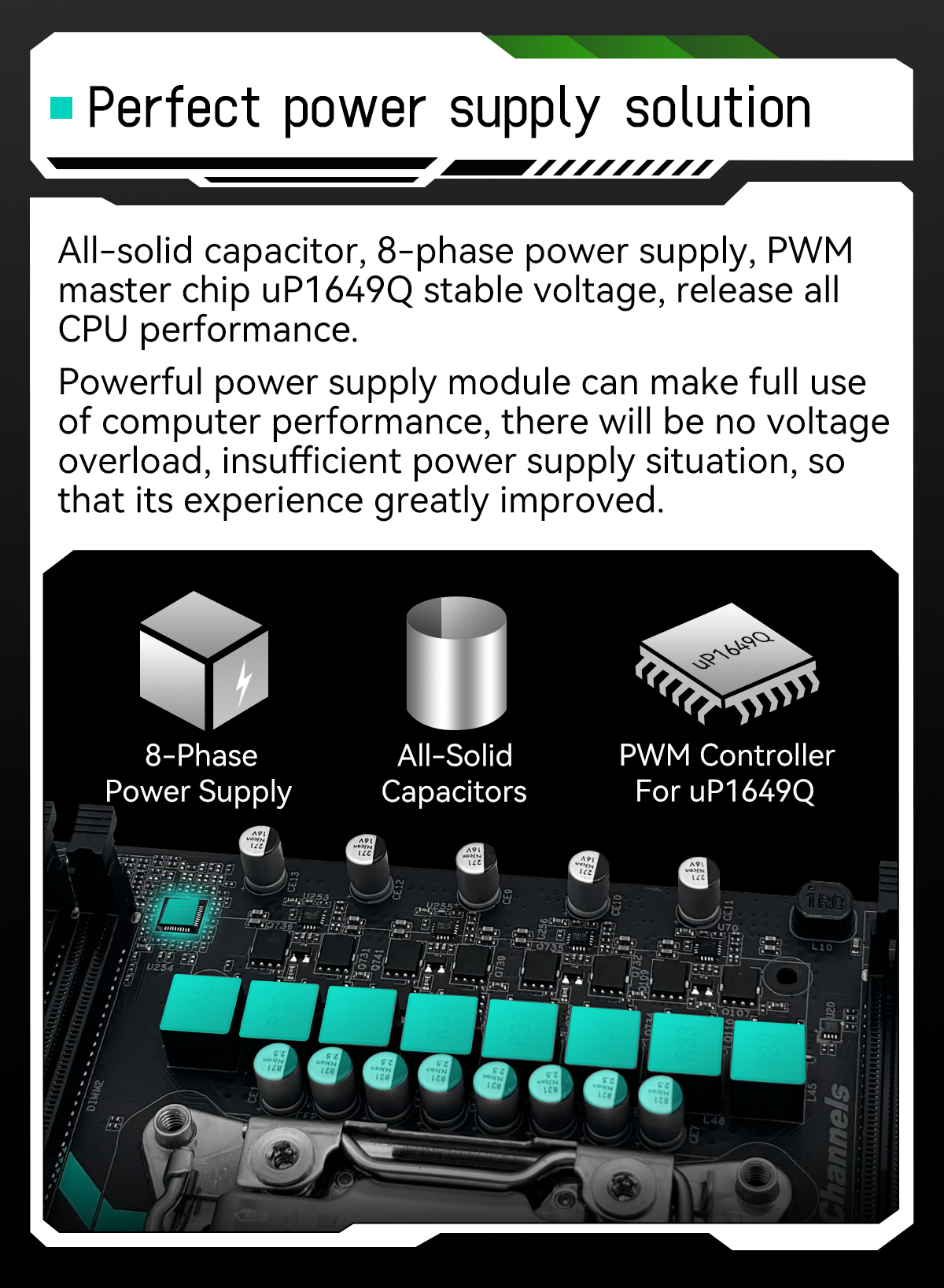

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

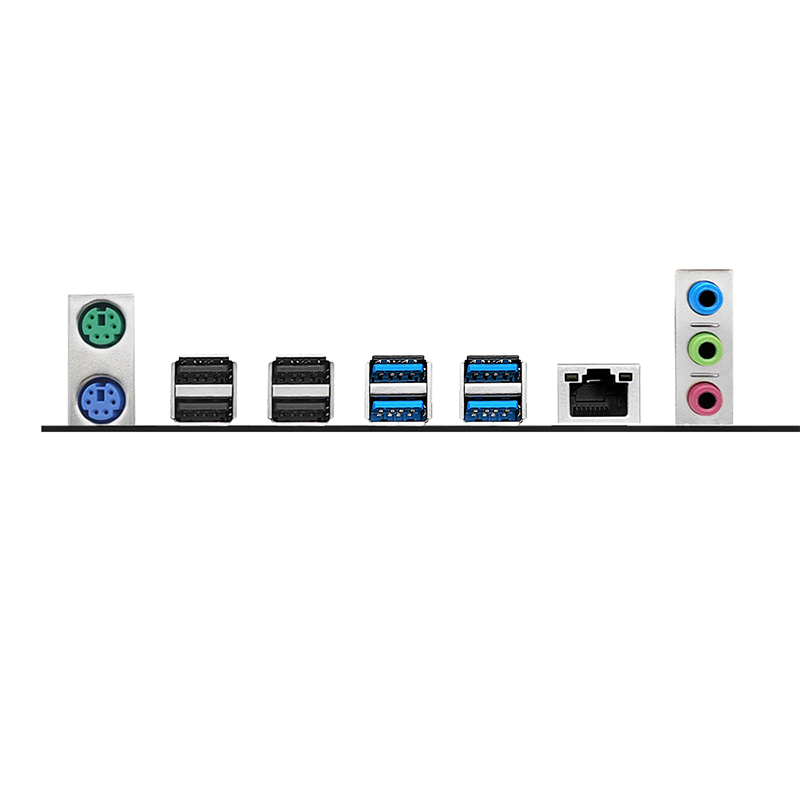

USB port: Rear USB2.0 x4/USB3.0 x4,  Front USB2.0 x1/USB3.0 x 1

Network port: Realtek 8111H Gigabit network port
