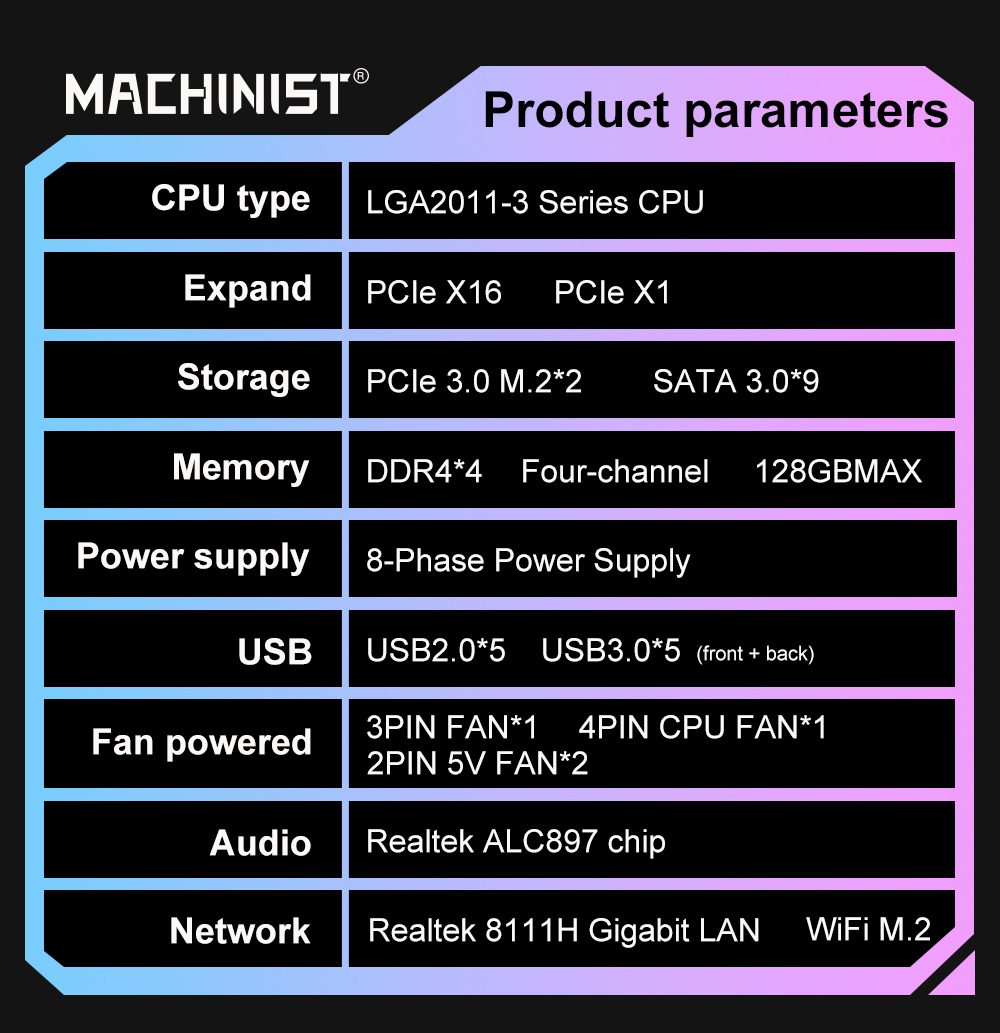

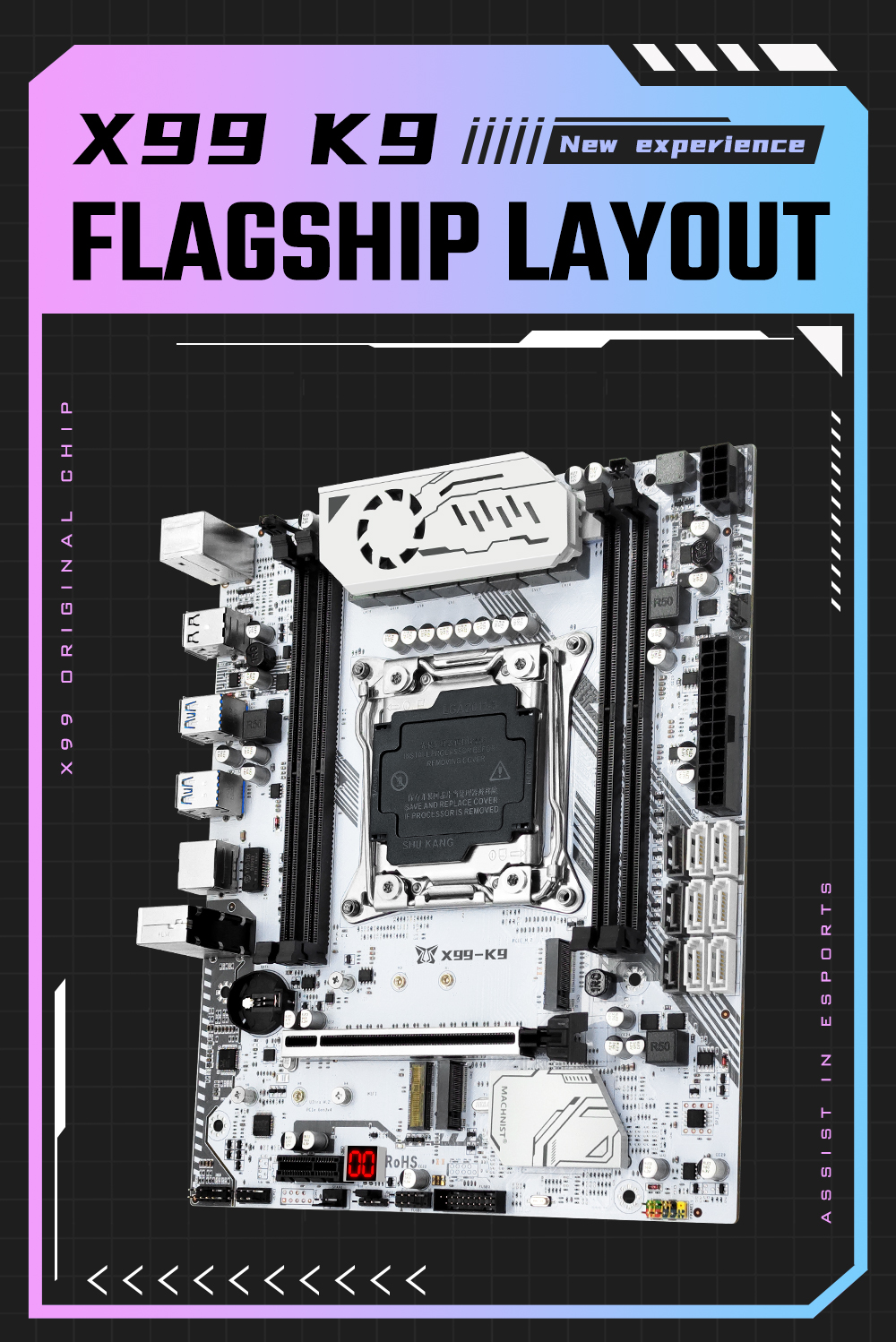

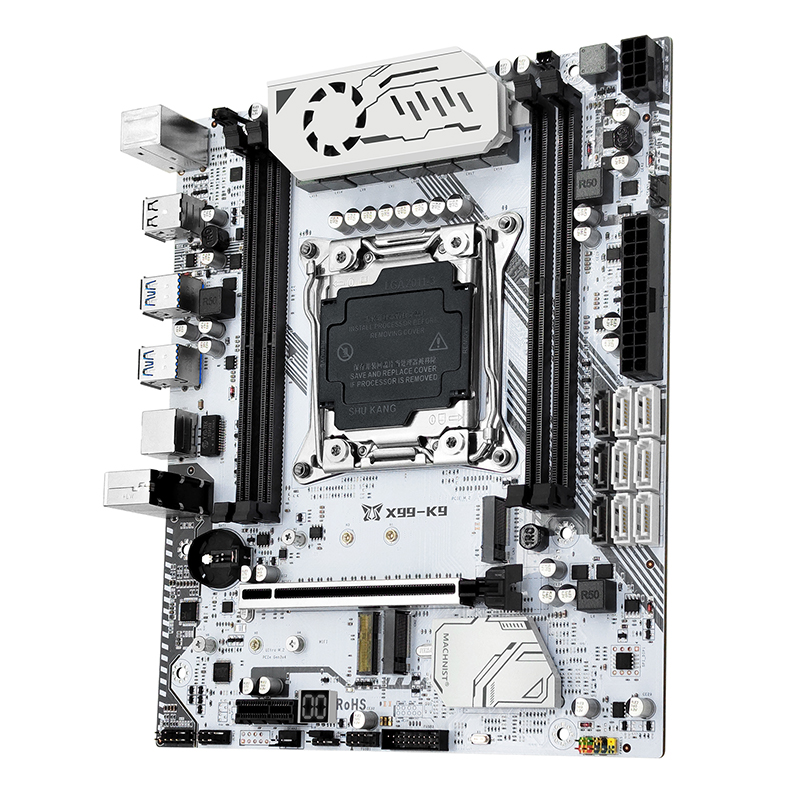

X99-K9

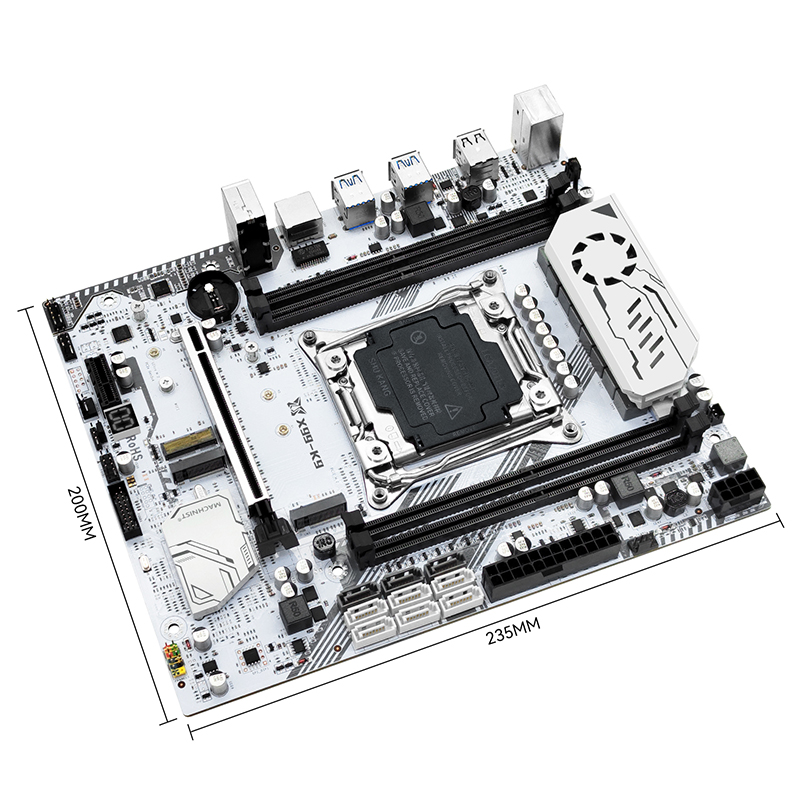

Size: M-ATX， 200mm*238mm
Chip: Intel C612
CPU Type: LGA2011-3 series
No graphics card startup: supported
Virtualization: Support
RAID: Support
PCIE slots: PCleX16 slot x1, PCleX1 slot x1

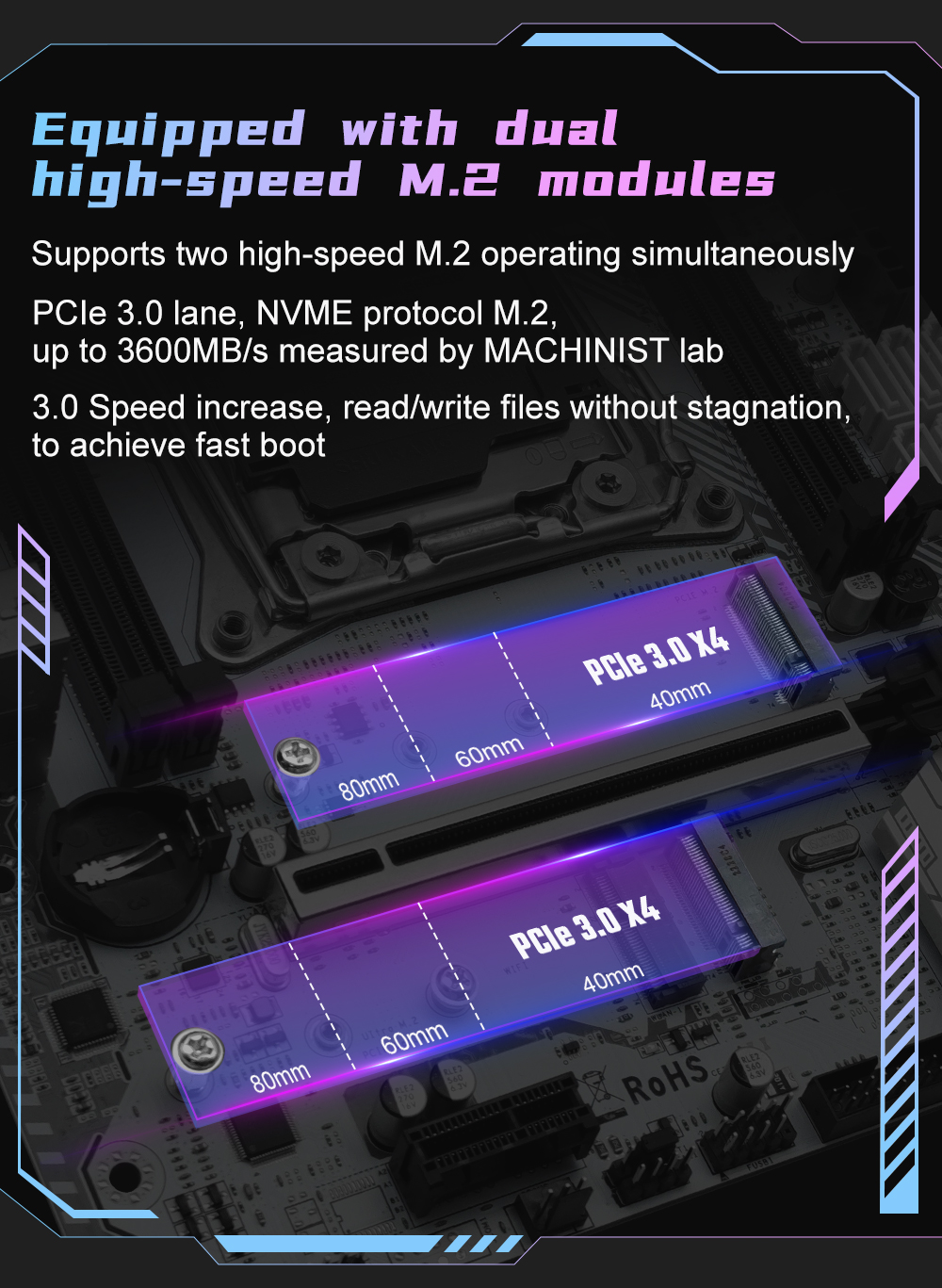

Storage ports: NVME(PCIE 3.0 X4) M.2 x2, SATA3.0 x9

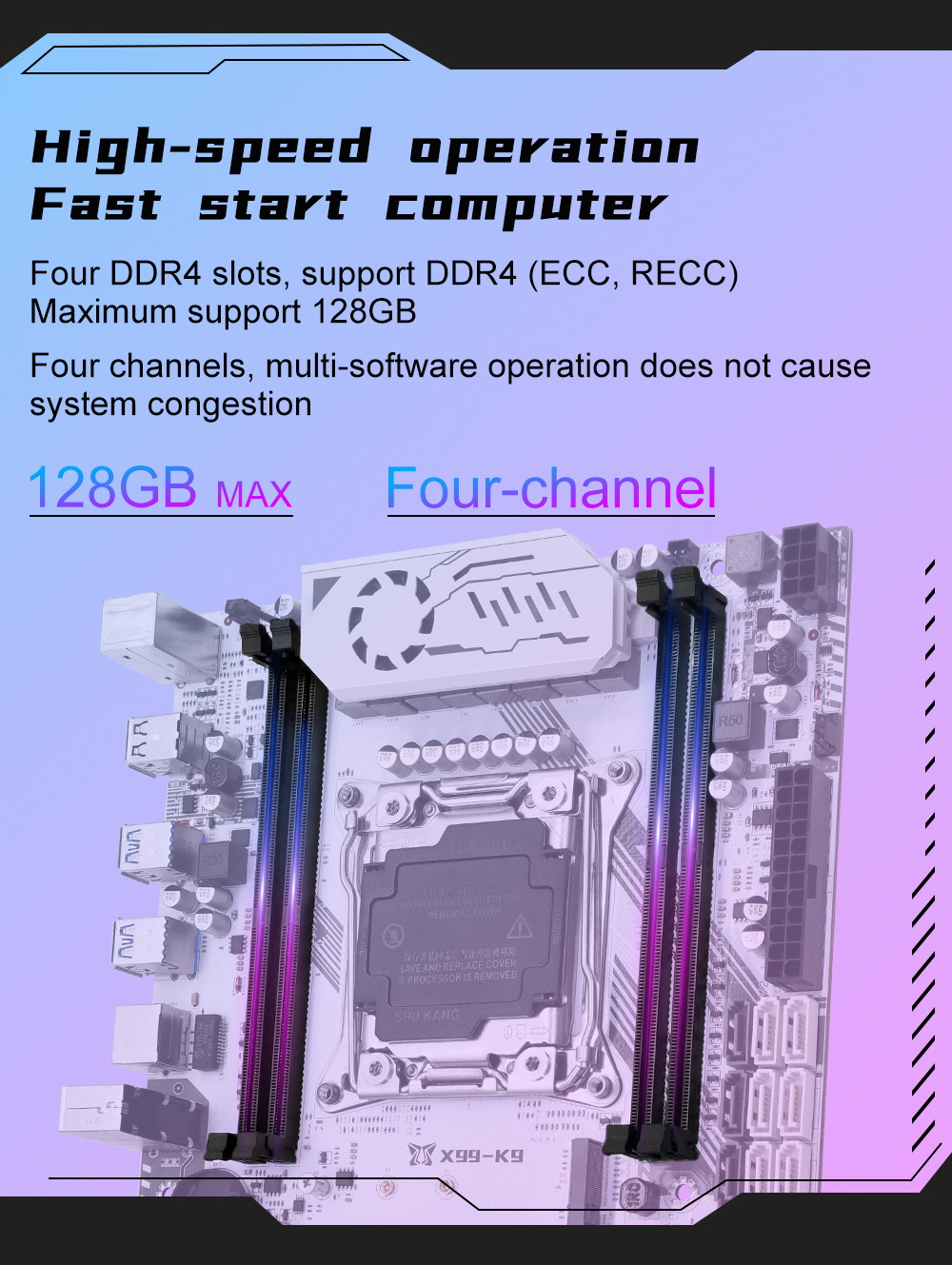

Memory slot: （ECC/RECC）DDR4 x4, Four channels, (32G*4)128G MAX
Audio: Audio interface x2(front and rear), Realtek ALC897 Hi-Fi Sound Card

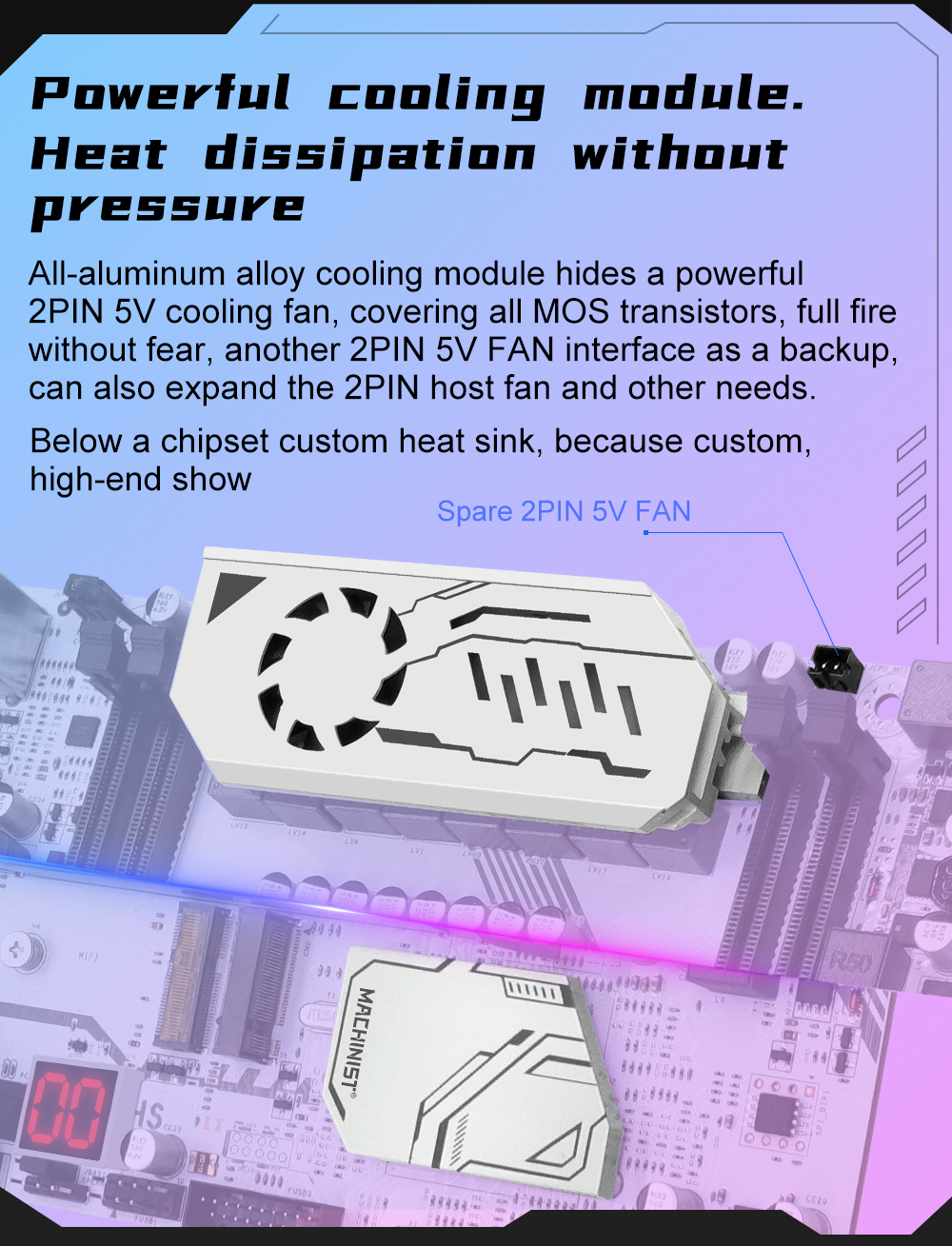

Fan power supply ports: 3PIN System Fan x1, 4PIN CPU FAN x1， 2PIN 5V FAN*2
Power supply interface: 8PIN CPU powered x1, 24PIN Motherboard Power Supply x1

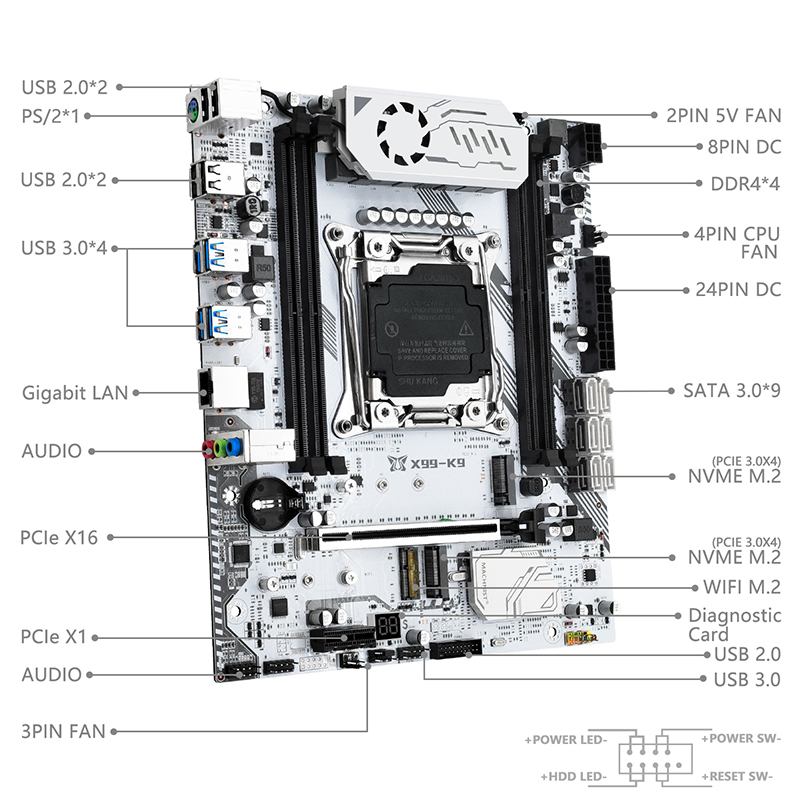

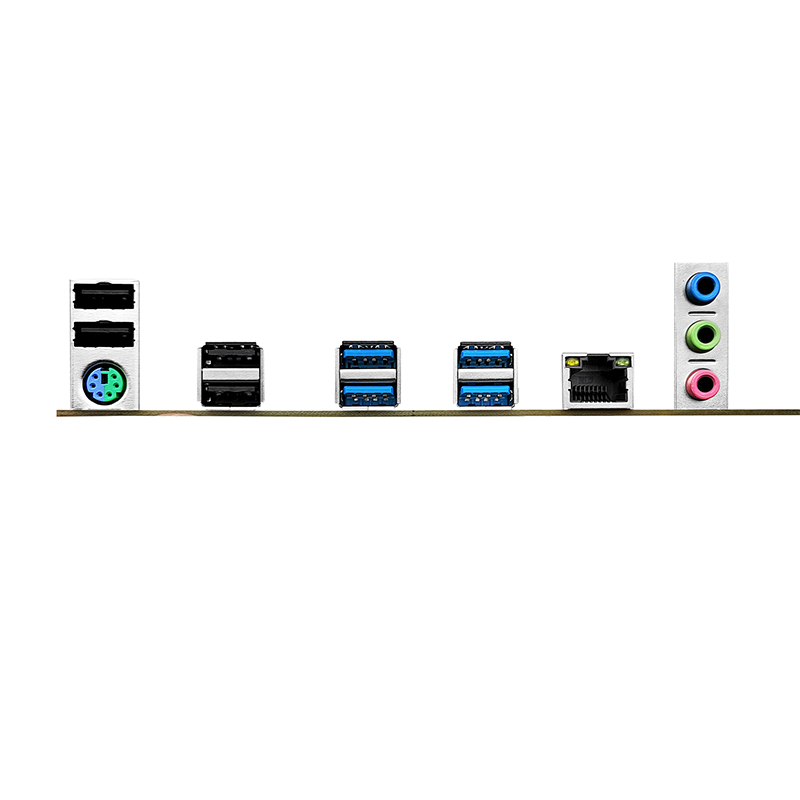

USB port: Rear USB2.0 x4/USB3.0 x4, Front USB2.0 x1/USB3.0 x 1

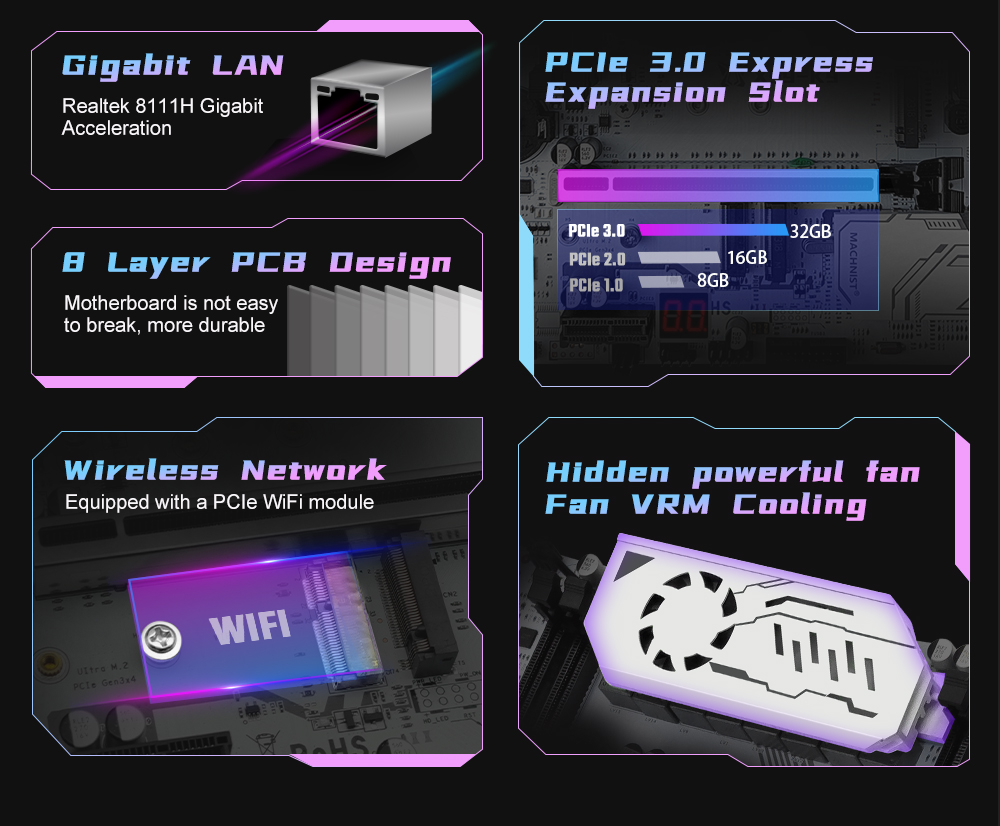

Network port: Realtek 8111H Gigabit network port, WIFI M.2
Functional interface: Diagnostic card
