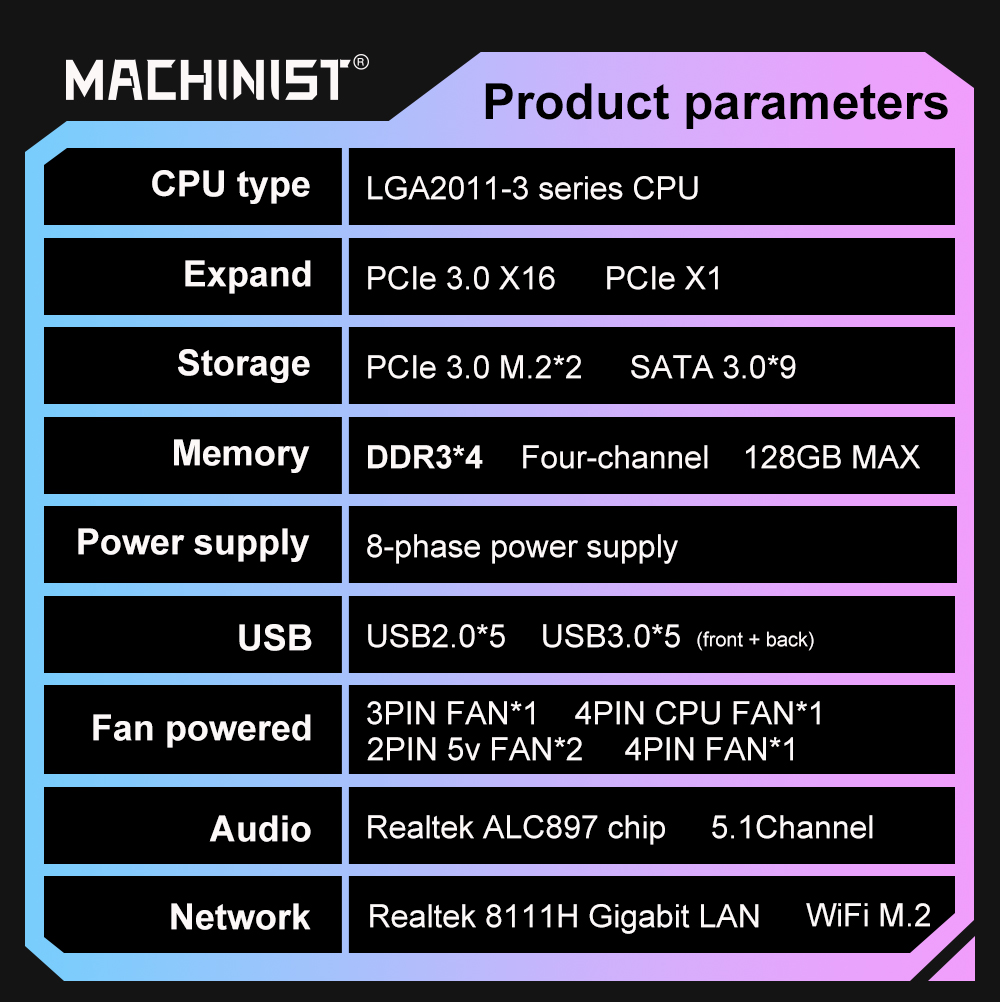

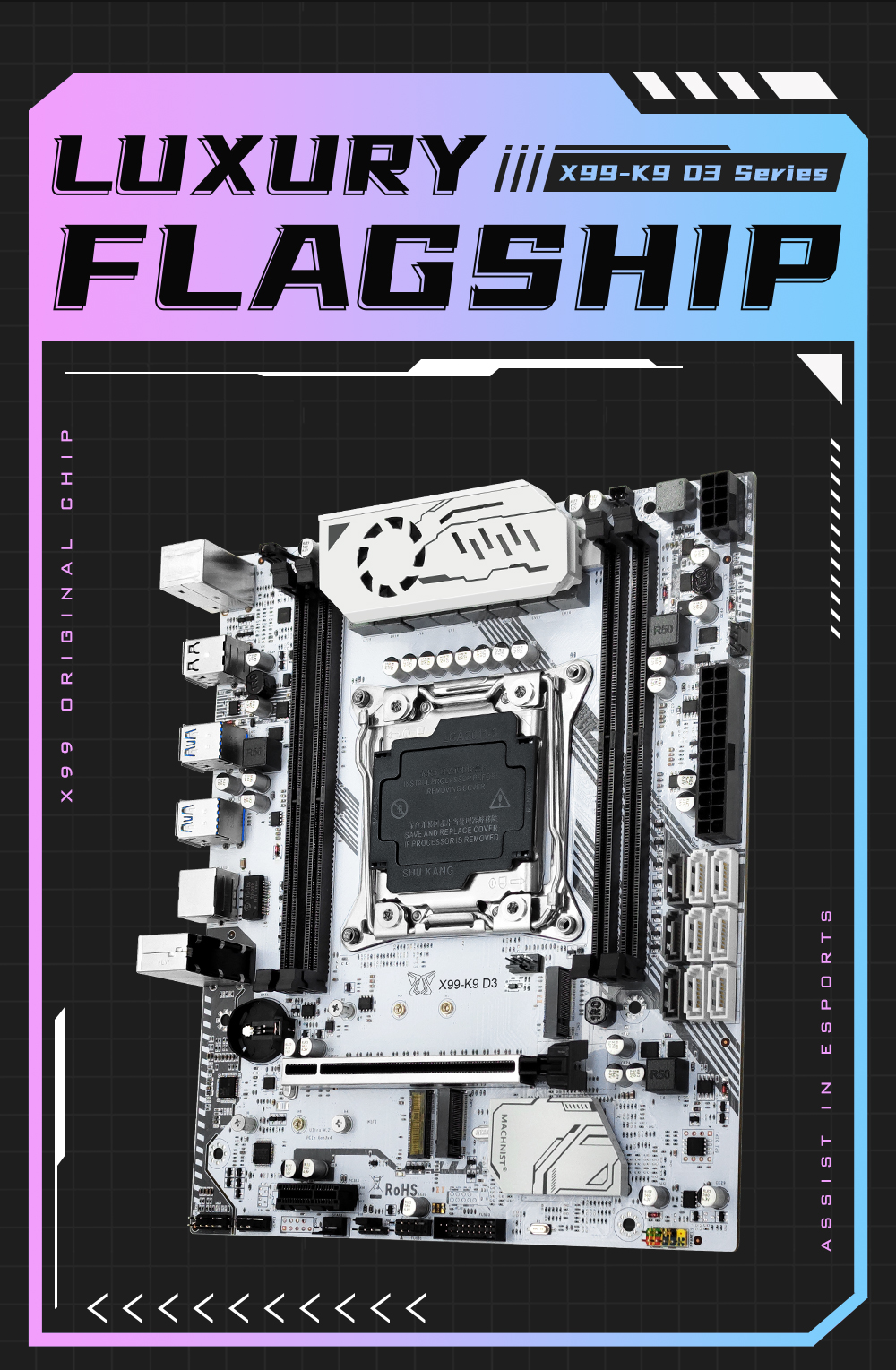

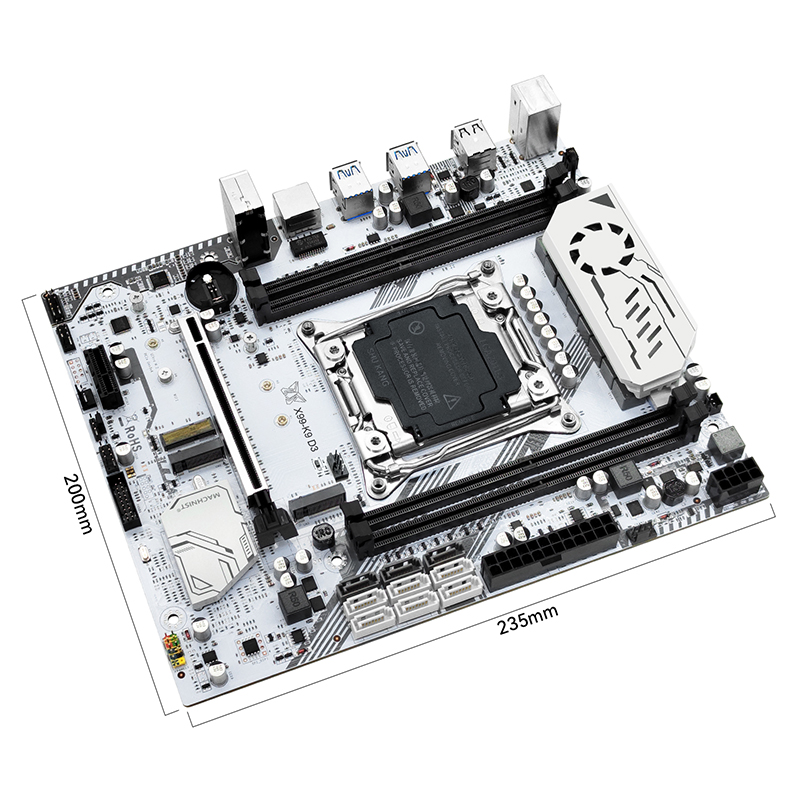

Size: M-ATX， 200mm*238mm

Chip:  Intel C612

CPU Type: LGA2011-3 series（2629 V3,2649 V3,2669 V3,2666 V3,2673 V3,2676 V3,2678 V3,2696 V3）

No graphics card startup: Supported

RAID: RAID 0/RAID 1 supported

Sleep: Support S3 sleep

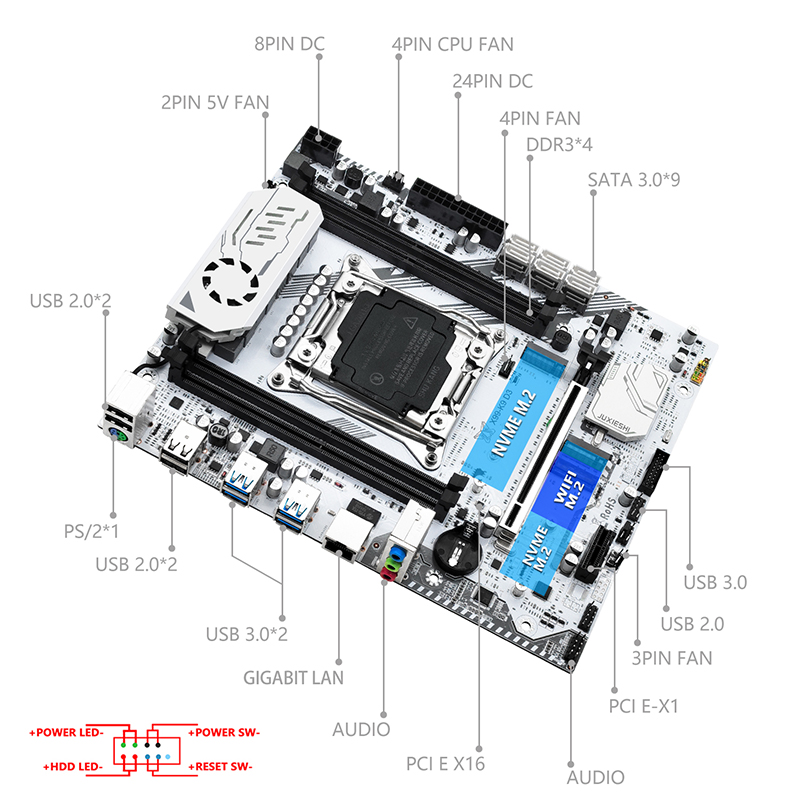

PCIE slots: PCleX16 slot x1,  PCleX1 slot x1

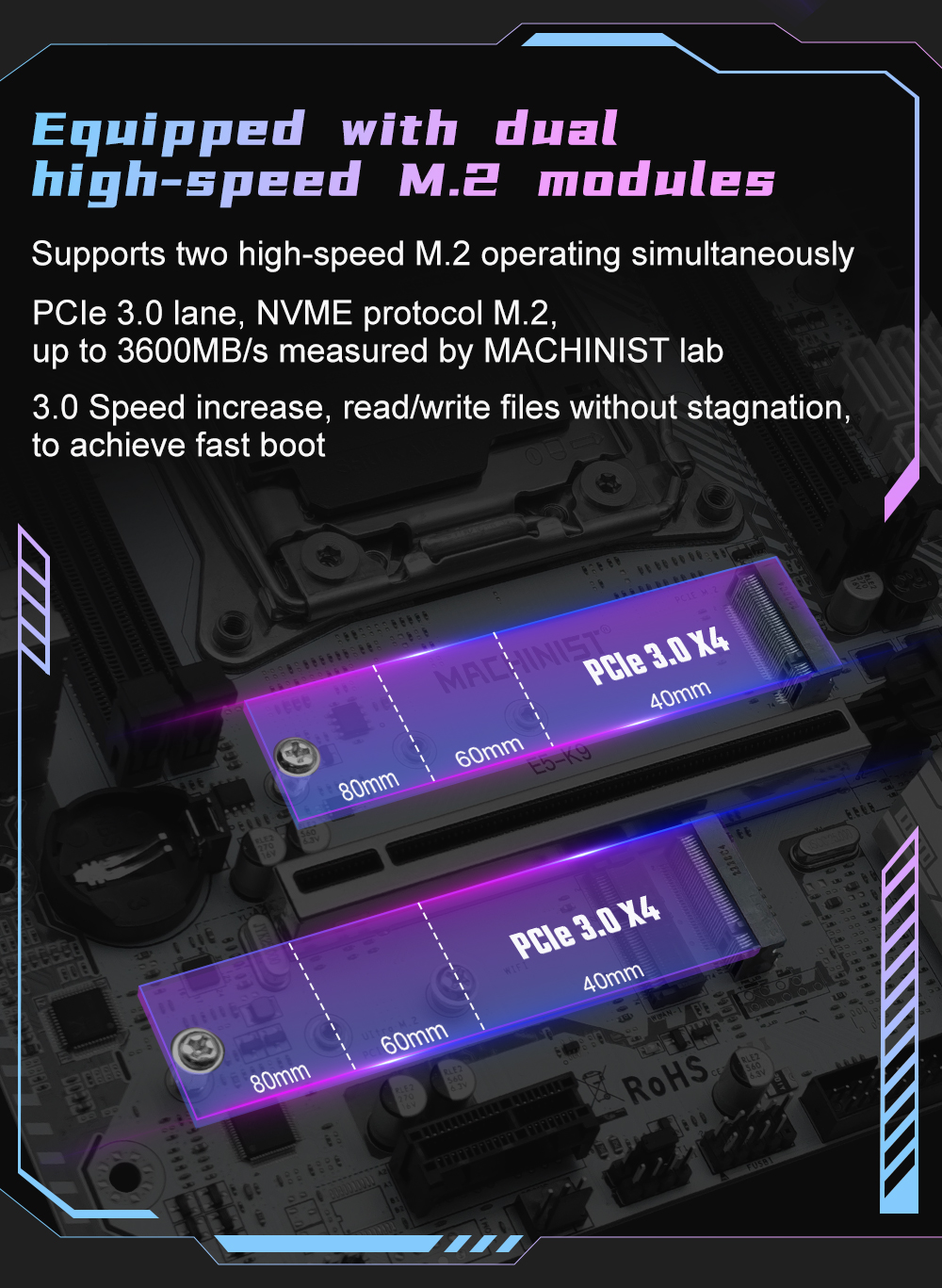

Storage ports: NVME(PCIE 3.0 X4) M.2 x2,  SATA3.0 x9

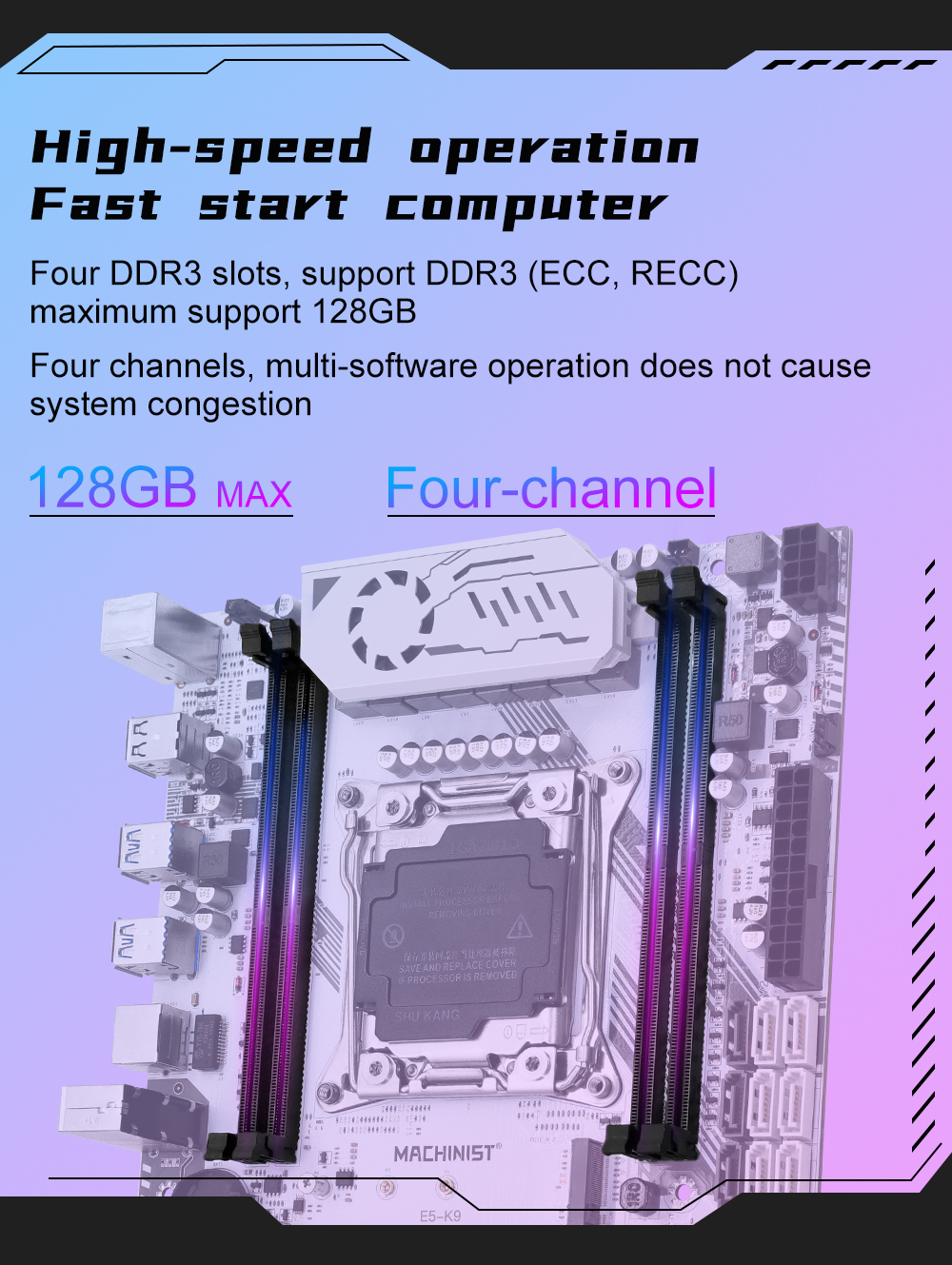

Memory slot: （ECC/RECC）DDR3 x4,  Four channels,  (32G*4)128G MAX， 2133MHz MAX

Audio: Audio interface x2(front and rear),  Realtek ALC897 Hi-Fi Sound Card

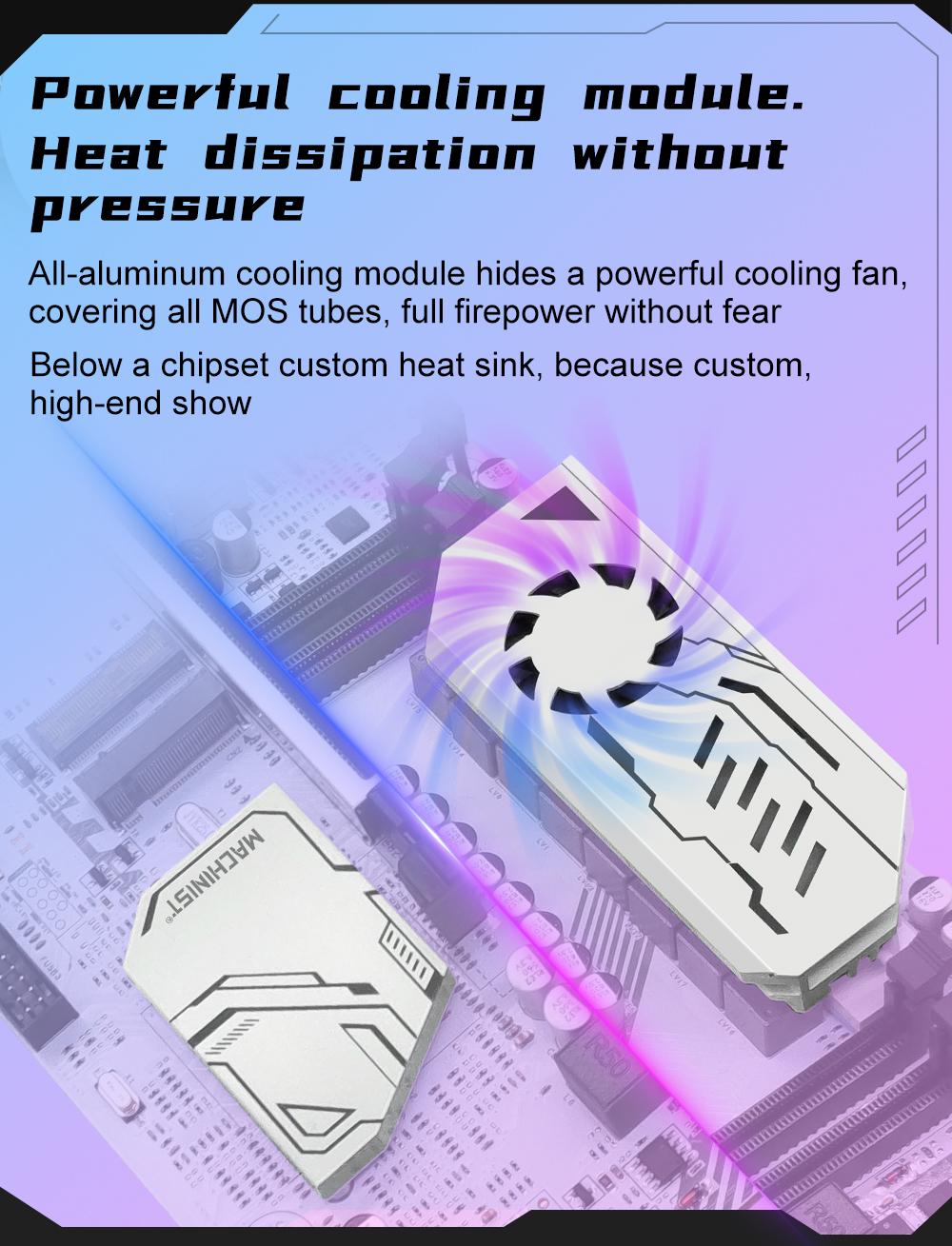

Fan power supply ports: 3PIN System Fan x1,  4PIN System FAN x1， 4PIN CPU FAN x1（temperature control ）， 2PIN 5V FAN*2

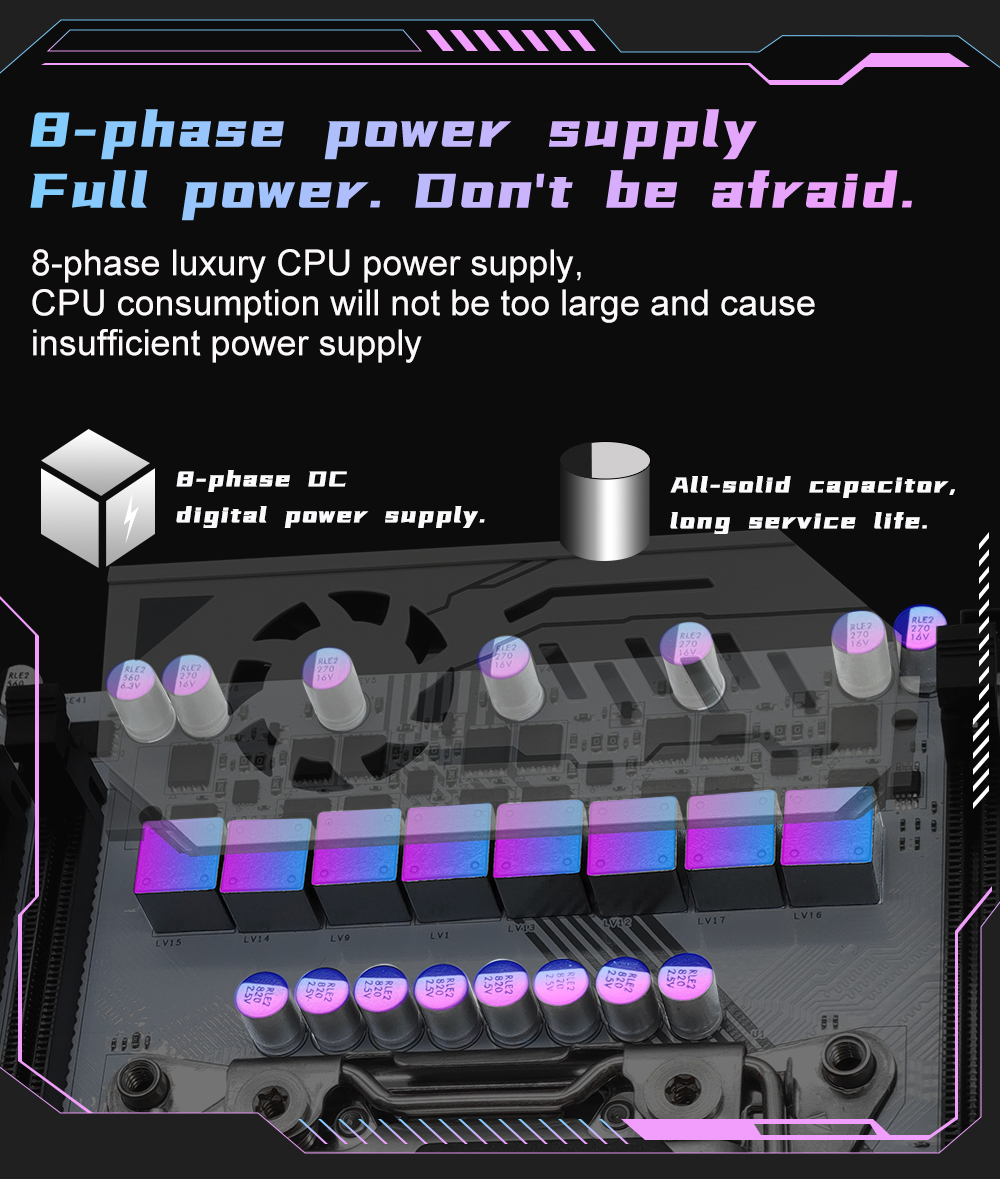

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

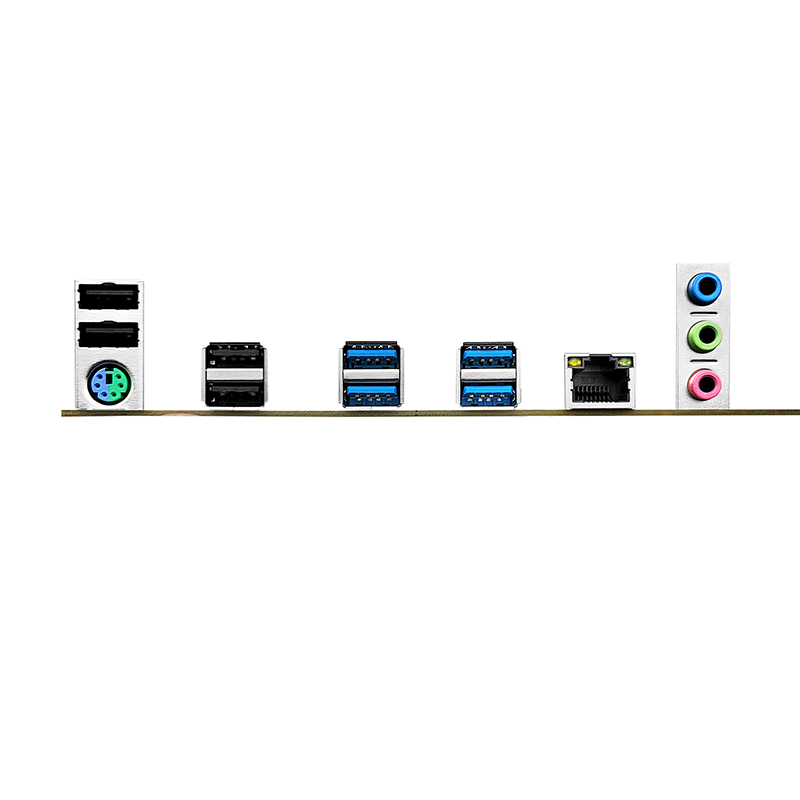

USB port: Rear USB2.0 x4/USB3.0 x4,  Front USB2.0 x1/USB3.0 x1

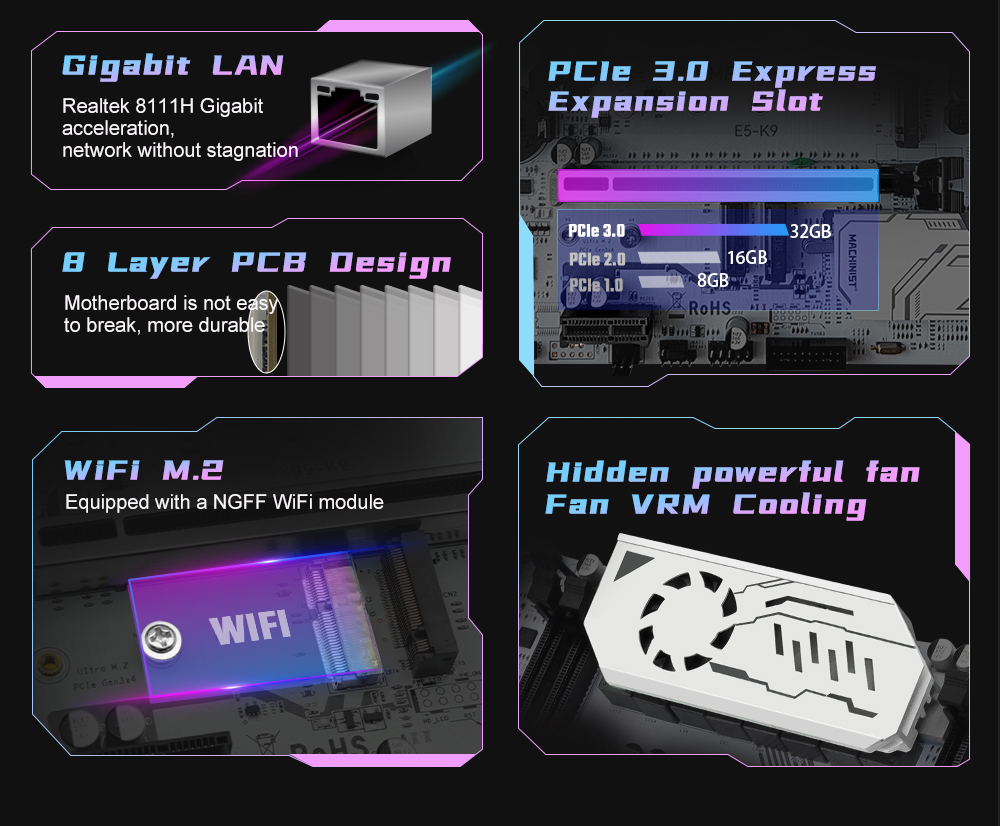

Network port: Realtek 8111H Gigabit network port,  WIFI M.2
