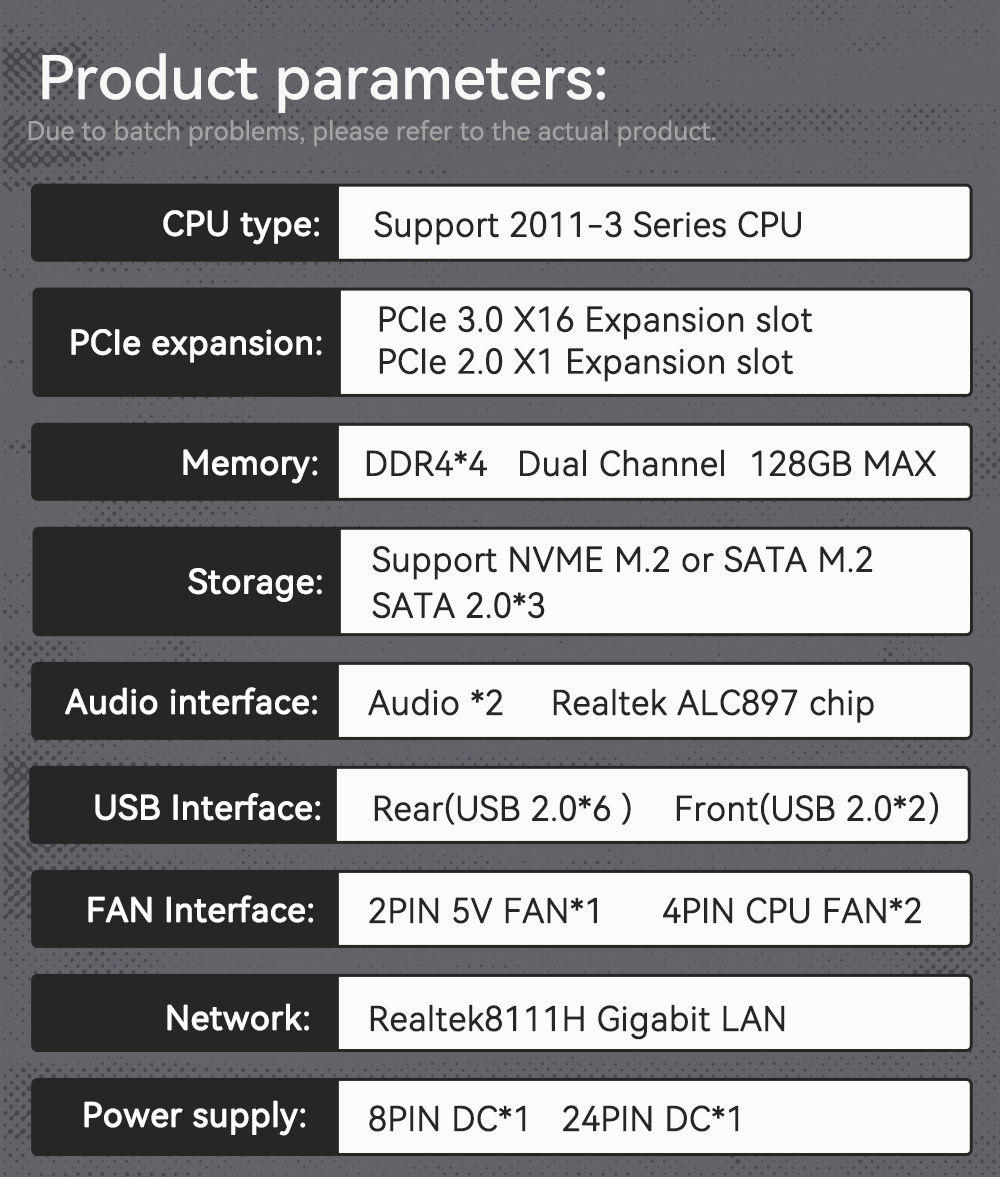

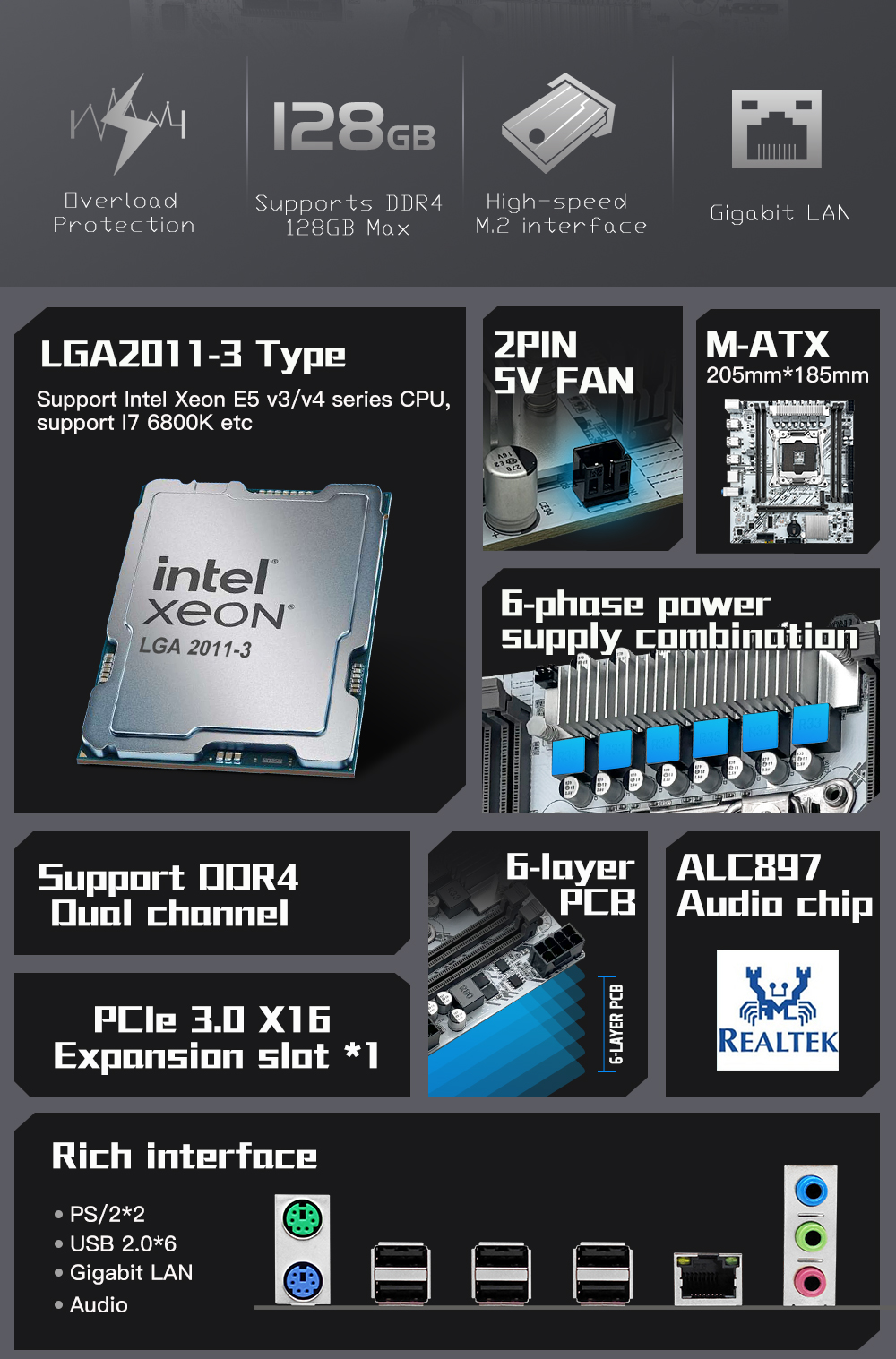

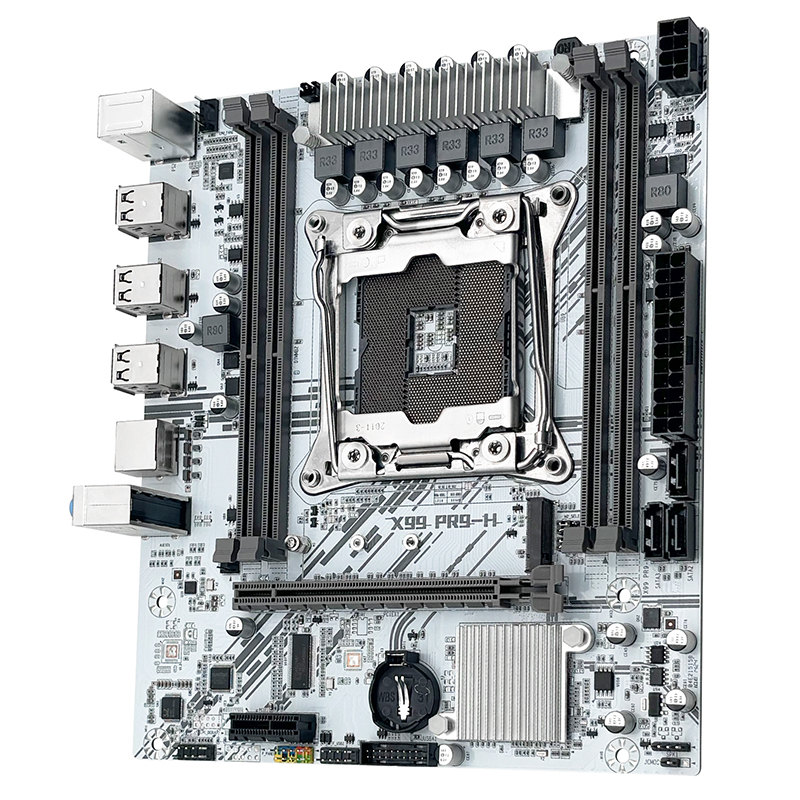

CPU Type: LGA2011-3 series

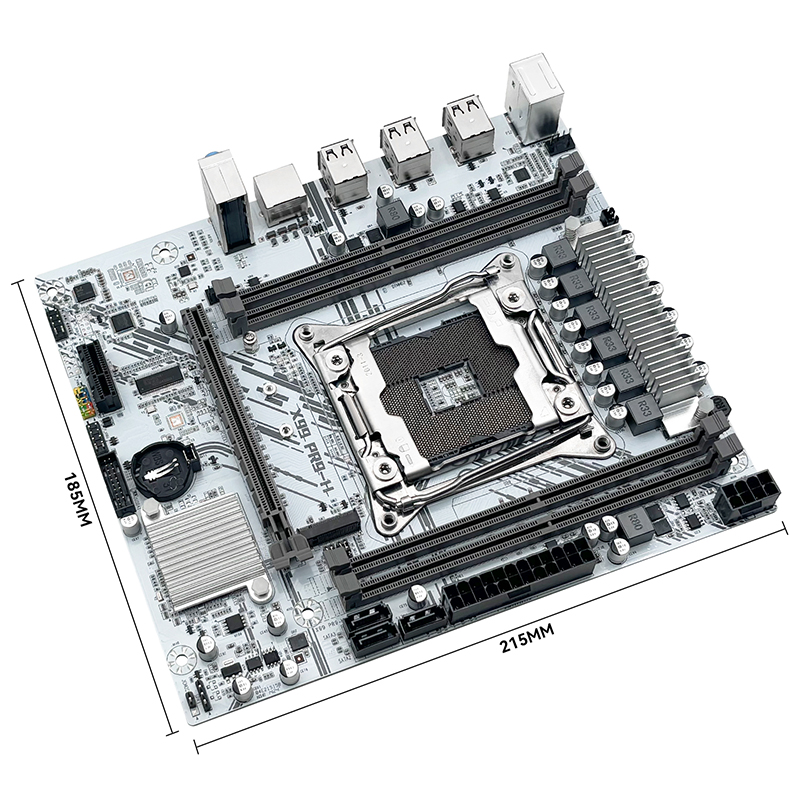

Size: M-ATX， 185x215mm

Chip:  Intel HM55

Power supply: 6-phase power supply

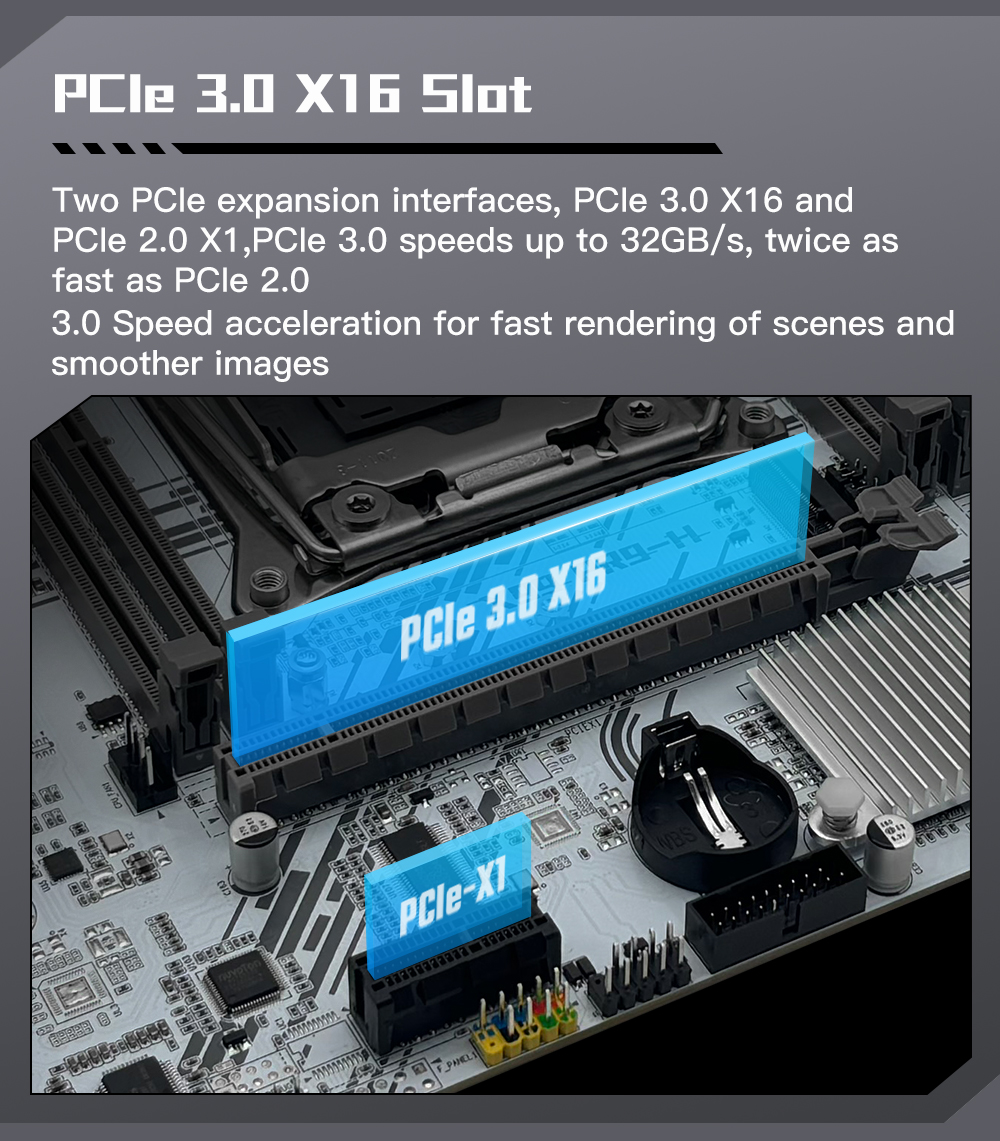

PCIE slots: PCleX16 slot x1,  PCleX1 slot x1

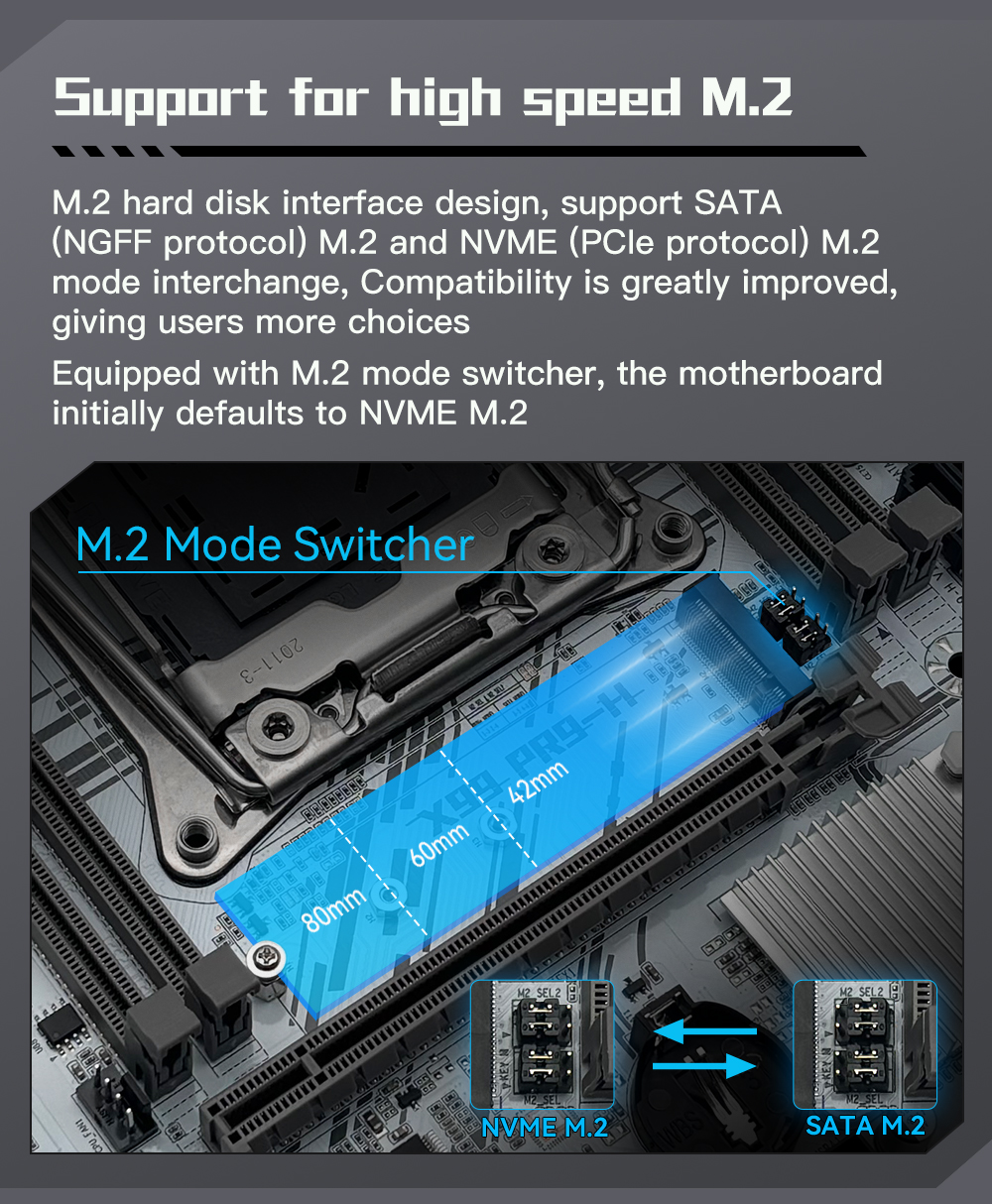

Storage ports: PCIE 3.0 X4 M.2（Support NVME M.2 and SATA M.2 mode interchange, initial state is NVME M.2）,  SATA 2.0 x3

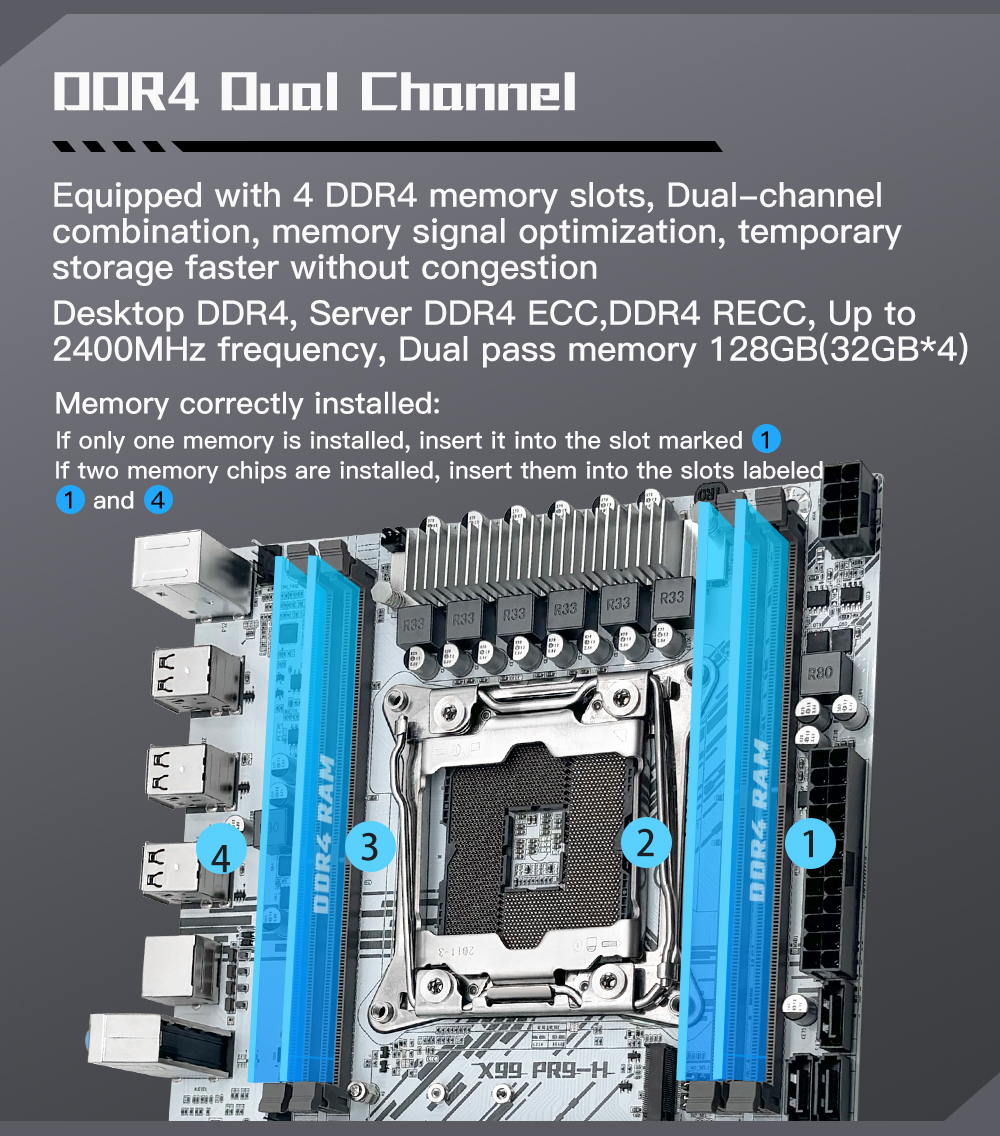

Memory slot: （ECC/RECC）DDR4 x4,  Dual channel,  (32G*4)128G MAX， 2400MHz MAX(Compatible with 2133/2400/2666/3200MHz )

Audio: Audio interface x2(front and rear),  Realtek ALC897 Hi-Fi Sound Card

Fan power supply ports: 4PIN CPU FAN x2,  2PIN 5V FAN x1

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

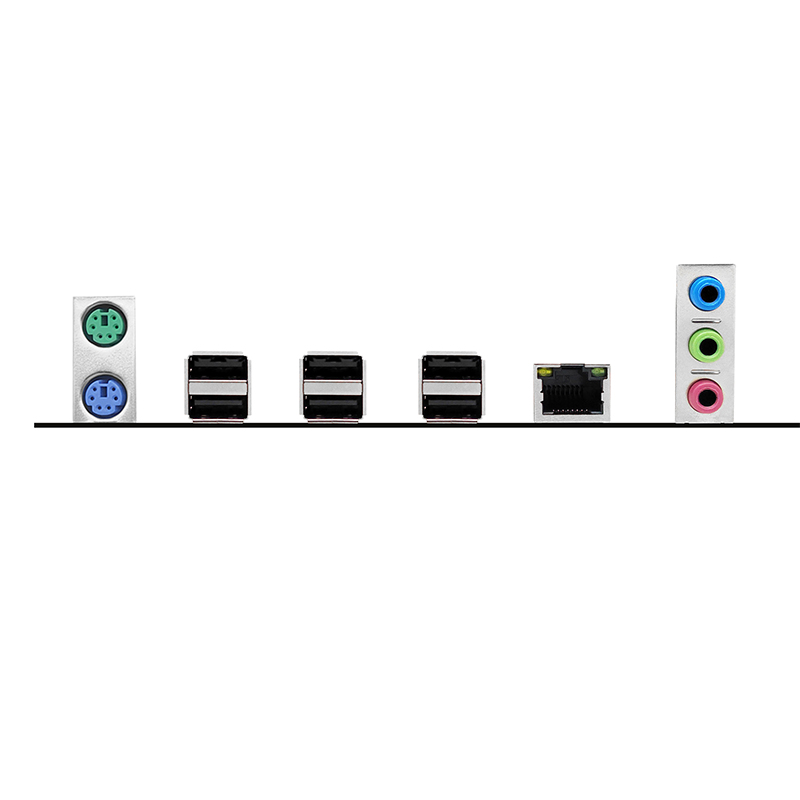

USB port: Rear USB2.0 x6,  Front USB2.0 x1/USB2.0 x1（3.0 appearance）

Network port: Realtek 8111H Gigabit network port
