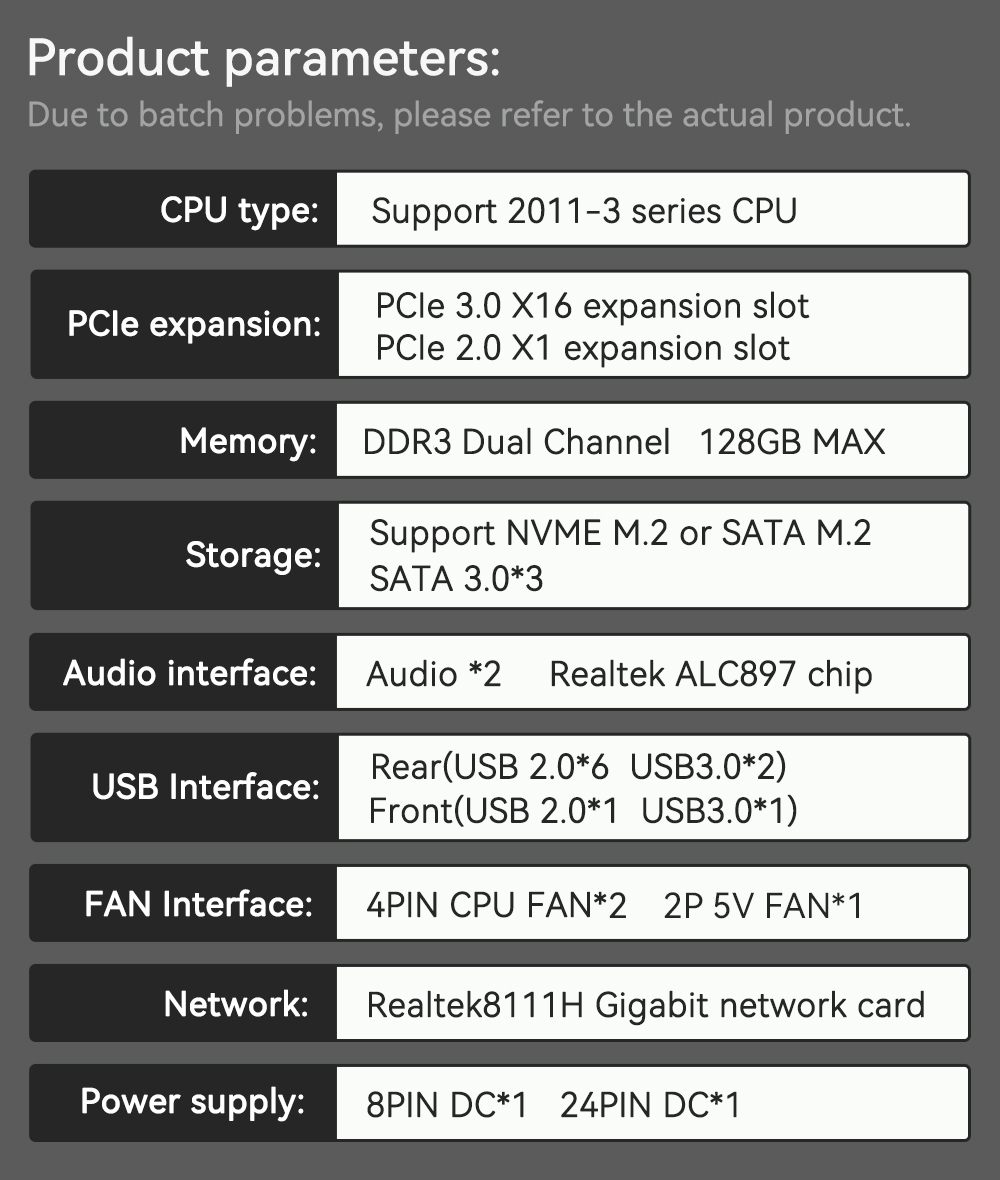

CPU Type: LGA2011-3 series（2629 V3,2649 V3,2669 V3,2666 V3,2673 V3,2676 V3,2678 V3,2696 V3）

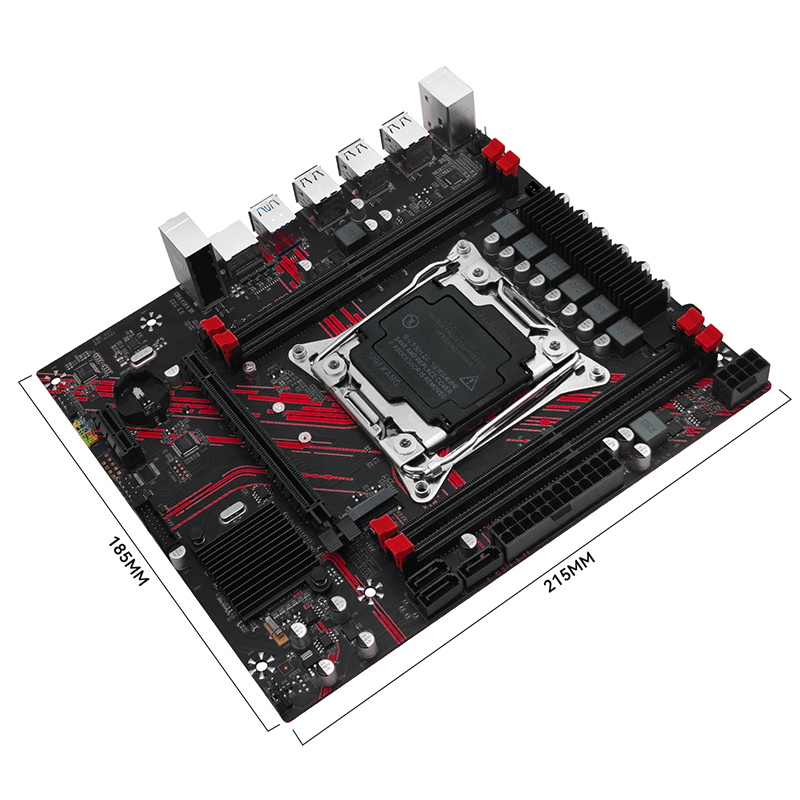

Size: M-ATX， 185x215mm

Chip:  Intel H87

Power supply: 6-phase power supply

PCIE slots: PCleX16 slot x1,  PCleX1 slot x1

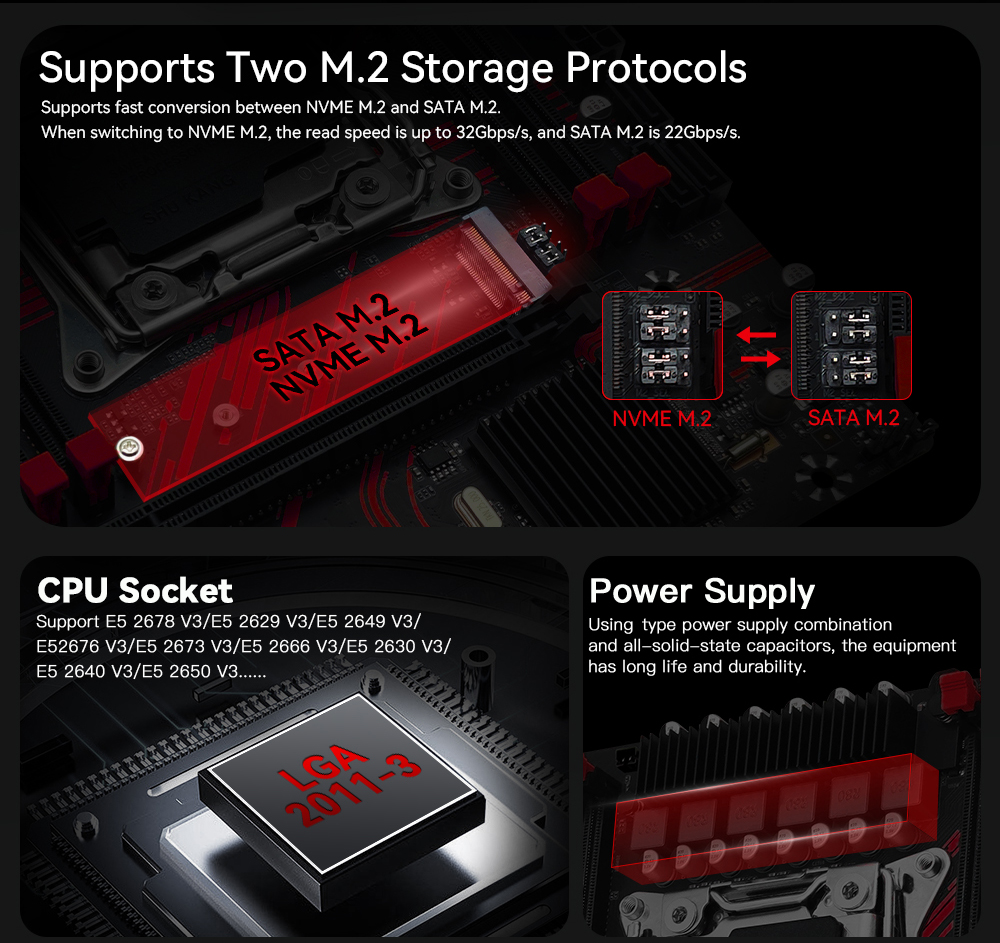

Storage ports: PCIE 3.0 X4 M.2（Support NVME M.2 and SATA M.2 mode interchange, initial state is NVME M.2，up to 3600MB/s）,  SATA 3.0 x3

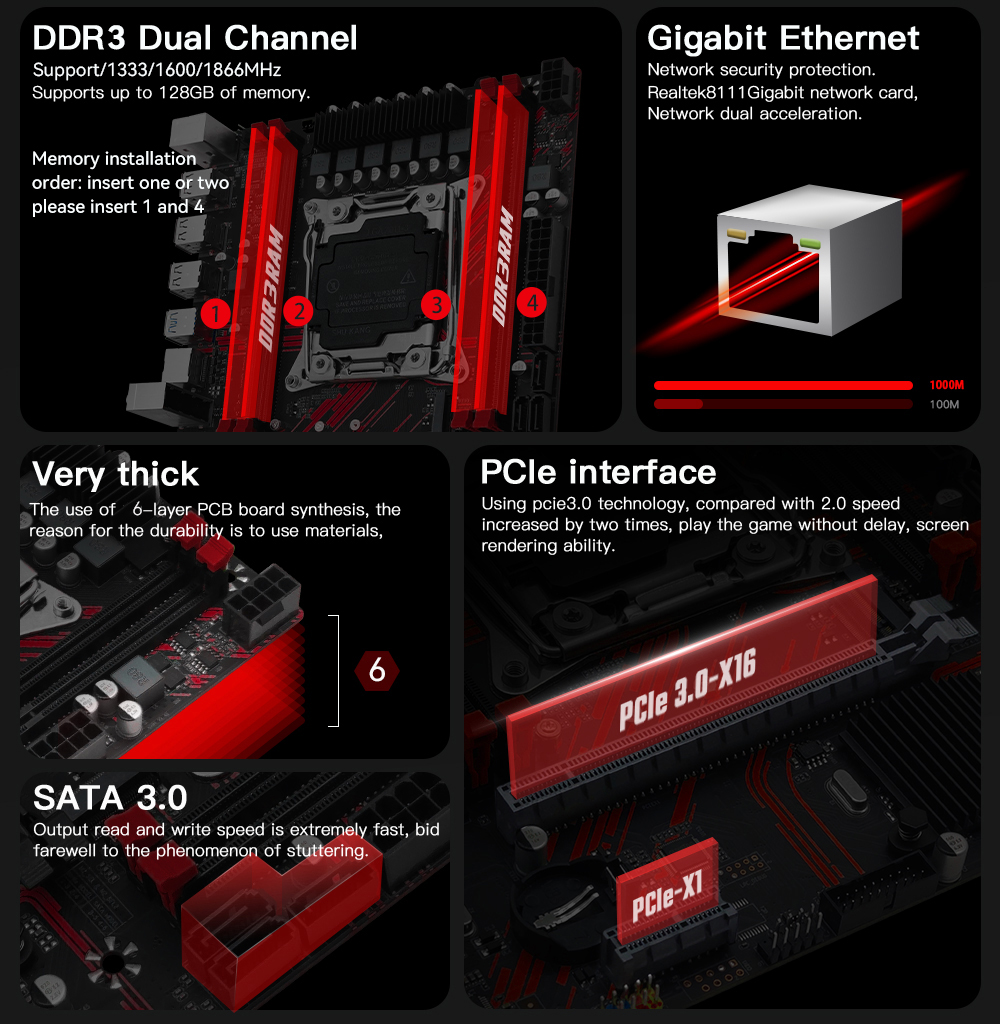

Memory slot: （ECC/RECC）DDR3 x3,  Dual channel,  (32G*4)128G MAX

Audio: Audio interface x2(front and rear),  Realtek ALC897 Hi-Fi Sound Card

Fan power supply ports: 4PIN CPU FAN x2（Intelligent temperature control）,  2PIN 5V FAN x1

Power supply interface: 8PIN CPU powered x1,  24PIN Motherboard Power Supply x1

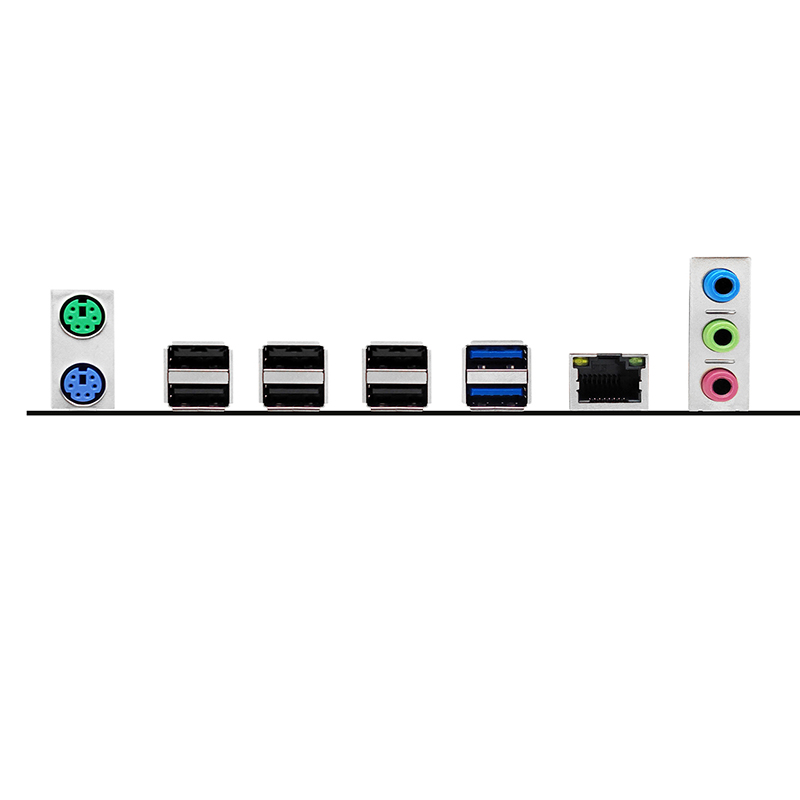

USB port: Rear USB2.0 x6/USB3.0 x2,  Front USB2.0 x1/USB3.0 x1

Network port: Realtek 8111H Gigabit network port
