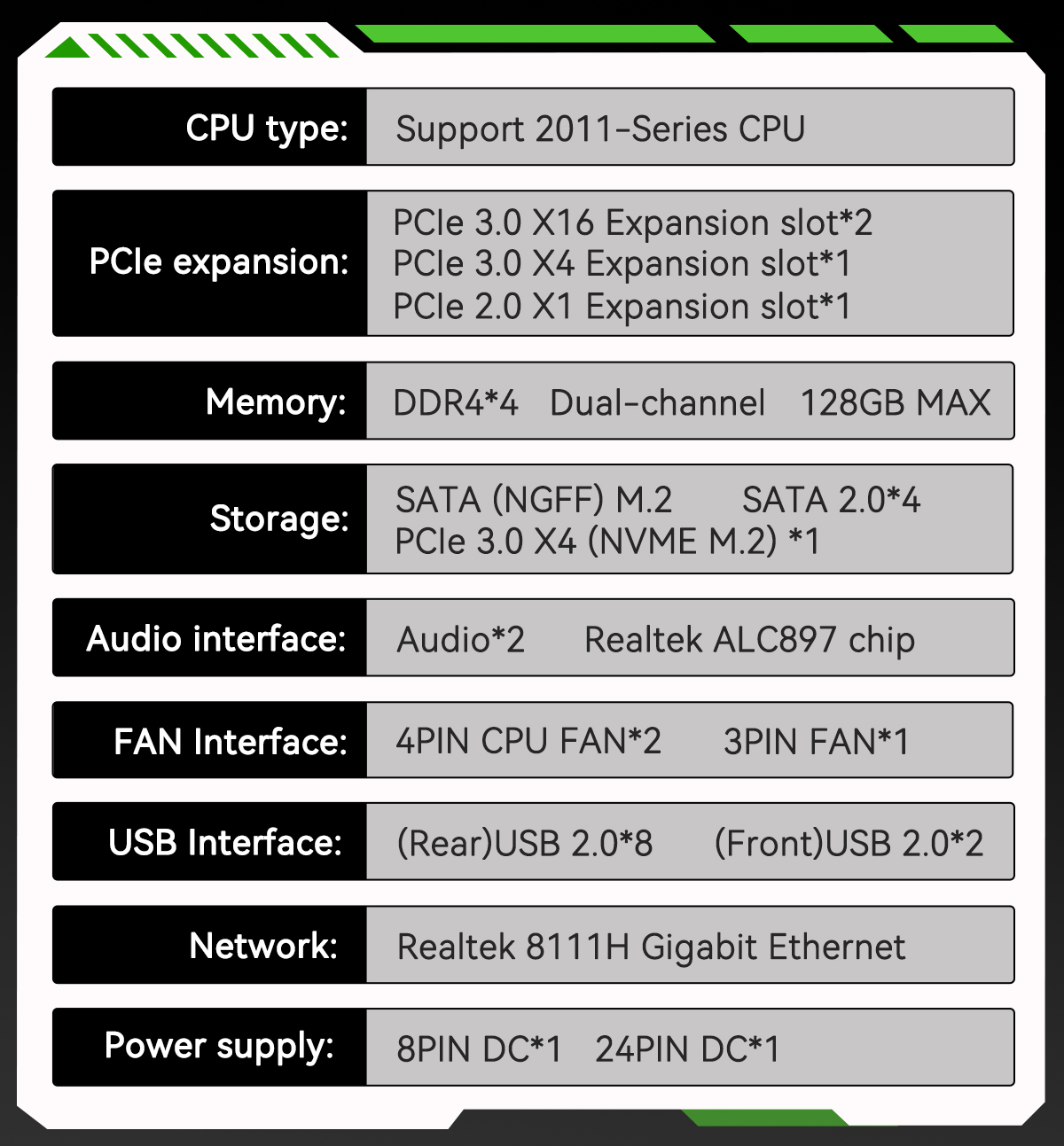

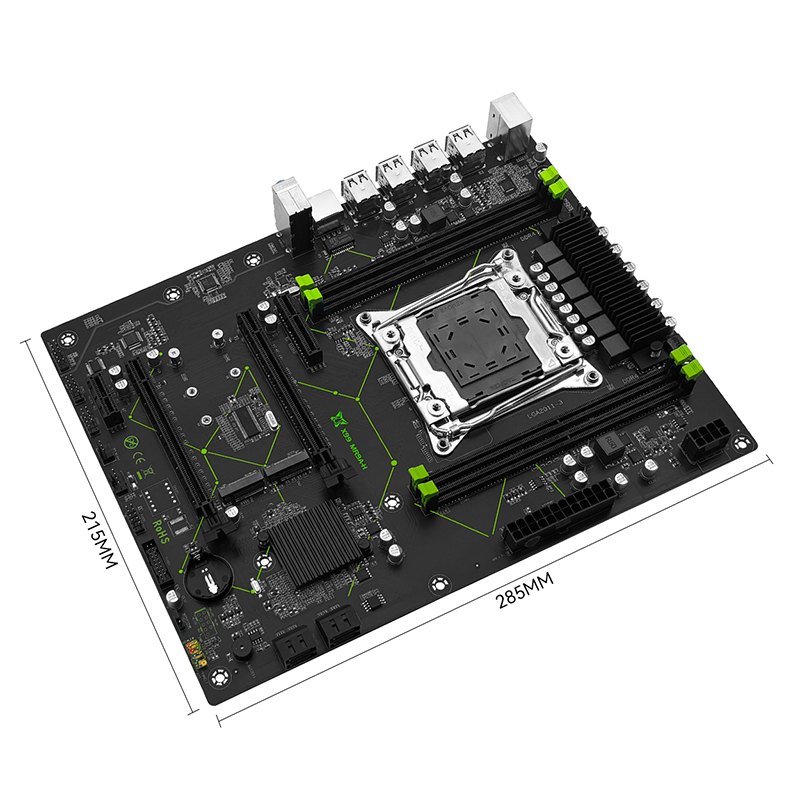

Size: ATX， 215mm*285mm

Chip:  Intel H55

CPU Type: LGA2011-3 series

Memory Timing Modifications: Supported

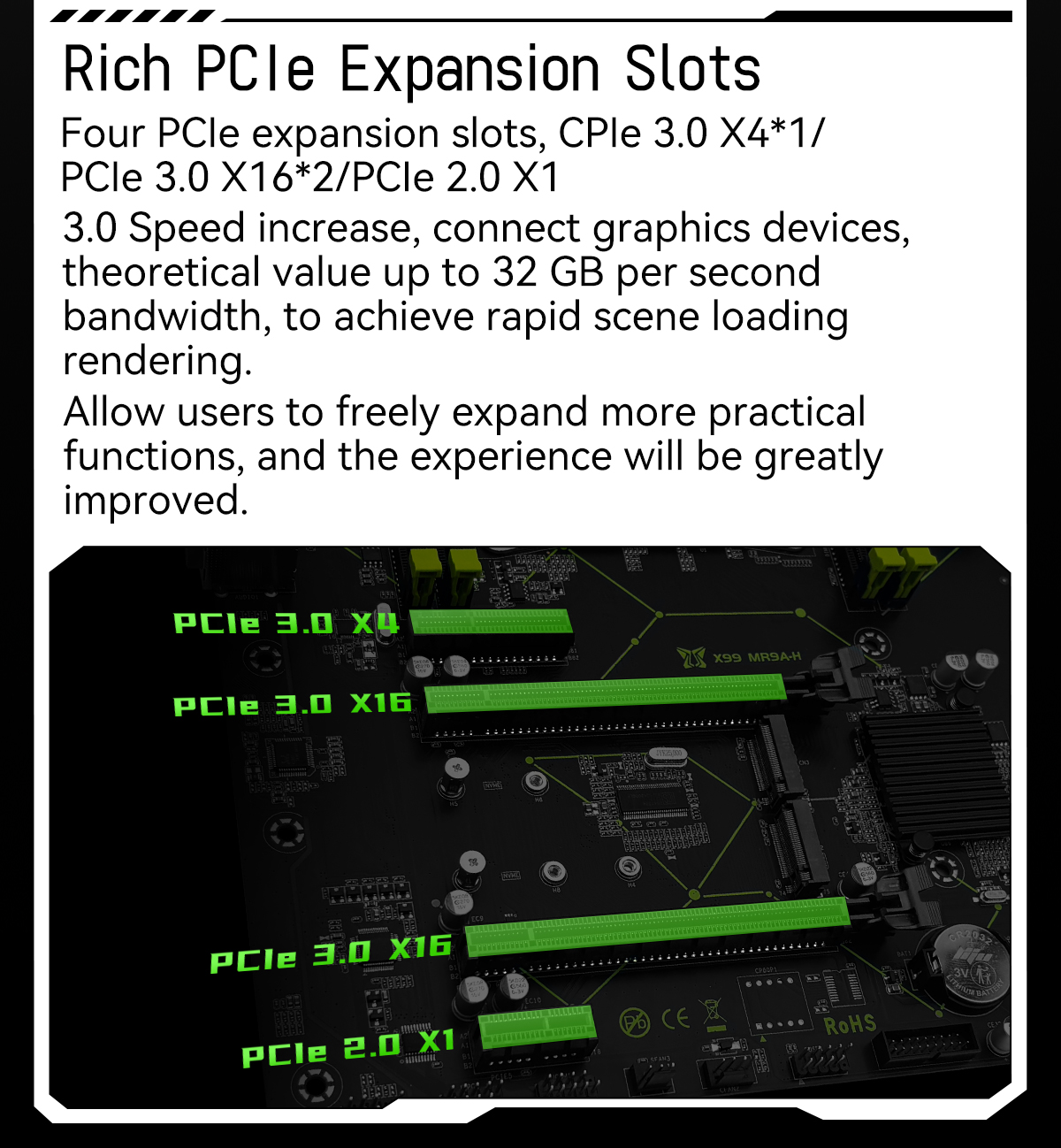

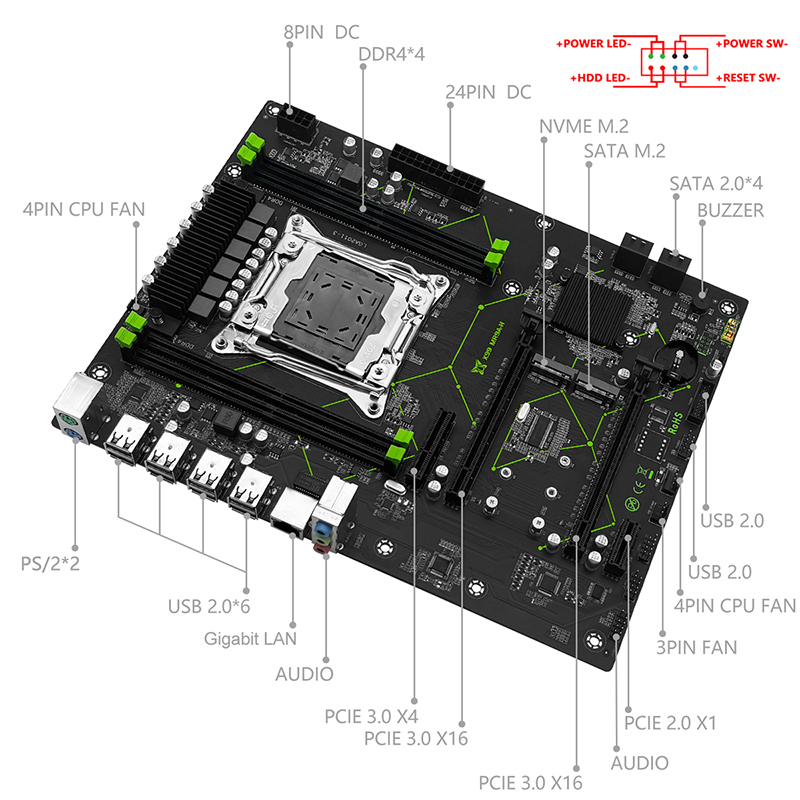

PCIE slots: PCleX16 slot x2,   PCleX1 slot x1，  PCleX4 slot x1

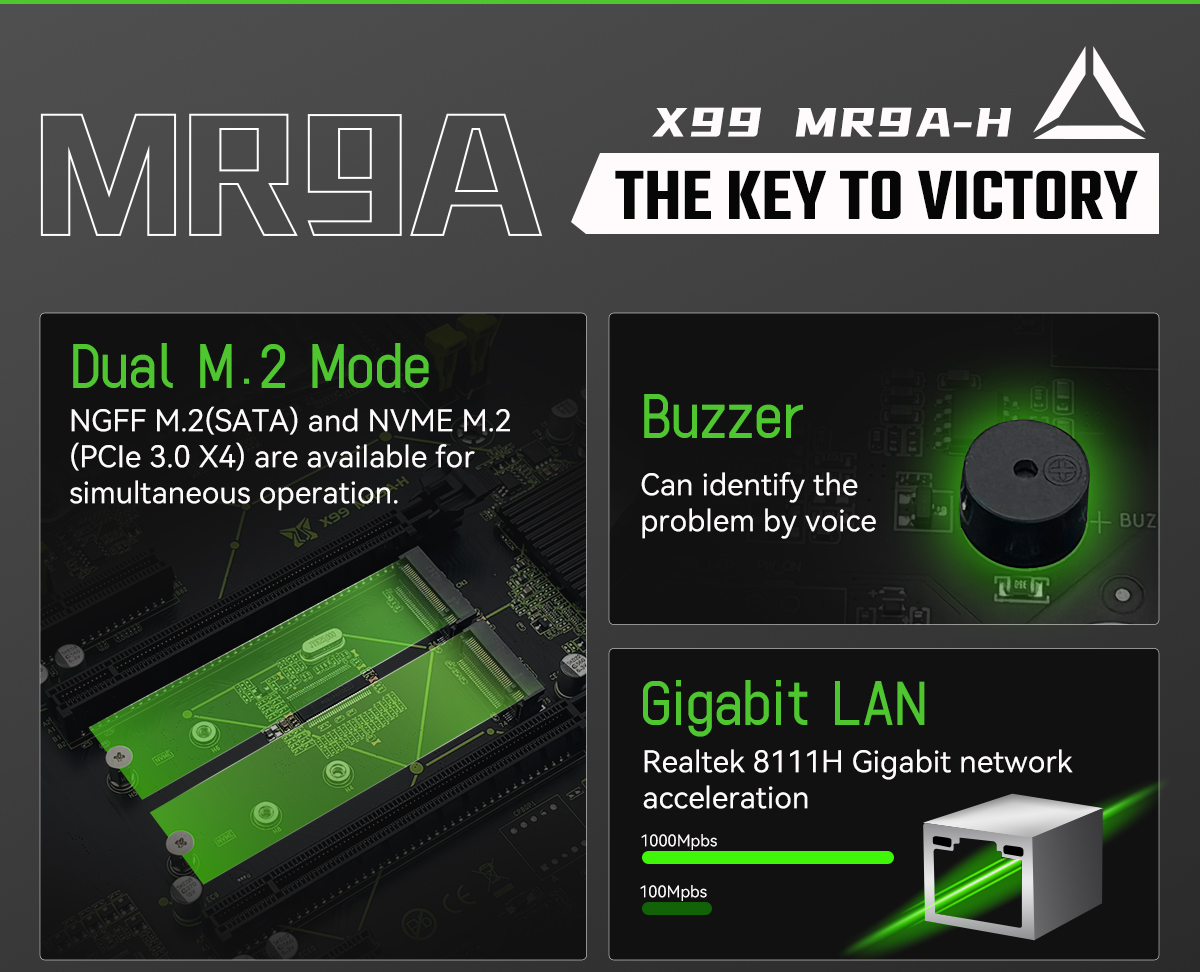

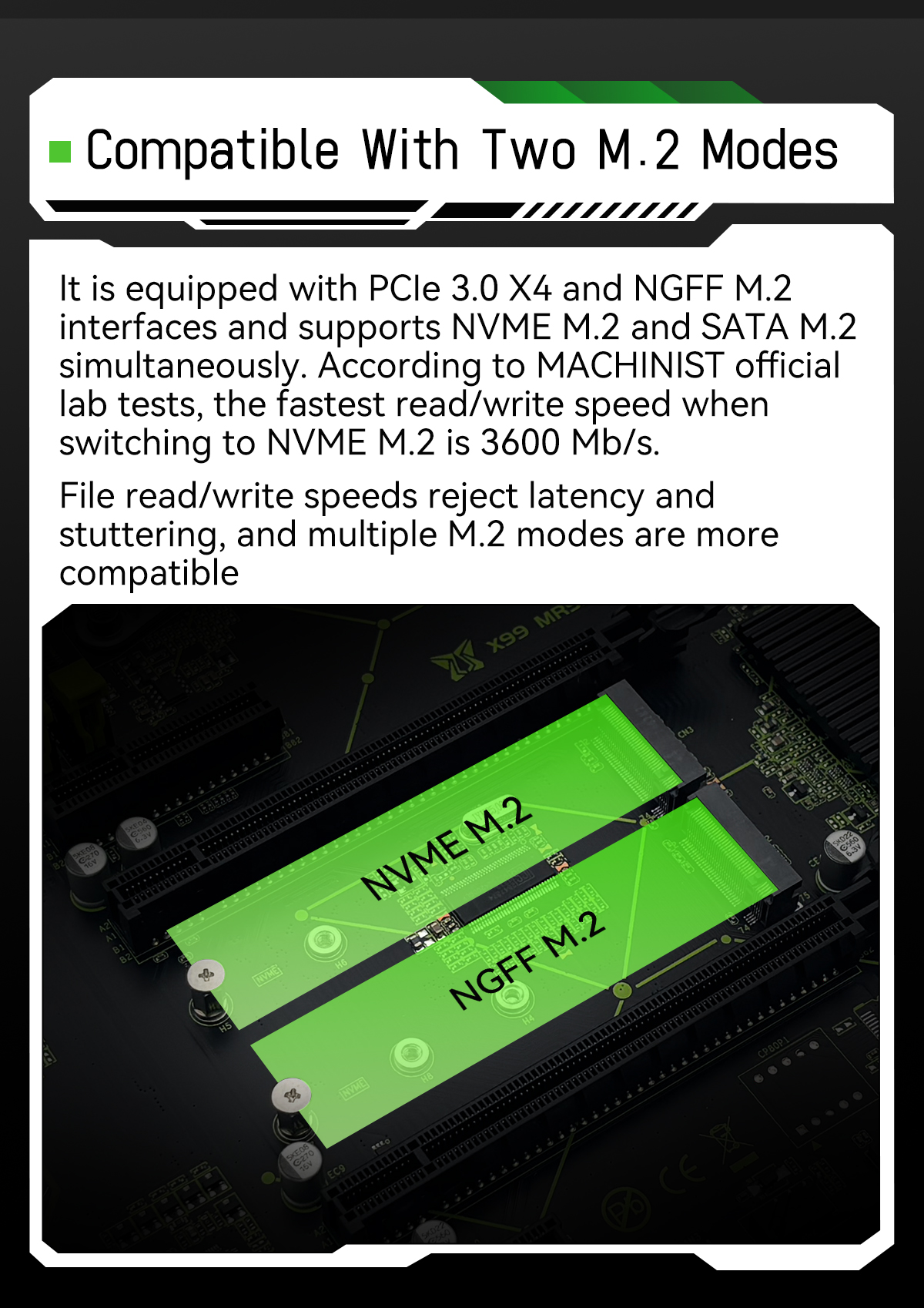

Storage ports: NVME(PCIE 3.0 X4) M.2 x1,   SATA(NGFF) M.2 x1，   SATA2.0 x4

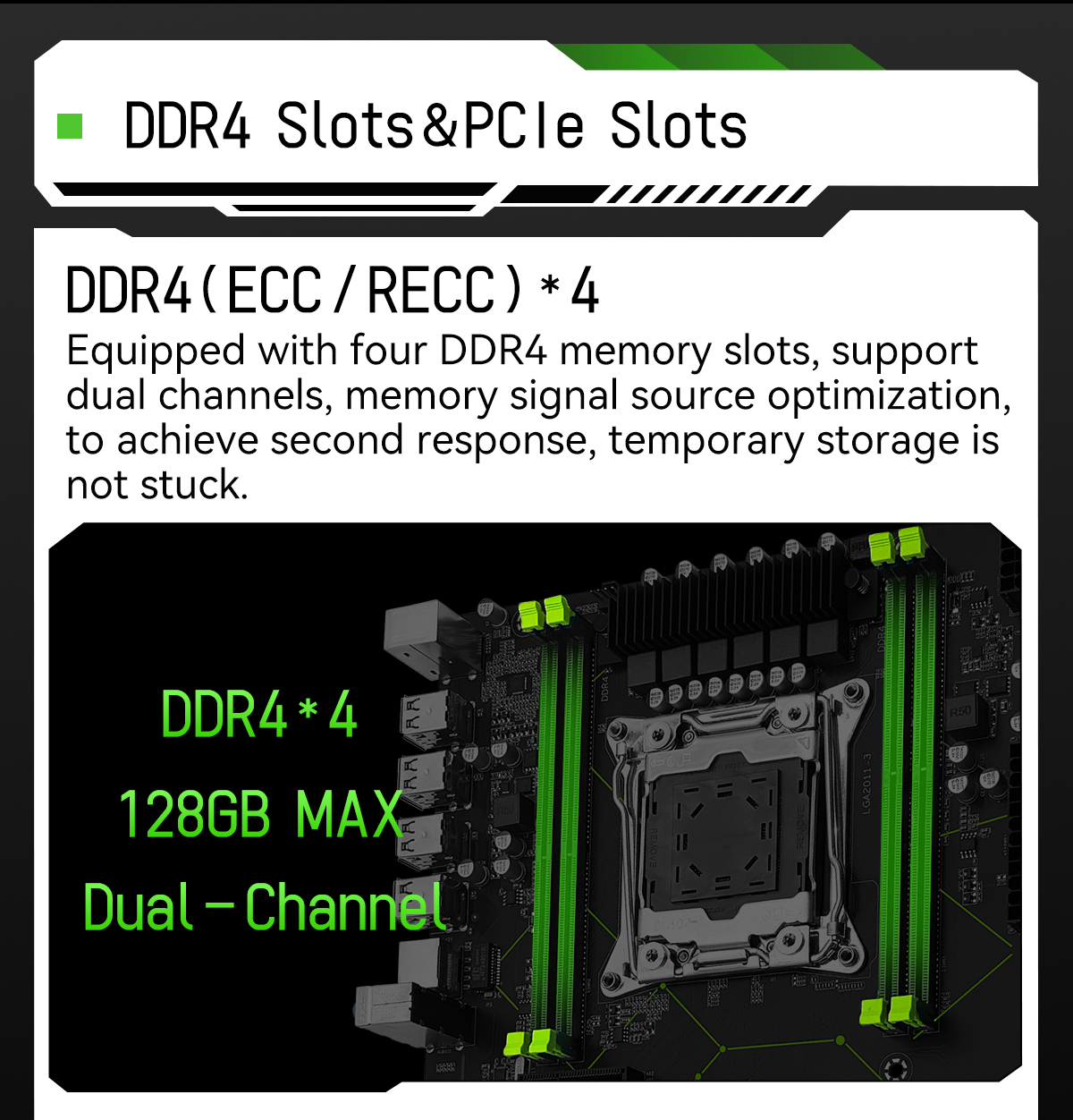

Memory slot: （ECC/RECC）DDR4 x4,   Two-channel,   (32G*4)128G MAX

Audio: Audio interface x2(front and rear),   Realtek ALC897 Hi-Fi Sound Card

Fan power supply ports: 3PIN System Fan x1,   4PIN System Fan x1，   4PIN CPU FAN x1

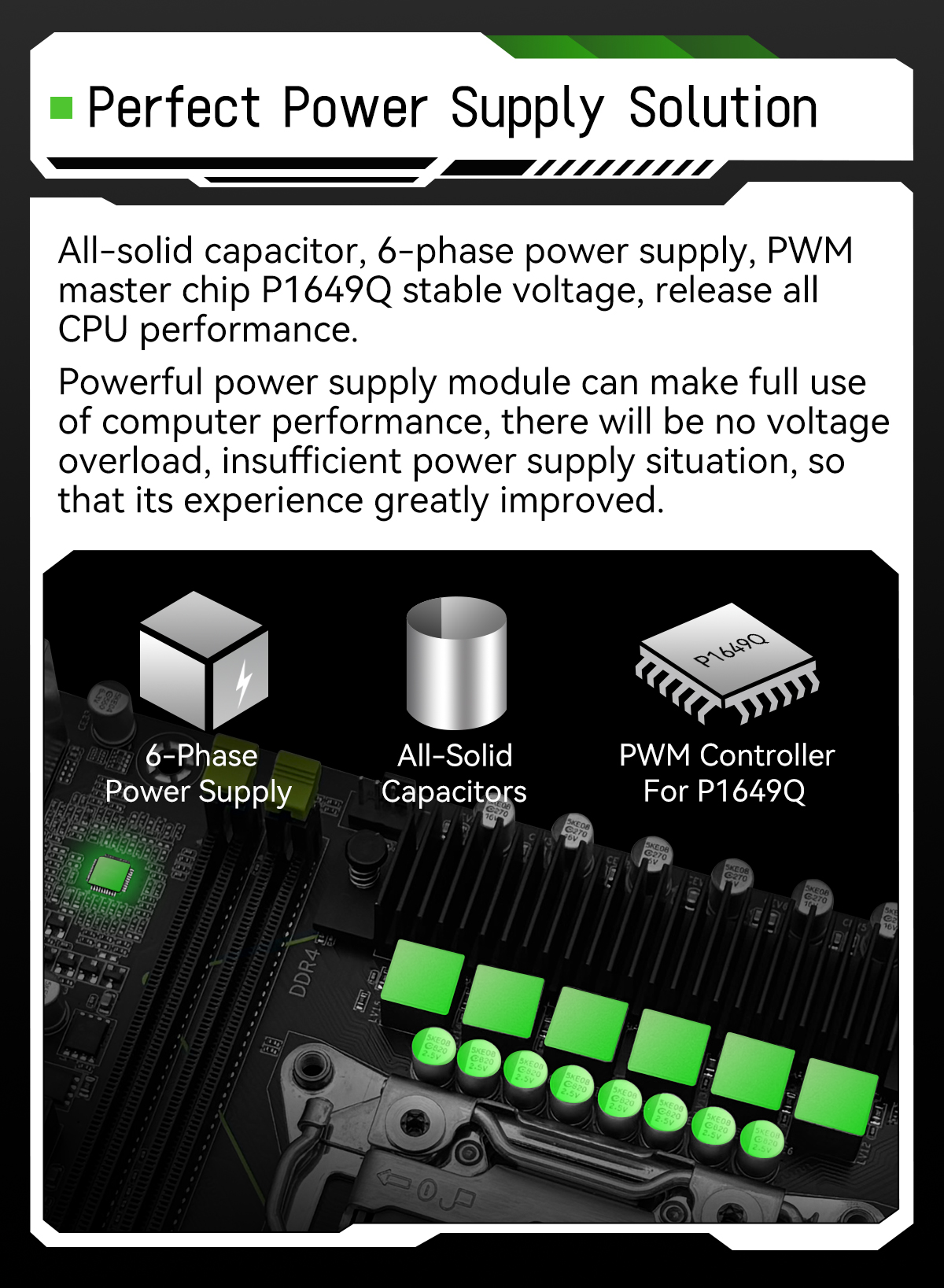

Power supply interface: 8PIN CPU powered x1,   24PIN Motherboard Power Supply x1

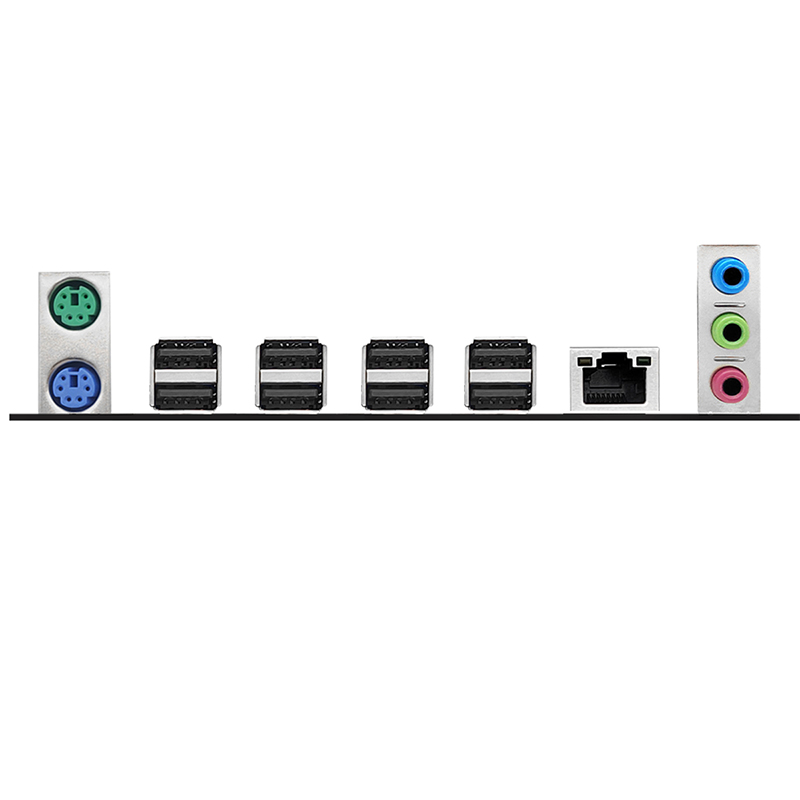

USB port: Rear USB2.0 x8,   Front USB2.0 x1/USB2.0 x1(3.0 appearance)

Network port: Realtek 8111H Gigabit network port

Functional interface: Buzzer
